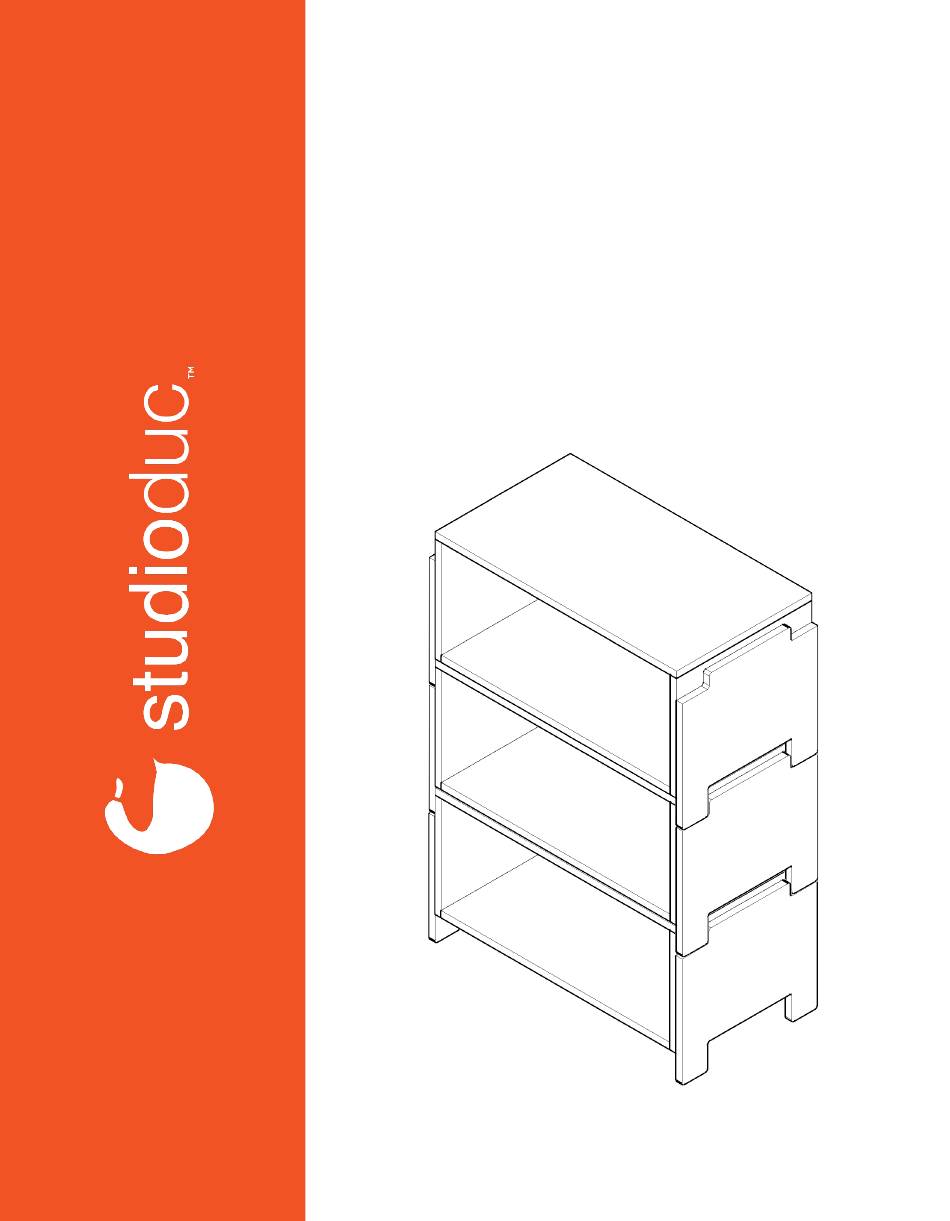

- Page 1 ASSEMBLY INSTRUCTIONS juno stacking toy cubby a how-to guide that won’t leave you in tears...
- Page 2 parenting is hard. this is easy. no really, it is. MADE HERE™ MADE WELL™ MADE SAFE MADE SMART...
- Page 3 want to watch this assembly IRL? (acronym challenged? that means “in real life”.) open the camera on your phone and place it over the QR code below to see our NYC studio dream team do all the heavy lifting (just kidding, there is none!) or go to ducducnyc.com/assembly-instructions...
- Page 4 thank you for selecting a studio duc product!
-
Page 5: Maintenance
please check contents against the components list in these instructions. also, please ensure there was no damage that may have occurred in shipping. if any components are missing or you find any damage, please contact ducduc before continuing. read all the instructions before use. pay close attention to the safety warnings in these instructions. -
Page 6: What's In The Box
WHAT’S IN THE BOX: L side panel R side panel back panel hammer cap bottom safety strap kit (with hardware) -
Page 7: What You'll Need
WHAT YOU’LL NEED: phillips head screwdriver household hammer or and/or drill with 6mm bit rubber mallet a soft surface to assemble on 15 minutes (like a rug or some of the corrugate (or less) box your piece arrived in) 2 people plus a dog for moral support (unless you’re a cat person) - Page 8 lean R side panel (A2) against a wall as shown. insert connectors of back panel (B) into slots on R side panel (A2). push down at the connection to lock into place.
- Page 9 insert connectors of back panel (B) into slots on L side panel (A1). push down at the connection to lock into place. have a friend gently flare L + R side panels (A1 + A2) outward as shown. still confused? scan this code to watch the assembly video!
- Page 10 with the side panels flared outward, insert connectors of bottom (C) into slots on R side panel (A2). insert remaining connectors of bottom (C) into slots on L side panel (A1). still confused? scan this code to watch the assembly video!
- Page 11 once all connectors and slots are lined up and side panels are back to square position, apply hammer cap (E) to the head of a household hammer and tap bottom (C) until it is flush with the backside of back panel (B). with a friend, flip partially assembled case into upright position.
- Page 12 before you move forward! the following instructions describe how to stack your toy cubby units and apply the safety strap if stacking two or more. if you will not be stacking your toy cubby units, you can stop here. place your stacking toy cubby unit in the area it will stay. do not try to move the unit once it has been stacked.
- Page 13 have a friend help you lift the second stacking toy storage on top of the first. make sure the notches in the legs are aligned with the grooves in the top of the unit below. duc insider tip! this modular toy storage has been designed to stack securely for the perfect fit.
- Page 14 safety strap installation the last step for your stacking toy cubby is to install the safety strap included in the box. reference the separate instructions enclosed in the envelope.
- Page 15 woohoo! you did it! give yourself a pat on the back, take a bow, or go house a pint of ice cream…we don’t judge.
- Page 16 prefer to talk to a human instead? we’re here for you! contact our customer advocate team below: 212.226.1868 quack@ducducnyc.com live chat at 200 lexington, no. 701 ducducnyc.com ny, ny 10016...
