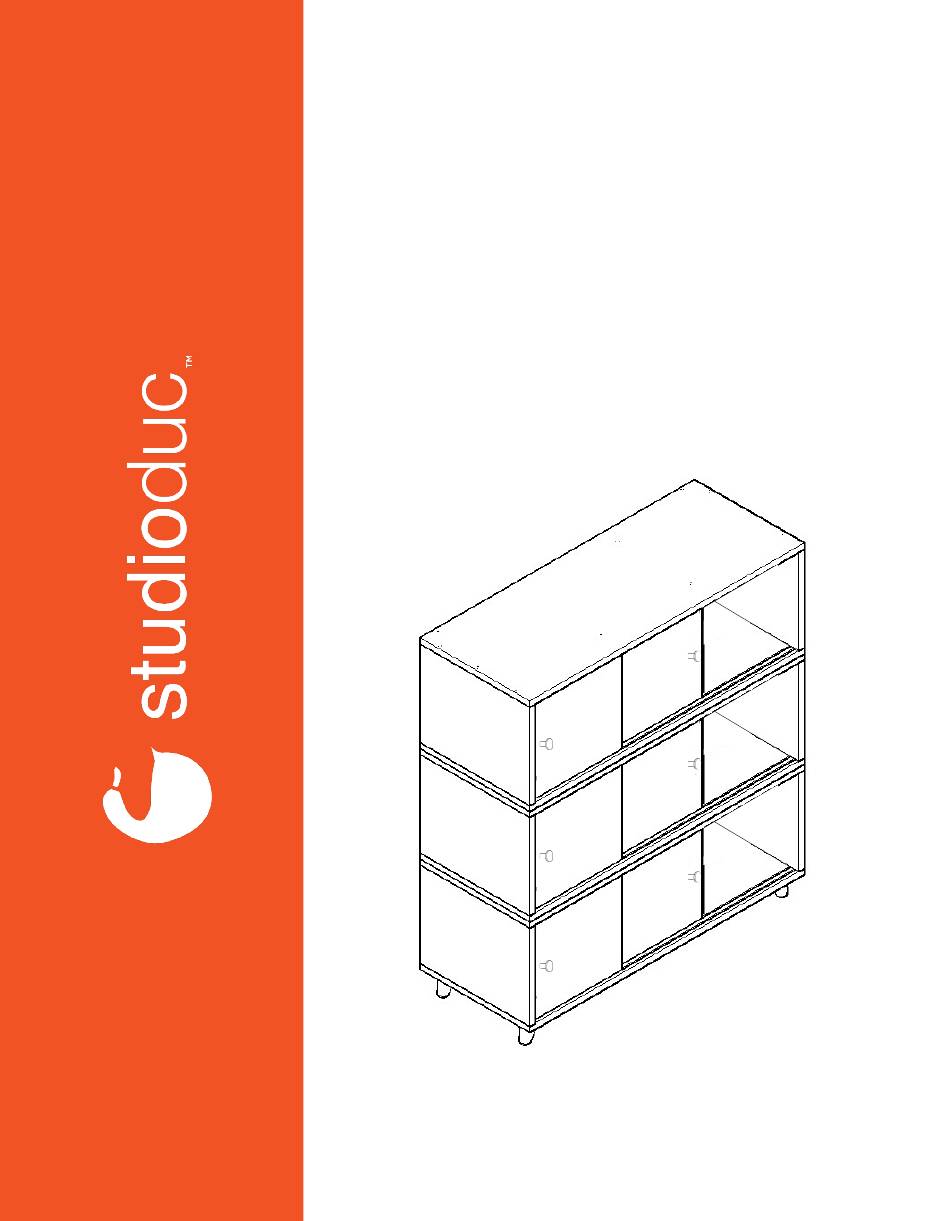

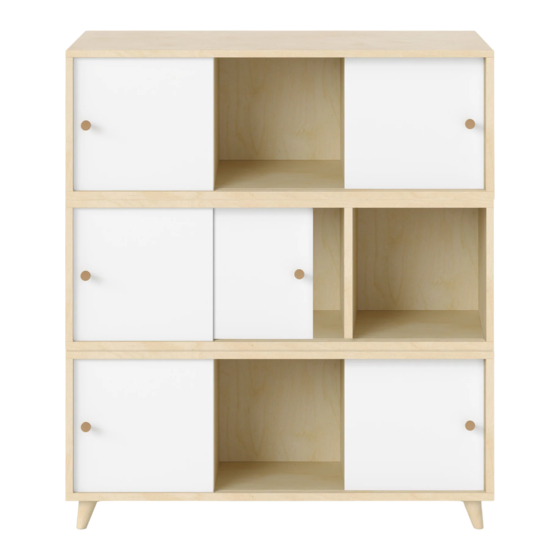

- Page 1 ASSEMBLY INSTRUCTIONS knox stacking toy storage a how-to guide that won’t leave you in tears...
- Page 2 parenting is hard. this is easy. no really, it is. MADE HERE™ MADE WELL™ MADE SAFE MADE SMART...
- Page 3 want to watch this assembly IRL? (acronym challenged? that means “in real life”.) open the camera on your phone and place it over the QR code below to see our NYC studio dream team do all the heavy lifting (just kidding, there is none!) if you’re already using your phone, just click the orange button below! ASSEMBLY VIDEO CHANNEL...
- Page 4 thank you for selecting a studio duc product!
-
Page 5: Maintenance
please check contents against the components list in these instructions. also, please ensure there was no damage that may have occurred in shipping. if any components are missing or you find any damage, please contact ducduc before continuing. read all the instructions before use. pay close attention to the safety warnings in these instructions. -
Page 6: What's In The Box
WHAT’S IN THE BOX: E (x2) R side panel L side panel center partition F (x2) door back panel G (x4) foot bottom... - Page 7 WHAT’S IN THE BOX: H (x2) I (x2) knox pull hardware screw for knox pull hammer cap K (x2) L (x8) M (x8) tray bracket JCB bolt washer (20mm) allen key safety strap kit (4mm) (with hardware)
-
Page 8: What You'll Need
WHAT YOU’LL NEED: phillips head screwdriver household hammer or and/or drill with 6mm bit rubber mallet a soft surface to assemble on 20 minutes (like a rug or some of the corrugate (or less) box your piece arrived in) 2 people plus a dog for moral support (unless you’re a cat person) - Page 9 lean bottom (C) against a wall as shown. beginning in one corner, take one foot (G) as seen below, and insert the bolt located on foot (G) into the brackets on bottom panel (C). Twist until the foot is fully secure, and repeat for all feet (G) provided.
- Page 10 lean R side panel (A1) against a wall as shown. insert connectors on back panel (B) into slots on R side panel (A1). push down at the connection to lock into place. if needed, use hammer with hammer cap (J) to tap until secure.
- Page 11 insert connectors on back panel (B) into slots on remaining L side panel (A2). push down or tap with hammer + hammer cap (J) at the connection to lock into place. ASSEMBLY VIDEO CHANNEL still confused? click to watch the assembly video...
- Page 12 gently lay the partially assembled case on its back. wait! locate bottom panel (C) with attached feet (H) before moving on to the next step. ASSEMBLY VIDEO CHANNEL still confused? click to watch the assembly video...
- Page 13 insert connectors on both side panels (A1 + A2) into slots on bottom panel (C). push down or tap with hammer and hammer cap (J) to lock into place. ASSEMBLY VIDEO CHANNEL still confused? click to watch the assembly video...
- Page 14 lower both center partitions (E) into the partially assembled case. insert connectors on center partitions (E) into the remaining slots on bottom panel (C). push down or tap with hammer and hammer cap (J) to lock into place. ASSEMBLY VIDEO CHANNEL still confused? click to watch the assembly video...
- Page 15 flip partially assembled case into upright position. line up holes of top (D) with the connectors of side panels (A1 + A2), center partitions (E) and back panel (B). tap with hammer and hammer cap (J) to lock into place. ASSEMBLY VIDEO CHANNEL still confused? click to watch the assembly video...
- Page 16 using a phillips screwdriver and screw (I), attach the pull hardware (H) to the door panel (F). repeat step 12 for remaining door (F). ASSEMBLY VIDEO CHANNEL still confused? click to watch the assembly video...
- Page 17 slightly angle one door panel (F) into the case as shown below. Insert the door upward into the track closest to the back of the case. then, allow the door to drop down into the same track on the bottom panel (C). to confirm that it is installed correctly, just try sliding the door side to side.
- Page 18 slightly angle the remaining door panel (F) into the case as shown below. Insert the door upward into the track closest to the front of the case. then, allow the door to drop down into the same track on the bottom panel (C). to confirm that it is installed correctly, just try sliding the door side to side.
- Page 19 before you move on! the following instructions describe how to stack your toy storage units and apply the safety strap if stacking two or more. if you will not be stacking your toy storage units, you can stop here.
- Page 20 in order to stack these storage units, you’ll need to remove the leg brackets on the under- side of bottom panel (C). using your philips head screw driver, remove all leg brackets. ASSEMBLY VIDEO CHANNEL still confused? click to watch the assembly video...
- Page 21 now that your leg brackets have been removed, repeat steps 3-13 to build your remaining storage units that you’d like to stack. place your first toy storage unit (with legs attached) in the area it will stay. do not try to move the unit once it has been stacked.
- Page 22 starting at one side, place square bracket (K) over the holes on the back of each storage unit. secure into place using the allen key (N) to screw in hardware (M+L) as arranged in the picture. then, repeat on the remaining side. CT-1 CT-4 CT-3...
- Page 23 repeat step 19 if you have a remaining toy storage unit that you would like to stack. please note: we only recommend stacking 3 units at once. ASSEMBLY VIDEO CHANNEL still confused? click to watch the assembly video...
- Page 24 safety strap installation the last step for your stacking toy storage is to install the safety strap included in the box. reference the separate instructions enclosed in the envelope. safety strap kit...
- Page 25 yippee! you did it! give yourself a pat on the back, take a bow, or go house a pint of ice cream…we don’t judge.
- Page 26 prefer to talk to a human instead? we’re here for you! contact our customer advocate team below: 212.226.1868 quack@ducducnyc.com live chat at 200 lexington ave ducducnyc.com ny, ny 10016...
