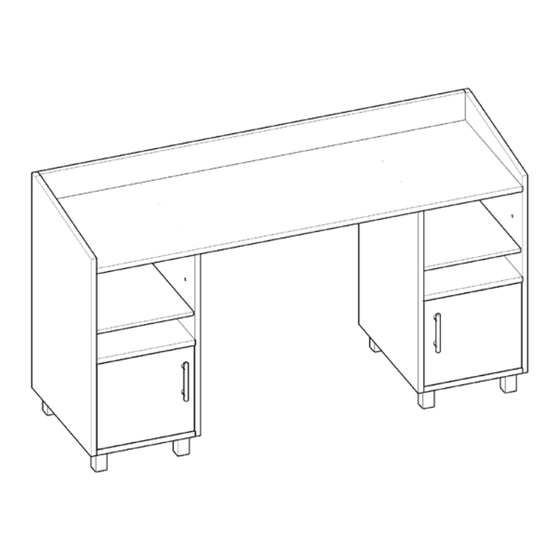

  • Page 1 ASSEMBLY INSTRUCTIONS indi doublewide desk a how-to guide that won’t leave you in tears...
  • Page 2 parenting is hard. this is easy. no really, it is. MADE HERE™ MADE WELL™ MADE SAFE MADE SMART...
  • Page 3 want to watch this assembly IRL? (acronym challenged? that means “in real life”.) open the camera on your phone and place it over the QR code below to see our NYC studio dream team do all the heavy lifting (just kidding, there is none!) or go to ducducnyc.com/pages/assembly-instructions...
  • Page 4 thank you for selecting a studio duc product!
  • Page 5 please check contents against the components list in these instructions. also, please ensure there was no damage that may have occurred in shipping. if any components are missing or you find any damage, please contact ducduc before continuing. read all the instructions before use. pay close attention to the safety warnings in these instructions.

  • Page 6: What's In The Box

    L case interior side R case fixed shelf R case door L case fixed shelf L case door J (x6) K (x2) L (x4) M (x8) allen key (4mm) hammer cap screw for bracket indi pull screw for indi pull shelf pin...

  • Page 7: What You'll Need

    WHAT YOU’LL NEED: household hammer or phillips head screwdriver and/or rubber mallet drill with 6mm bit 20 minutes a soft surface to assemble on (or less) (like a rug or some of the corrugate box your piece arrived in) 2 people plus a dog for moral support (unless you’re a cat person)
  • Page 8 lean one bottom (C) against a wall as shown. using the provided allen key (H) and JCB bolts (G x4), attach feet (F x4) to bottom (C). once all feet are securely attached, set the assembled base aside. important! be sure the JBC bolts are attached to the side of the bottom panel WITH the countersink holes.
  • Page 9 lean R case exterior side (RC1) against a wall as shown. insert connectors on one back panel (E) into the 3 bottom slots on R case exterior side (RC1) as shown. push down at the connection to lock into place. important! the top slot on the side panel will...
  • Page 10 insert connectors on back panel (E) into slots on R case interior side (RC2). push down at the connection to lock into place. have a friend gently flare R case exterior + interior sides (RC1 + RC2) outward as shown. still confused? scan this code to watch the assembly video!
  • Page 11 with the sides flared outward, insert the connectors of one side of bottom (C) and R case fixed shelf (RC3) into slots on R case interior side (RC2). important! when inserting the fixed shelf, be sure the magnetic catch hardware is diagonal to the hinge hardware on the case interior...
  • Page 12 once all connectors and slots are lined up and case sides are back to square position, apply hammer cap (I) to the head of a household hammer and tap bottom (C) and fixed shelf (RC3) until there is no gap at the connection to back panel (E). repeat steps 1-6 to create the second case from the remaining parts.
  • Page 13 lean desktop (B) against the wall with the slots facing out. insert connectors on desktop back (A) into slots on desktop (B). use hammer with hammer cap (I) to lock into place. duc insider tip! if you’re having trouble locking in A to B all the way, tilt the partially assembled piece as shown so the connector...
  • Page 14 place both cases in the location where the desk will be fully assembled with the cases spaced 60” apart. with a friend, lift assembled desktop (A + B) and first line up connectors on the desktop back (A) with the slots on both case side exteriors (RC1 + LC1). next, line up connectors on both case interior sides (RC2 +LC2 ) with the holes on the underside of desktop (B).
  • Page 15 (L), attach indi pull hardware (K) to the front of both doors (RC4 + LC4). still confused? scan this code to watch the assembly video!
  • Page 16 attach L door (LC4) to L case exterior side (LC1) by lining up the hardware and firmly pushing on it until it clicks into place. important! be sure the hardware is in extended position as shown. you will hear an audible click when the connection is made.
  • Page 17 insert 4 shelf pins (M) into holes on both R case sides (RC1 + RC2) at desired height. place adjustable shelf (D) on top of 4 shelf pins (M) so it sits secure and level. still confused? scan this code to watch the assembly video!
  • Page 18 use steps 16a + 16b to install the remaining adjustable shelf (D) on the L case. still confused? scan this code to watch the assembly video!
  • Page 19 bravo! you did it! give yourself a pat on the back, take a bow, or go house a pint of ice cream…we don’t judge.
  • Page 20 prefer to talk to a human instead? we’re here for you! contact our customer advocate team below: 212.226.1868 quack@ducducnyc.com live chat at 200 lexington, no. 701 ducducnyc.com ny, ny 10016...
