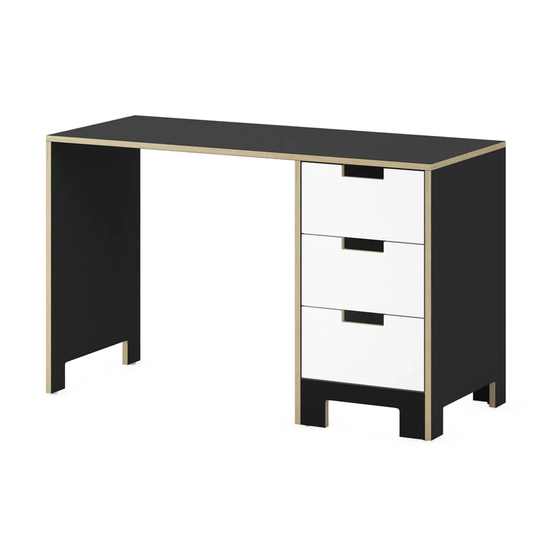

ASSEMBLY INSTRUCTIONS
juno desk
a how-to guide that won't leave you in tears

Advertisement

loading
Need help?

Need help?

Do you have a question about the juno desk and is the answer not in the manual?

Questions and answers

Related Manuals for studioduc juno desk

Summary of Contents for studioduc juno desk

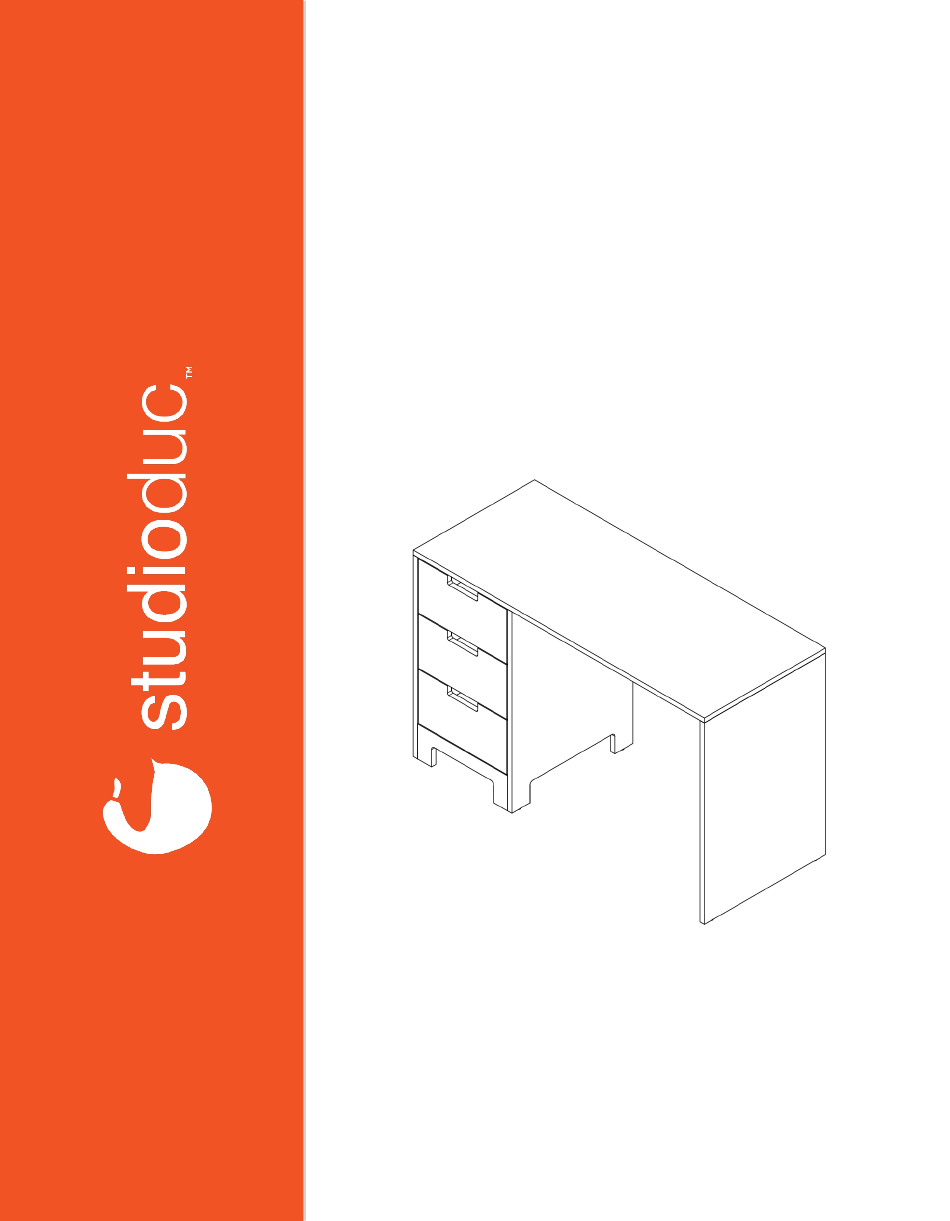

  • Page 1 ASSEMBLY INSTRUCTIONS juno desk a how-to guide that won’t leave you in tears...
  • Page 2 parenting is hard. this is easy. no really, it is. MADE HERE™ MADE WELL™ MADE SAFE MADE SMART...
  • Page 3 want to watch this assembly IRL? (acronym challenged? that means “in real life”.) open the camera on your phone and place it over the QR code below to see our NYC studio dream team do all the heavy lifting (just kidding, there is none!) or go to ducducnyc.com/assembly-instructions...
  • Page 4 thank you for selecting a studio duc product!
  • Page 5 please check contents against the components list in these instructions. also, please ensure there was no damage that may have occurred in shipping. if any components are missing or you find any damage, please contact ducduc before continuing. read all the instructions before use. pay close attention to the safety warnings in these instructions.

  • Page 6: What's In The Box

    WHAT’S IN THE BOX: stretcher bottom panel R side panel L side panel DB1 (x3) drawer face hammer cap DB2 (x3) drawer box back G (x9) screws back panel leg panel w/ attached brackets DB3 (x3) DB4 (x3) L drawer box side R drawer box side DB5 (x3) desktop...

  • Page 7: What You'll Need

    WHAT YOU’LL NEED: phillips head screwdriver household hammer or and/or drill with 6mm bit rubber mallet a soft surface to assemble on 15 minutes (like a rug or some of the corrugate (or less) box your piece arrived in) 2 people plus a dog for moral support (unless you’re a cat person)
  • Page 8 lean desktop (H) against a wall with the holes facing away from wall as shown. line up connectors on leg panel (E) with holes on underside of desktop (H) and push together until there is no gap at the connection. then, use screws (G) and your phillips head screwdriver to secure leg panel (E) to desktop (H) using the attached brackets and pre- drilled holes.
  • Page 9 lean R side panel (A1) against a wall as shown. insert connectors on back panel (D) into slots on R side panel (A1). push down at the connection to lock into place. still confused? scan this code to watch the assembly video!
  • Page 10 insert connectors of back panel (D) into slots on L side panel (A2). push down at the connection to lock into place. have a friend gently flare R + L side panels (A1 + A2) outward as shown. still confused? scan this code to watch the assembly video!
  • Page 11 with the side panels flared outward, insert the connectors of one side of bottom panel (C) into slots on R side panel (A1). insert remaining connectors of bottom panel (C) into slots on L side panel (A2). still confused? scan this code to watch the assembly video!
  • Page 12 once all connectors and slots are lined up and side panels are back to square position, apply hammer cap (F) to the head of a household hammer and tap bottom panel (C) until there is no gap at the connection to back panel (D). insert the connectors of stretcher (B) into slots on both side panels (A1 + A2).
  • Page 13 with a friend, flip partially assembled case into upright position and place in location where the desk will be fully assembled. now we build the drawers! starting with drawer face (DB1) facing down, insert connectors of both drawer box side panels (DB3 + DB4) into slots on drawer face (DB1). push down at the connections to lock into place.
  • Page 14 rotate the partially assembled drawer box as shown. slide drawer box bottom (DB5) into place using grooves on the drawer box side panels (DB3 + DB4) as guides. be sure glide hardware on bottom panel (DB5) is positioned outside the drawer interior and toward the drawer face (DB1) as shown.
  • Page 15 build remaining (2) drawers using steps 9a, 9b, and 9c. starting at the top, pull drawer glides out to extended position as shown. still confused? scan this code to watch the assembly video!
  • Page 16 place one assembled drawer box onto extended glides as shown. from underside of drawer, use hands to pull each glide forward until it locks into connection with glide hardware attached to drawer box bottom (DB5). the drawer will be secure when you hear a click on each connection.
  • Page 17 decision.

  • Page 18: Left Side

    LEFT SIDE: with a friend, lift assembled desktop (H) and leg panel (E) and insert connectors of case sides (A1 +A2) into holes on underside of desktop (H). push down firmly to lock into place. RIGHT SIDE: with a friend, lift assembled desktop (H) and leg panel (E) and insert connectors of case sides (A1 +A2) into holes on underside of desktop (H).
  • Page 19 finito! you did it! give yourself a pat on the back, take a bow, or go house a pint of ice cream…we don’t judge.
  • Page 20 prefer to talk to a human instead? we’re here for you! contact our customer advocate team below: 212.226.1868 quack@ducducnyc.com live chat at 200 lexington, no. 701 ducducnyc.com ny, ny 10016...
