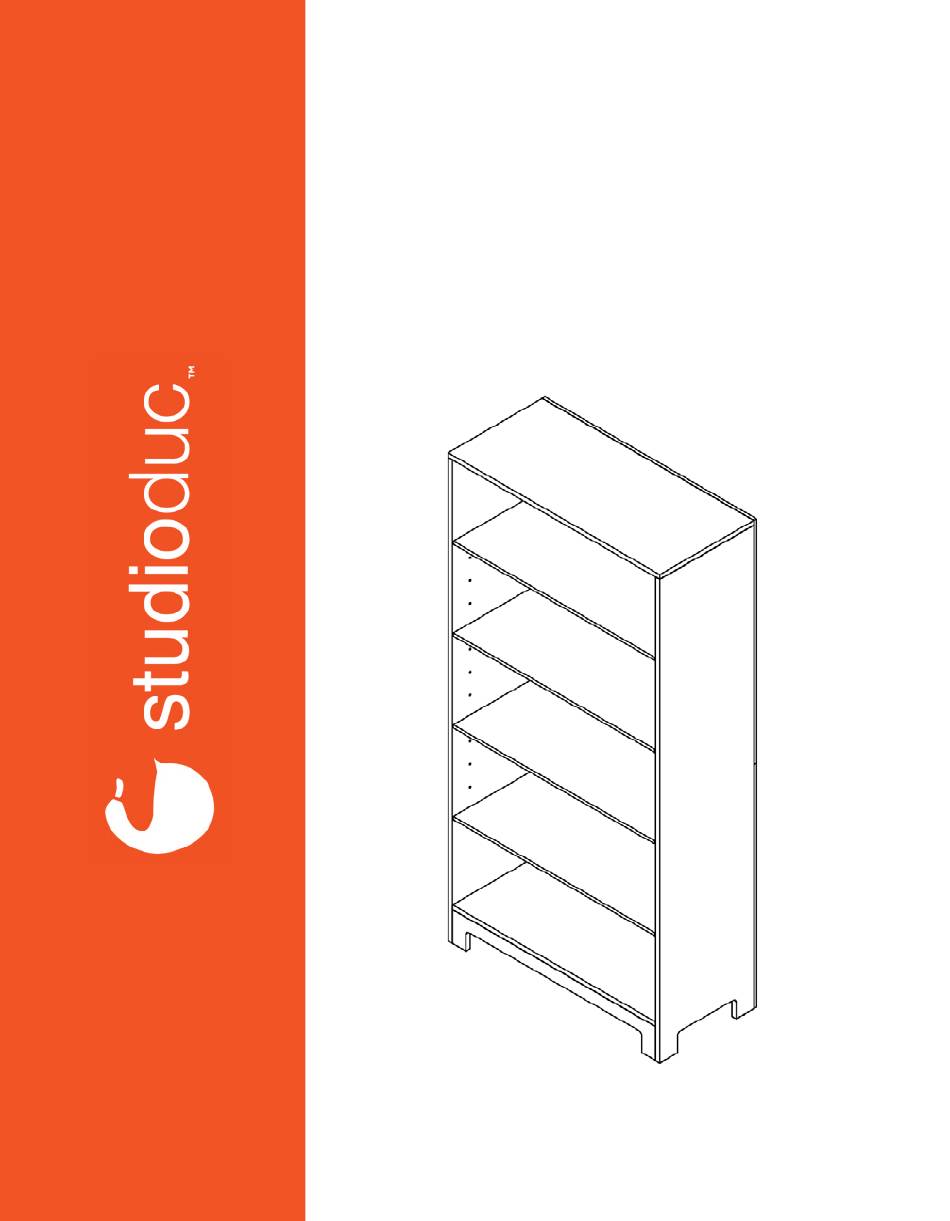

- Page 1 ASSEMBLY INSTRUCTIONS juno tall bookcase a how-to guide that won’t leave you in tears...
- Page 2 parenting is hard. this is easy. no really, it is. MADE HERE™ MADE WELL™ MADE SAFE MADE SMART...
- Page 3 want to watch this assembly IRL? (acronym challenged? that means “in real life”.) open the camera on your phone and place it over the QR code below to see our NYC studio dream team do all the heavy lifting (just kidding, there is none!) or go to ducducnyc.com/pages/assembly-instructions...
- Page 4 thank you for selecting a studio duc product!
-
Page 5: Maintenance
please check contents against the components list in these instructions. also, please ensure there was no damage that may have occurred in shipping. if any components are missing or you find any damage, please contact ducduc before continuing. read all the instructions before use. pay close attention to the safety warnings in these instructions. -
Page 6: What's In The Box
WHAT’S IN THE BOX: safety strap kit (with hardware) back panel top H (x16) shelf pins R side panel L side panel hammer cap stretcher back panel bottom J (x28) dowel pins F (x4) adjustable shelves bottom... -
Page 7: What You'll Need
WHAT YOU’LL NEED: phillips head screwdriver household hammer or and/or drill with 6mm bit rubber mallet a soft surface to assemble on 10 minutes (like a rug or some of the corrugate (or less) box your piece arrived in) 2 people plus a dog for moral support (unless you’re a cat person) - Page 8 before you begin! grab your household hammer and locate the parts listed below. hammer cap J (x28) dowel pins R side panel L side panel then, follow the instructions below. once completed and all dowel pins are secured, move on to step 1! •...
- Page 9 lean R side panel (A1) against a wall with the holes facing away from wall and connectors facing upward as shown. insert connectors of bottom panel (E) into slots on R side panel (A1) and push down at the connection to lock into place. still confused? scan this code to watch the assembly video!
- Page 10 insert remaining connectors of bottom panel (E) into slots on L side panel (A2), and push down at the connection to lock into place. insert connectors of both side panels (A1 + A2) into holes on underside of top panel (D).
- Page 11 with a friend, rotate the partially assembled case as shown. insert connectors of both side panels (A1 + A2) into holes on back panel top (B1). tap with hammer and hammer cap (I) until fully in place. insert connectors of both side panels (A1 + A2) into holes on back panel bottom (B2). tap with hammer and hammer cap (I) until fully in place.
- Page 12 insert connectors of stretcher (C) into slots on both side panels (A1 + A2). tap stretcher (C) with hammer and hammer cap (I) until fully in place. with a friend, rotate the assembled case into upright position, as shown. still confused? scan this code to watch the assembly video!
- Page 13 insert 16 shelf pins (H) into holes on interiors of both side panels (A1 + A2) at desired locations. place 1 adjustable shelf (F) on top of 4 shelf pins (H) so each shelf sits secure and level. still confused? scan this code to watch the assembly video!
- Page 14 safety strap installation the last step for your tall bookcase is to install the safety strap included in the box. reference the separate instructions enclosed in the envelope. still confused? scan this code to watch the assembly video!
- Page 15 congrats! you did it! give yourself a pat on the back, take a bow, or go house a pint of ice cream…we don’t judge.
- Page 16 prefer to talk to a human instead? we’re here for you! contact our customer advocate team below 212.226.1868 quack@ducducnyc.com live chat at 200 lexington ave, ducducnyc.com ny, ny 10016...
