ASSEMBLY INSTRUCTIONS

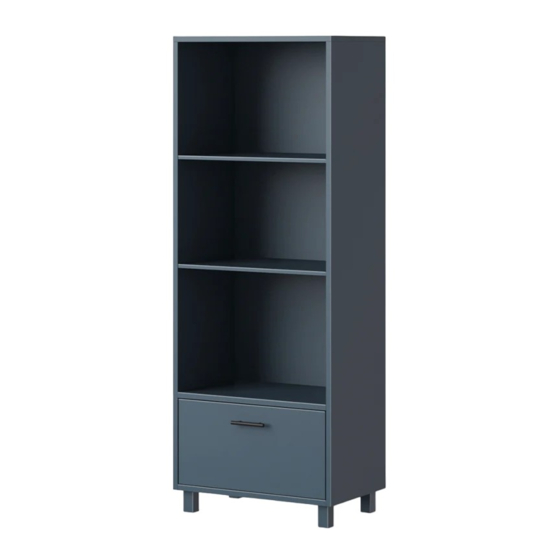

indi tall bookcase
a how-to guide that won't leave you in tears

Advertisement

loading
Need help?

Need help?

Do you have a question about the indi and is the answer not in the manual?

Questions and answers

Related Manuals for studioduc indi

Summary of Contents for studioduc indi

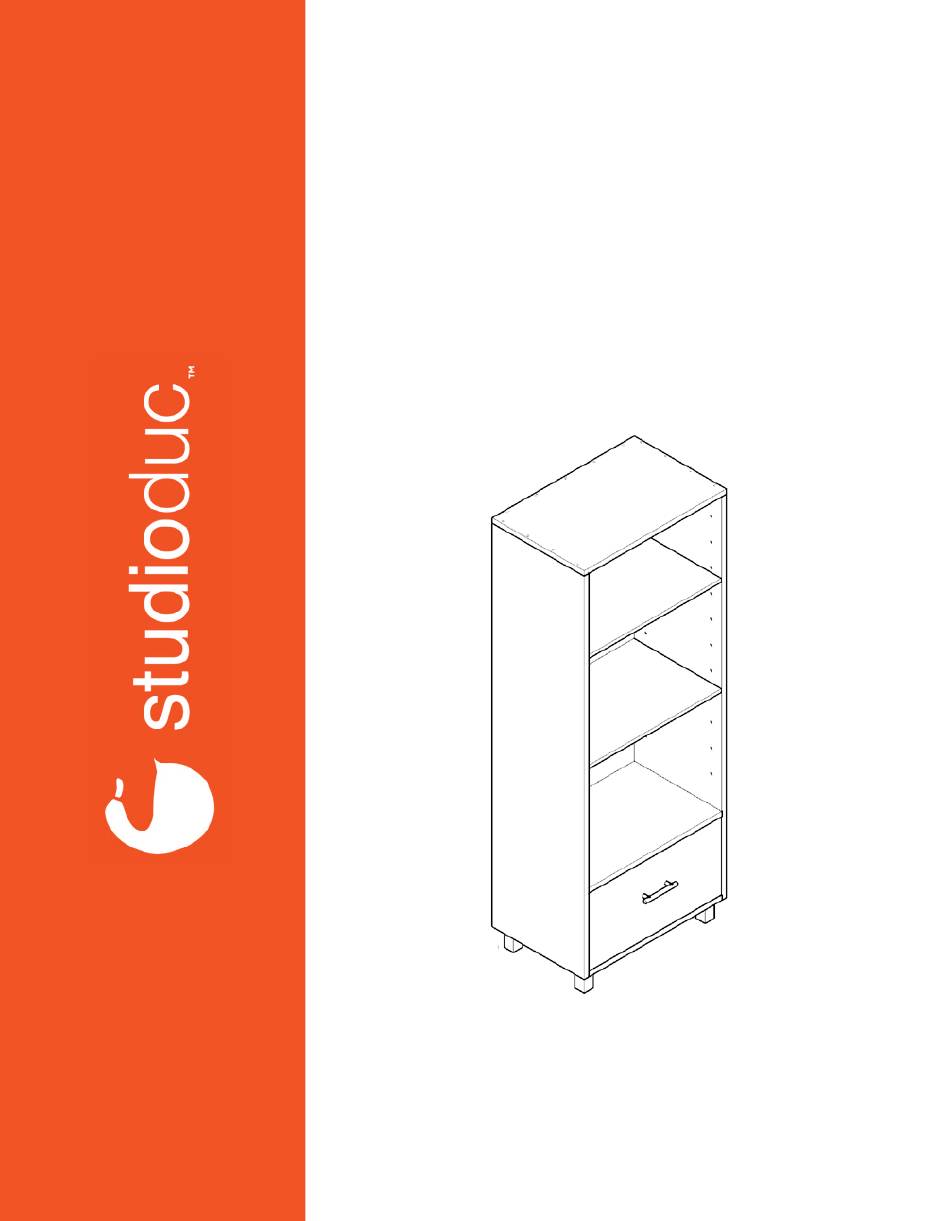

  • Page 1 ASSEMBLY INSTRUCTIONS indi tall bookcase a how-to guide that won’t leave you in tears...
  • Page 2 parenting is hard. this is easy. no really, it is. MADE HERE™ MADE WELL™ MADE SAFE MADE SMART...
  • Page 3 want to watch this assembly IRL? (acronym challenged? that means “in real life”.) open the camera on your phone and place it over the QR code below to see our NYC studio dream team do all the heavy lifting (just kidding, there is none!) or go to ducducnyc.com/pages/assembly-instructions...
  • Page 4 thank you for selecting a studio duc product!

  • Page 5: Maintenance

    please check contents against the components list in these instructions. also, please ensure there was no damage that may have occurred in shipping. if any components are missing or you find any damage, please contact ducduc before continuing. read all the instructions before use. pay close attention to the safety warnings in these instructions.

  • Page 6: What's In The Box

    R drawer box side R side L side back drawer box bottom bottom fixed shelf DB7 (x2) indi pull screw for indi pull F (x2) adjustable shelf M (x13) dowel pins G (x4) H (x4) J (x8) foot JCB bolt (25mm)

  • Page 7: What You'll Need

    WHAT YOU’LL NEED: household hammer or phillips head screwdriver rubber mallet 20 minutes a soft surface to assemble on (or less) (like a rug or some of the corrugate box your piece arrived in) 2 people plus a dog for moral support (unless you’re a cat person)
  • Page 8 before you begin! grab your household hammer and locate the parts listed below. dowel pins hammer cap R side L side back then, follow the instructions below. once completed and all dowel pins are secured, move on to step 1! •...
  • Page 9 lean bottom (C) against a wall as shown. using the provided allen key (I) and JCB bolts (H), attach feet (G) to bottom (C). once all feet are securely attached, set the assembled base aside. important! duc insider tip! be sure the JBC bolts are be sure the edges of the attached to the side of the feet are square to the...
  • Page 10 lean L side (A2) against a wall as shown. insert connectors on back (B) into slots on L side (A2). push down at the connection to lock into place. still confused? scan this code to watch the assembly video!
  • Page 11 insert connectors on back (B) into slots on R side (A1). push down at the connection to lock into place. gently lay the partially assembled case on its back and have a friend gently flare the sides (A1 + A2) outward as shown. still confused? scan this code to watch the assembly video!
  • Page 12 with the side panels flared outward, insert connectors of assembled base (C + G) and fixed shelf (D) into slots on L side (A2). still confused? scan this code to watch the assembly video!
  • Page 13 insert remaining connectors on assembled base (C + G) and fixed shelf (D) into slots on R side (A1). once all connectors and slots are lined up and side panels are back to square position, use your hammer with hammer cap (K) and tap bottom (C) and fixed shelf (D) until there is no gap at the connection to back (B).
  • Page 14 rotate the case into upright position. line up the connectors on both sides (A1 + A2) and back (B) with the holes on the underside of top (E). use hammer with hammer cap (K) to tap top (E) until there is no gap at the connection to the sides (A1 + A2) and back (B). now we build the drawer! starting with drawer face (DB1) facing down, insert connectors of both drawer box side panels (DB3 + DB4) into slots on drawer face (DB1).
  • Page 15 rotate the partially assembled drawer box as shown. slide drawer box bottom (DB5) into place using grooves on the drawer box side panels (DB3 + DB4) as guides. be sure glide hardware on bottom panel (DB5) is positioned outside the drawer interior and toward the drawer face (DB1) as shown.
  • Page 16 using a phillips screwdriver and screws (DB7), attach the pull hardware (DB6) to the front of the drawer face. pull drawer glides out to extended position as shown. still confused? scan this code to watch the assembly video!
  • Page 17 place the assembled drawer box onto extended glides as shown. from underside of drawer, use hands to pull each glide forward until it locks into connection with glide hardware attached to drawer box bottom (DB5). the drawer will be secure when you hear a click on each connection.
  • Page 18 one at a time, place adjustable shelf (F) on top of 4 shelf pins (J) so it sits secure and level. safety strap installation the last step for your tall bookcase is to install the safety strap included in the box.
  • Page 19 woohoo! you did it! give yourself a pat on the back, take a bow, or go house a pint of ice cream…we don’t judge.
  • Page 20 prefer to talk to a human instead? we’re here for you! contact our customer advocate team below: 212.226.1868 quack@ducducnyc.com live chat at 200 lexington ave ducducnyc.com ny, ny 10016...
