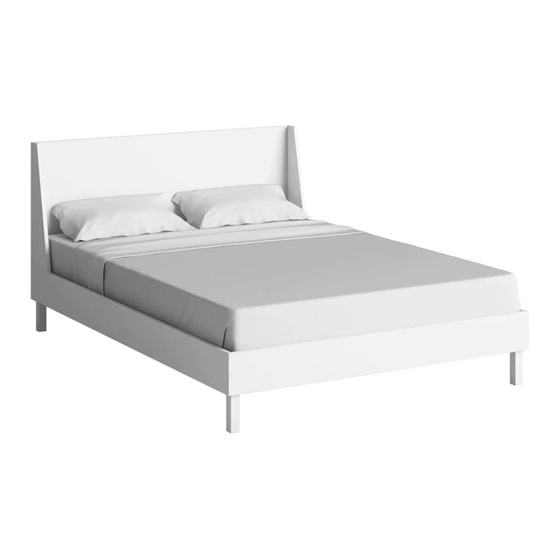

studioduc indi full Assembly Instructions Manual

Bed
Hide thumbs Also See for indi full:

Advertisement

Quick Links

Download this manual
ASSEMBLY INSTRUCTIONS
indi full bed
a how-to guide that won't leave you in tears

Advertisement

loading
Need help?

Need help?

Do you have a question about the indi full and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for studioduc indi full

Summary of Contents for studioduc indi full

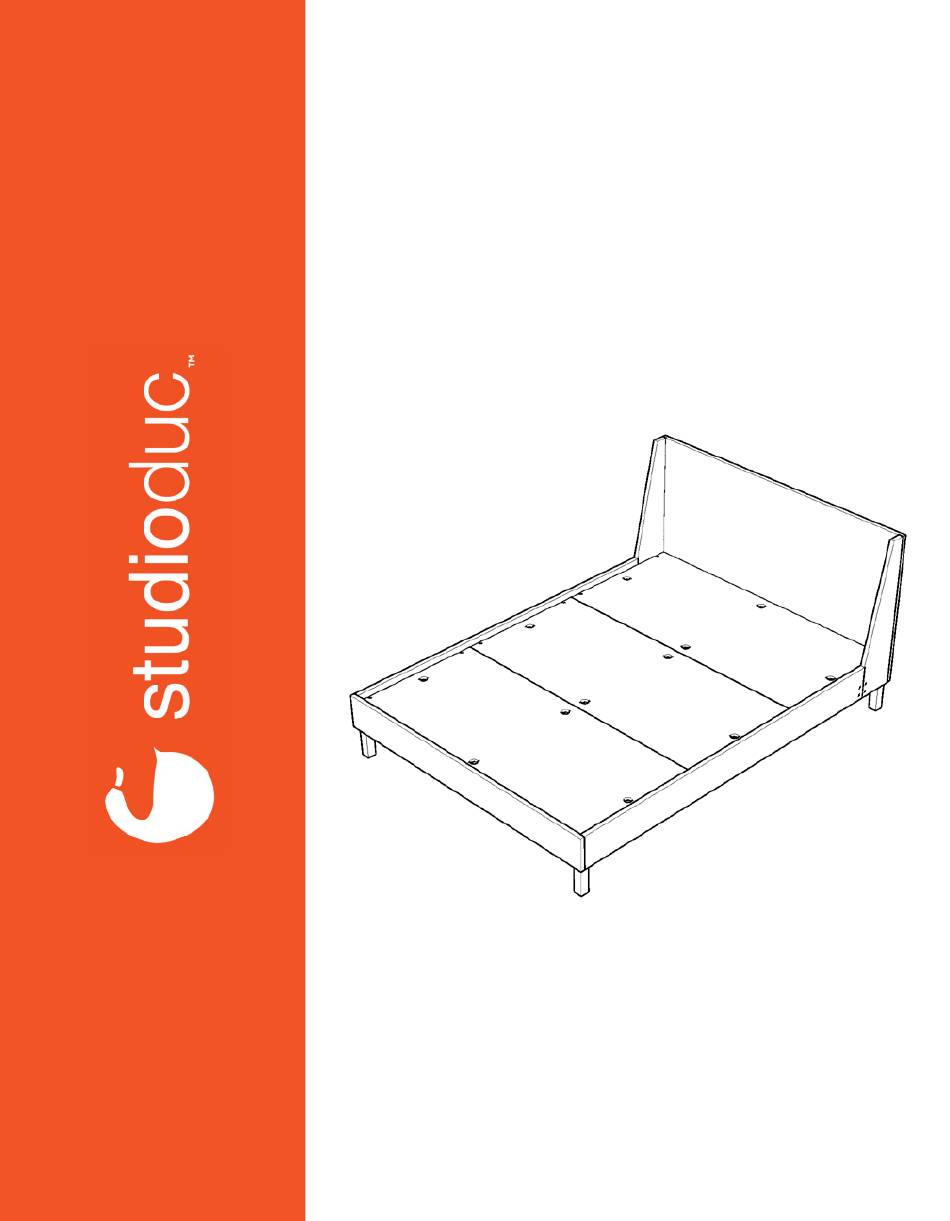

  • Page 1 ASSEMBLY INSTRUCTIONS indi full bed a how-to guide that won’t leave you in tears...
  • Page 2 parenting is hard. this is easy. no really, it is. MADE HERE™ MADE WELL™ MADE SAFE MADE SMART...
  • Page 3 want to watch this assembly IRL? (acronym challenged? that means “in real life”.) open the camera on your phone and place it over the QR code below to see our NYC studio dream team do all the heavy lifting (just kidding, there is none!) or go to ducducnyc.com/pages/assembly-instructions...
  • Page 4 thank you for selecting a studio duc product!

  • Page 5: Maintenance

    please check contents against the components list in these instructions. also, please ensure there was no damage that may have occurred in shipping. if any components are missing or you find any damage, please contact ducduc before continuing. read all the instructions before use. pay close attention to the safety warnings in these instructions.

  • Page 6: What's In The Box

    WHAT’S IN THE BOX: R headboard side L headboard side headboard back R side rail L side rail center support D x3 mattress panel footboard E (x2) F (x8) G (x8) H (x8) bracket JCB bolt (20mm) 5/16” locking washer 5/16”...

  • Page 7: What You'll Need

    WHAT YOU’LL NEED: household hammer or phillips head screwdriver rubber mallet 20 minutes a soft surface to assemble on (or less) (like a rug or some of the corrugate box your piece arrived in) 2 people plus a dog for moral support (unless you’re a cat person)
  • Page 8 lay R headboard side (A1) on floor with foot facing up as shown. insert connectors on cleat of R side rail (B1) into holes on R headboard side (A1). push down at the connection to lock into place. still confused? scan this code to watch the assembly video!
  • Page 9 place bracket (E) over top of the 4 holes at the connection of R headboard side (A1) and R side rail (B1). secure into place using the allen key (I) to screw in hardware (F, G, + H) as arranged in the picture. still confused? scan this code to watch the assembly video!
  • Page 10 repeat steps 1-3 to connect the L headboard side (A2) and the L side rail (B2) lean assembled R side (A1 + A2) against a wall as shown still confused? scan this code to watch the assembly video!
  • Page 11 apply hammer cap (J) to the head of a household hammer. have a friend hold headboard back (A3) off the ground in order to line up the connectors on assembled R headboard side (A1) with slots on headboard back (A3). use hammer with hammer cap (J) to tap into place.
  • Page 12 insert remaining connectors on L headboard side (A2) into remaining slots on headboard back (A3). tap into place. still confused? scan this code to watch the assembly video!
  • Page 13 insert remaining connectors on L headboard side (A2) into remaining slots on headboard back (A3). tap into place. insert connectors on both side rails (B1 + B2) and center support (B3) into slots on footboard (C). tap into place. still confused? scan this code to watch the assembly video!
  • Page 14 with a friend, lift one mattress panel (D) and place on side rails (B1 + B2) so the connectors on side rail cleats line up with holes on underside of mattress panel (D). once connectors and holes are aligned, push down to lock into place. repeat until all mattress panels (D) are secured into place.
  • Page 15 awww yeah! you did it! give yourself a pat on the back, take a bow, or go house a pint of ice cream…we don’t judge.
  • Page 16 prefer to talk to a human instead? we’re here for you! contact our customer advocate team below: 212.226.1868 quack@ducducnyc.com live chat at 200 lexington, no. 1201 ducducnyc.com ny, ny 10016...
