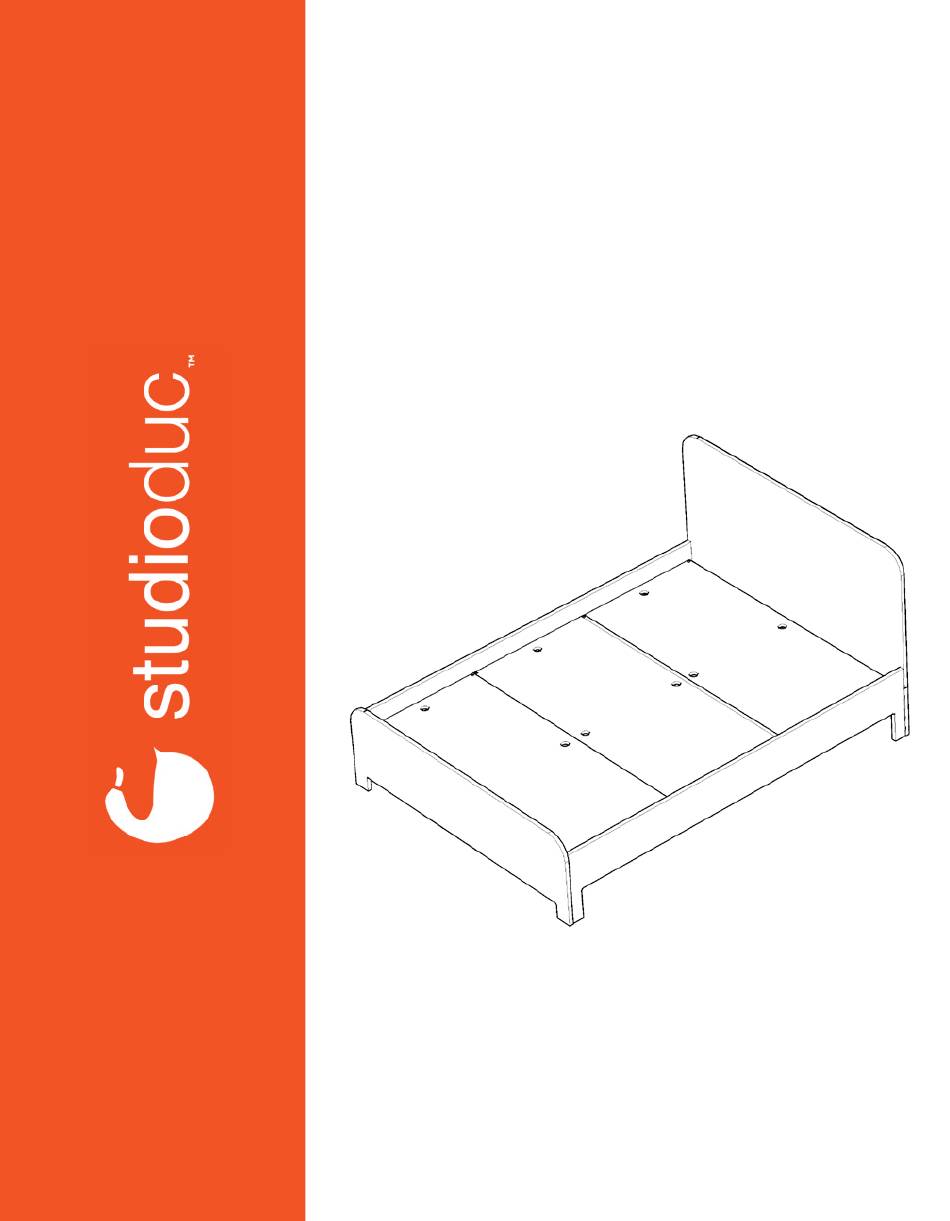

- Page 1 ASSEMBLY INSTRUCTIONS juno full bed a how-to guide that won’t leave you in tears...
- Page 2 parenting is hard. this is easy. no really, it is. MADE HERE™ MADE WELL™ MADE SAFE MADE SMART...
- Page 3 want to watch this assembly IRL? (acronym challenged? that means “in real life”.) open the camera on your phone and place it over the QR code below to see our NYC studio dream team do all the heavy lifting (just kidding, there is none!) or go to ducducnyc.com/pages/assembly-instructions...
- Page 4 thank you for selecting a studio duc product!
-
Page 5: Maintenance
please check contents against the components list in these instructions. also, please ensure there was no damage that may have occurred in shipping. if any components are missing or you find any damage, please contact ducduc before continuing. read all the instructions before use. pay close attention to the safety warnings in these instructions. -
Page 6: What's In The Box
WHAT’S IN THE BOX: footboard headboard top D (x3) headboard base mattress panels E (x2) 25mm JCB bolt hammer cap L side rail allen key (4mm) R side rail center support rail H (x6) screws... -
Page 7: What You'll Need
WHAT YOU’LL NEED: phillips head screwdriver household hammer or and/or drill with 6mm bit rubber mallet a soft surface to assemble on 10 minutes (like a rug or some of the corrugate (or less) box your piece arrived in) 2 people plus a dog for moral support (unless you’re a cat person) - Page 8 lean headboard top (A1) against wall so holes are facing up and slots are facing away from wall as shown. apply hammer cap (F) to the head of a household hammer. line up connectors on headboard base (A2) with holes on headboard top (A2). tap with hammer and hammer cap (F) until there is no gap at the connection.
- Page 9 with a friend, rotate assembled headboard (A1 + A2) into upright position as shown. insert connectors on R side rail (B2) with slots on assembled headboard (A1 + A2). push down at the connection to lock into place. confused? scan this code to watch the assembly video!
- Page 10 insert connectors on L side rail (B1) into slots on assembled headboard (A1 + A2). push down at the connection to lock into place. still confused? scan this code to watch the assembly video!
- Page 11 locate the metal bracket attached to each side panel, facing the headboard. be sure that the 3 holes on the metal bracket are aligned with the pre-drilled holes on your hearboard. then, starting on one side, take 3 screws (H) and insert them through the bracket and into the pre- drilled holes of the headboard.
- Page 12 insert connectors on center support rail (H) into slots on assembled headboard (A1 + A2). push down at the connection to lock into place. important! be sure the “UP” sticker is facing up confused? scan this code to watch the assembly video!
- Page 13 insert connectors on both side rails (A1 + A2) and center support rail (H) into slots on foot- board (C). push down at the connections to lock into place. still confused? scan this code to watch the assembly video!
- Page 14 with a friend, lift one mattress panel (D) and place on side rail (B1 + B2) supports and cen- ter support rail (H) so the connectors on side rails align with holes on underside of mattress panel (D). repeat until all mattress panels (D) are secured in place. still confused? scan this code to watch the assembly video!
- Page 15 hooray! you did it! give yourself a pat on the back, take a bow, or go house a pint of ice cream…we don’t judge.
- Page 16 prefer to talk to a human instead? we’re here for you! contact our customer advocate team below 212.226.1868 quack@ducducnyc.com live chat at 200 lexington ave ducducnyc.com ny, ny 10016...
