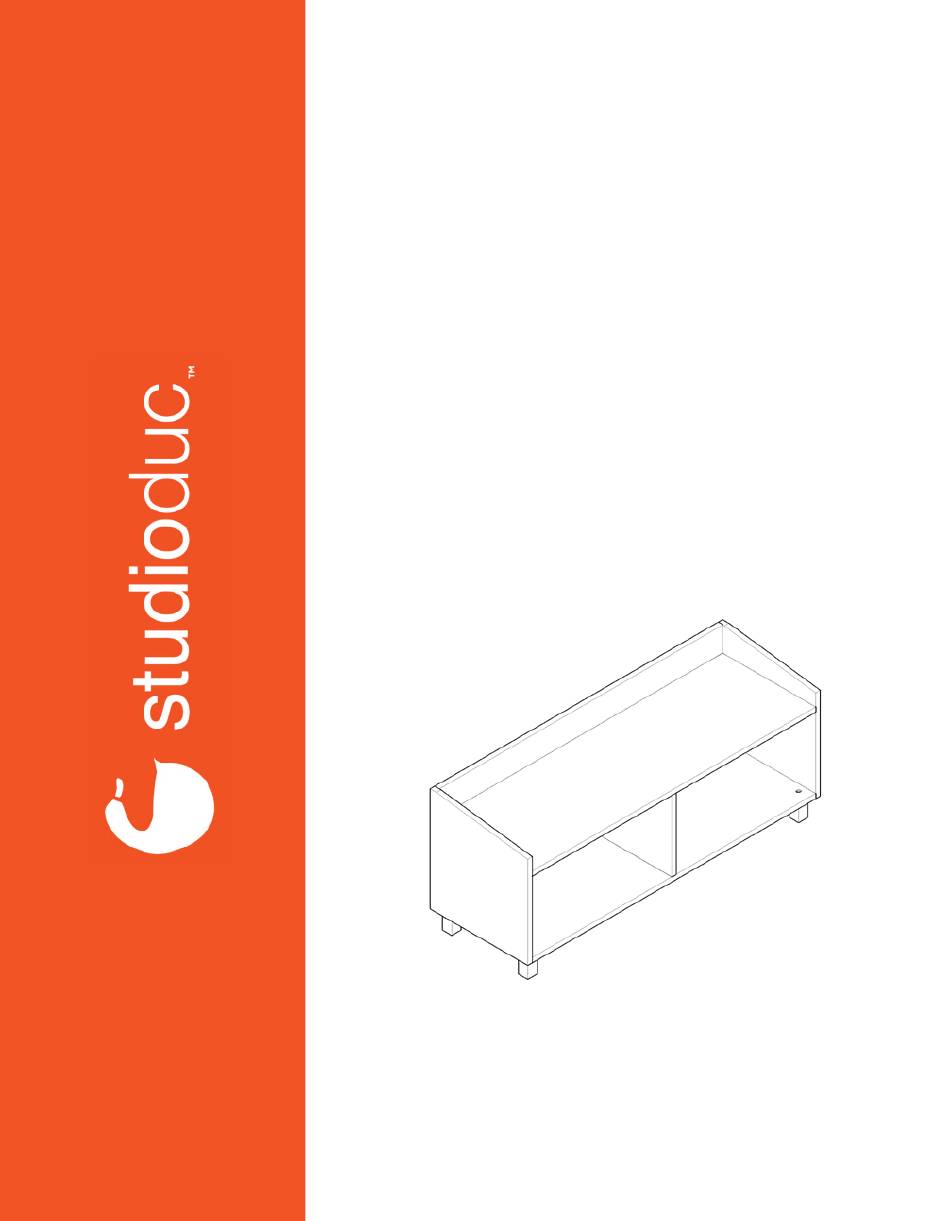

- Page 1 ASSEMBLY INSTRUCTIONS indi bench a how-to guide that won’t leave you in tears...
- Page 2 parenting is hard. parenting is hard. this is easy. this is easy. no really, it is. no really, it is. MADE HERE™ MADE HERE™ MADE WELL™ MADE WELL™ MADE SAFE MADE SAFE MADE SMART MADE SMART...
- Page 3 want to watch this assembly IRL? (acronym challenged? that means “in real life”.) open the camera on your phone and place it over the QR code below to see our NYC studio dream team do all the heavy lifting (just kidding, there is none!) or go to ducducnyc.com/pages/assembly-instructions...
- Page 4 thank you for selecting a studio duc product!
-
Page 5: Maintenance
please check contents against the components list in these instructions. also, please ensure there was no damage that may have occurred in shipping. if any components are missing or you find any damage, please contact ducduc before continuing. read all the instructions before use. pay close attention to the safety warnings in these instructions. -
Page 6: What's In The Box
WHAT’S IN THE BOX: L side R side center partition F (x4) foot bottom G (x4) JCB bolt (25mm) back allen key (4mm) hammer cap... -
Page 7: What You'll Need
WHAT YOU’LL NEED: household hammer or a soft surface to assemble on rubber mallet (like a rug or some of the corrugate box your piece arrived in) 2 people 15 minutes plus a dog for moral support (or less) (unless you’re a cat person) - Page 8 lean bottom (C) against a wall as shown. using the provided allen key (H) and JCB bolts (G), attach feet (F) to bottom (C). once all feet are securely attached, set the assembled base aside. important! be sure the JBC bolts are attached to the side of the duc insider tip! bottom panel WITH the...
- Page 9 flip the assembled base around so the feet are facing the wall. insert connectors on center partition (B) into slots on bottom (C) and push down to lock into place. insert remaining connectors on center partition (B) into slots on top (E) and push down at the connection to lock into place.
- Page 10 lean L side (A1) against a wall as shown. insert connectors on back (D) into slots on L side (A1). push down at the connection to lock into place. still confused? scan this code to watch the assembly video!
- Page 11 insert connectors on back (D) into slots on R side (A2). push down at the connection to lock into place. gently lay the partially assembled case on its back and have a friend gently flare the sides (A1 + A2) outward as shown. still confused? scan this code to watch the assembly video!
- Page 12 with the sides flared outward, insert connectors of assembled base (C + F) and top (E) into slots on R side (A2). still confused? scan this code to watch the assembly video!
- Page 13 insert remaining connectors on assembled base (C + F) and top (E) into slots on L side panel (A2). once all connectors and slots are lined up and side panels are back to square position, apply hammer cap (I) to the head of a household hammer and tap bottom (C) and top (E) until there is no gap at the connection to back (D).
- Page 14 rotate bench to upright position. duc insider tip! after rotating the bench into upright position, if there is still a small gap between the top and the back, hammer the back at each connection point to fully secure into place. still confused? scan this code to watch the assembly video!
- Page 15 huzzah! you did it! give yourself a pat on the back, take a bow, or go house a pint of ice cream…we don’t judge.
- Page 16 prefer to talk to a human instead? we’re here for you! contact our customer advocate team below: 212.226.1868 quack@ducducnyc.com live chat at 200 lexington, no. 701 ducducnyc.com ny, ny 10016...
