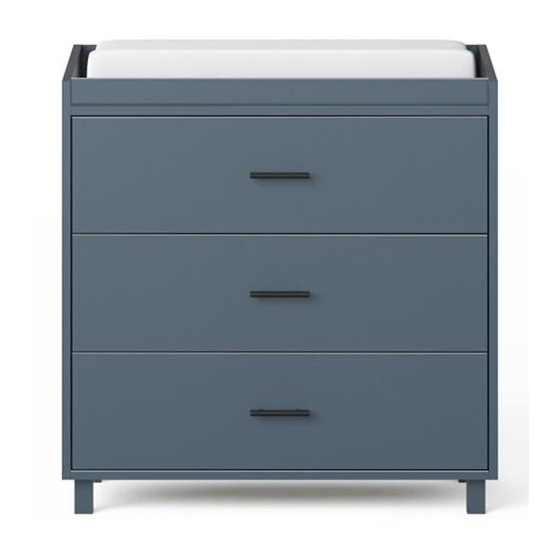

studioduc indi Assembly Instructions Manual

Dresser/changer
Hide thumbs Also See for indi:

Advertisement

Quick Links

Download this manual
ASSEMBLY INSTRUCTIONS
indi dresser/changer
a how-to guide that won't leave you in tears

Advertisement

loading
Need help?

Need help?

Do you have a question about the indi and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for studioduc indi

Summary of Contents for studioduc indi

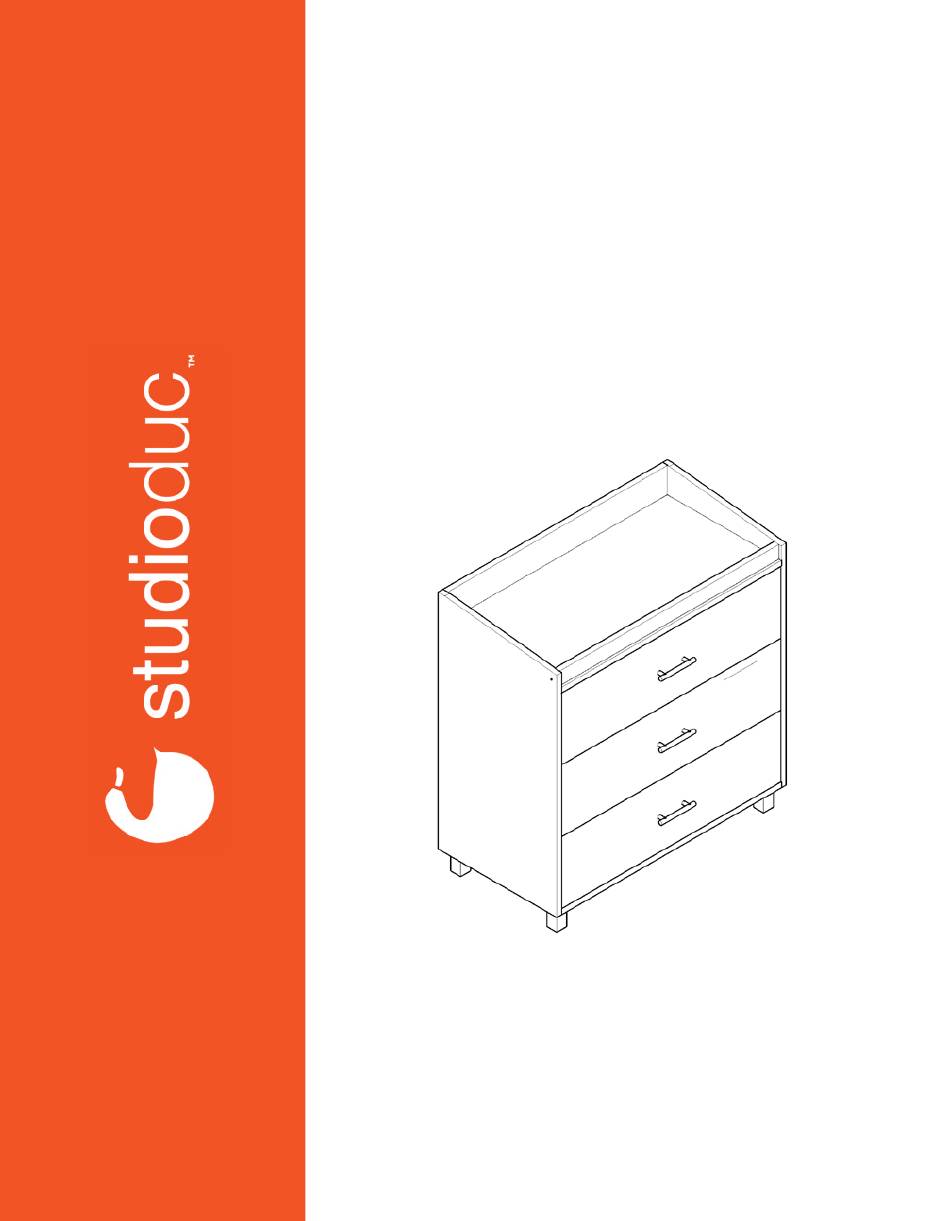

  • Page 1 ASSEMBLY INSTRUCTIONS indi dresser/changer a how-to guide that won’t leave you in tears...
  • Page 2 parenting is hard. this is easy. no really, it is. MADE HERE™ MADE WELL™ MADE SAFE MADE SMART...
  • Page 3 want to watch this assembly IRL? (acronym challenged? that means “in real life”.) open the camera on your phone and place it over the QR code below to see our NYC studio dream team do all the heavy lifting (just kidding, there is none!) or go to ducducnyc.com/pages/assembly-instructions...
  • Page 4 thank you for selecting a studio duc product!
  • Page 5 shipping. If any components are missing or you find any damage, please contact ducduc before continuing. To use the dresser as a changing table, insert and use the changing table tray provided with the dresser. Please check contents against the components list in these instructions. Also, please ensure there was no damage that may have occurred in shipping.

  • Page 6: What's In The Box

    L drawer box side R drawer box side safety strap kit (with hardware) DB5 (x3) drawer box bottom bottom K (x2) confirmat screw for stretcher tray stretcher DB6 (x3) DB7 (x6) indi pull screw for indi pull allen key (3mm)

  • Page 7: What You'll Need

    WHAT YOU’LL NEED: household hammer or phillips head screwdriver rubber mallet 20 minutes a soft surface to assemble on (or less) (like a rug or some of the corrugate box your piece arrived in) 2 people plus a dog for moral support (unless you’re a cat person)
  • Page 8 lean bottom (C) against a wall as shown. using the provided allen key (I) and JCB bolts (H), attach feet (F) to bottom (C). once all feet are securely attached, set the assembled base aside. important! be sure the JBC bolts are attached to the side of the bottom panel WITH the countersink holes.
  • Page 9 lean L side panel (A2) against a wall as shown. insert connectors on back panel (B) into slots on L side panel (A2). push down at the connection to lock into place. important! be sure the 3 holes on the back panel are located at the top interior still confused? scan this code to watch the assembly video!
  • Page 10 insert connectors on back panel (B) into slots on R side panel (A1). push down at the connection to lock into place. gently lay the partially assembled case on its back and have a friend gently flare the side panels (A1 + A2) outward as shown. still confused? scan this code to watch the assembly video!
  • Page 11 with the side panels flared outward, insert connectors of assembled base (C + F) and top (E) into slots on R side panel (A1). still confused? scan this code to watch the assembly video!
  • Page 12 insert remaining connectors on assembled base (C + F) and top (E) into slots on L side panel (A2). once all connectors and slots are lined up and side panels are back to square position, apply hammer cap (G) to the head of a household hammer and tap bottom panel (C) and top (E) until there is no gap at the connection to back panel (B).
  • Page 13 with a friend, rotate the assembled case into upright position. position tray stretcher (D) between two side panels (A1 + A2) as shown. once the connectors on tray stretcher (D) are lined up with the holes on top (E), use hammer with hammer cap (G) to tap until secure.
  • Page 14 now we build the drawers! starting with drawer face (DB1) facing down, insert connectors of both drawer box side panels (DB3 + DB4) into slots on drawer face (DB1). push down at the connections to lock into place. rotate the partially assembled drawer box as shown. slide drawer box bottom (DB5) into place using grooves on the drawer box side panels (DB3 + DB4) as guides.
  • Page 15 again, rotate partially assembled drawer box as shown. insert connectors of drawer box back (DB2) into slots on drawer box sides (DB3 + DB4). push down at the connections to lock into place. use hammer and hammer cap (F) if needed. using a phillips screwdriver and screws (DB7), attach the pull hardware (DB6) to the front of each drawer face.
  • Page 16 build remaining drawers using steps 8a, 8b, 8c, and 8d. starting at the top, pull drawer glides out to extended position as shown. still confused? scan this code to watch the assembly video!
  • Page 17 place one assembled drawer box onto extended glides as shown. from underside of drawer, use hands to pull each glide forward until it locks into connection with glide hardware attached to drawer box bottom (DB5). the drawer will be secure when you hear a click on each connection.
  • Page 18 repeat steps 10a + 10b to install the remaining drawers. safety strap installation Important! Do not skip this step. Furniture tipping over is a serious threat to children’s safety. the last step for your dresser/changer is to install the safety strap included in the box. ref- erence the separate instructions enclosed in the envelope.
  • Page 19 yippee! you did it! give yourself a pat on the back, take a bow, or go house a pint of ice cream…we don’t judge.
  • Page 20 prefer to talk to a human instead? we’re here for you! contact our customer advocate team below: 212.226.1868 quack@ducducnyc.com live chat at 200 lexington, no. 1201 ducducnyc.com ny, ny 10016...
