EIP-2019 Quick Start
For EIP-2000 Series
English/ January 2014/ Version 1.2
1
What's in the shipping package?
The package includes the following items:
Quick Start
Screw Driver
EIP-2019
CD
CN-1824
(This document)
2
I
nstalling Software on your PC
Install EIP-2000 Utility:
The software is located at:
Fieldbus_CD:\EtherNetIP\remote-io\EIP-2019\Utility
1
EIP-2019 Quick Start
Advertisement
Table of Contents
Related Manuals for ICP DAS USA EIP-2019
Summary of Contents for ICP DAS USA EIP-2019

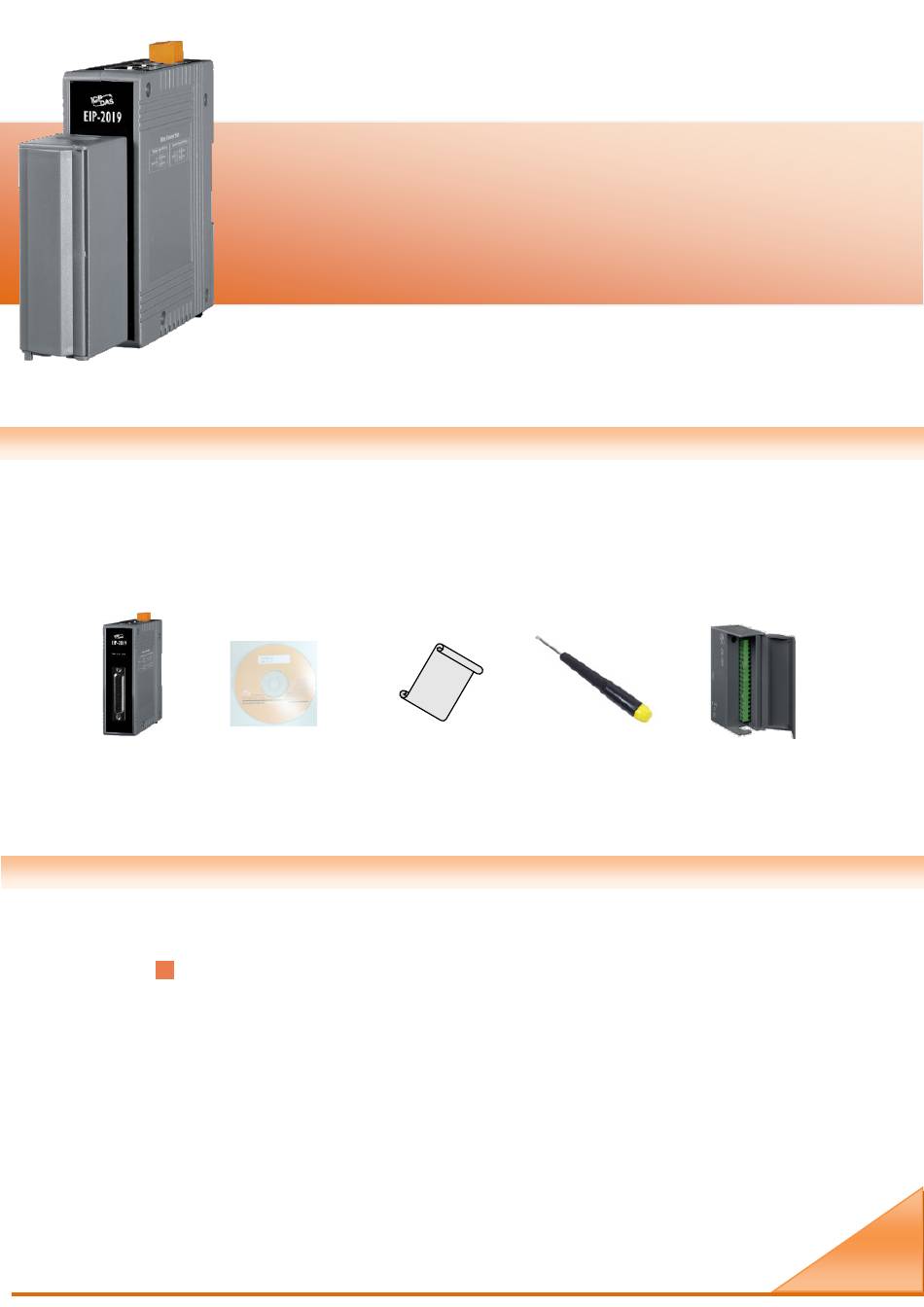

- Page 1 EIP-2019 Quick Start For EIP-2000 Series English/ January 2014/ Version 1.2 What’s in the shipping package? The package includes the following items: Quick Start Screw Driver EIP-2019 CN-1824 (This document) nstalling Software on your PC Install EIP-2000 Utility: The software is located at:...
- Page 2 Check FW/OP DIP switch if it is on OP position(Figure 3-1). Figure 3-1 Mode Switch Connect both the EIP-2000 and your computer to the same sub network or the same Ethernet switch, and power the EIP-2000 on. Please refer to figure 3-2. Figure 3-2 EIP-2000 module installation EIP-2019 Quick Start...
- Page 3 I/O connector – EIP-2019 D-Sub Terminal AGND CH 0+ CH 0- CH 1+ CH 1- CH 2+ CH 2- CH 3+ CH 3- CH 4+ CH 4- CH 5+ CH 5- CH 6+ CH6- CH 7+ CH7- N.C. N.C. N.C.
- Page 4 Click the “Network Scan” button to search your EIP-2000 modules(Figure 4-1). Figure 4-1 EIP-2000 Utility network scan Click the EIP-2019 or other EIP-2000 modules on the device list below to open the configuration dialog of EIP-2000. Each EIP-2000 module has its own configuration interface.
- Page 5 EtherNet/IP disconnected during communication but still in Safe- Delay time. Blink per 100 ms Module is about to reboot. On/Flashing AI status is close to full or out of range. Error LED AI status is within the range of input type. EIP-2019 Quick Start...
- Page 6 How to connect with Allen-Bradley PLC？ 1. Open RSLogix 5000 and create a new project. Figure5-1. Create a new project. 2. Select the PLC type and give the project a name. Figure5-2. Set the PLC type and project name. EIP-2019 Quick Start...
- Page 7 3. Create a new module in the “Ethernet” item. Figure 5-3. Create a new module. 4. Select the “ETHERNET-MODULE” below “Communications” in the Select Module window. Figure5-4. Select “ETHERNET-MODULE”. EIP-2019 Quick Start...
- Page 8 5. Configure the new module parameters. The I/O length of new module must be the same with the length of EIP-2019 I/O data(Table 5-1). The input data size is 41 bytes and output data size is 23 bytes. The instance ID please refer to Table 5-2.
