ICP DAS USA EIP-2000 Series Quick Start Manual

Hide thumbs Also See for EIP-2000 Series:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
Packing List
In addition to this guide, the package includes the following items:
EIP-2000
Technical Support
service@icpdas.com
www.icpdas.com
 For Desktop Web
Installing Software on your PC
Install EIP-2000 Utility:
http://www.icpdas.com/en/download/show.php?num=3080
Quick Start
Resources
How to search for drivers, manuals and
spec information on ICP DAS website.
 For Mobile Web
Model Name
Model Name
EIP-2000 Quick Start
V1.0, February 2023
Screw Driver
CN-1824
EIP-2019/S Only
P1

Advertisement

loading
Need help?

Need help?

Do you have a question about the EIP-2000 Series and is the answer not in the manual?

Questions and answers

Related Manuals for ICP DAS USA EIP-2000 Series

Summary of Contents for ICP DAS USA EIP-2000 Series

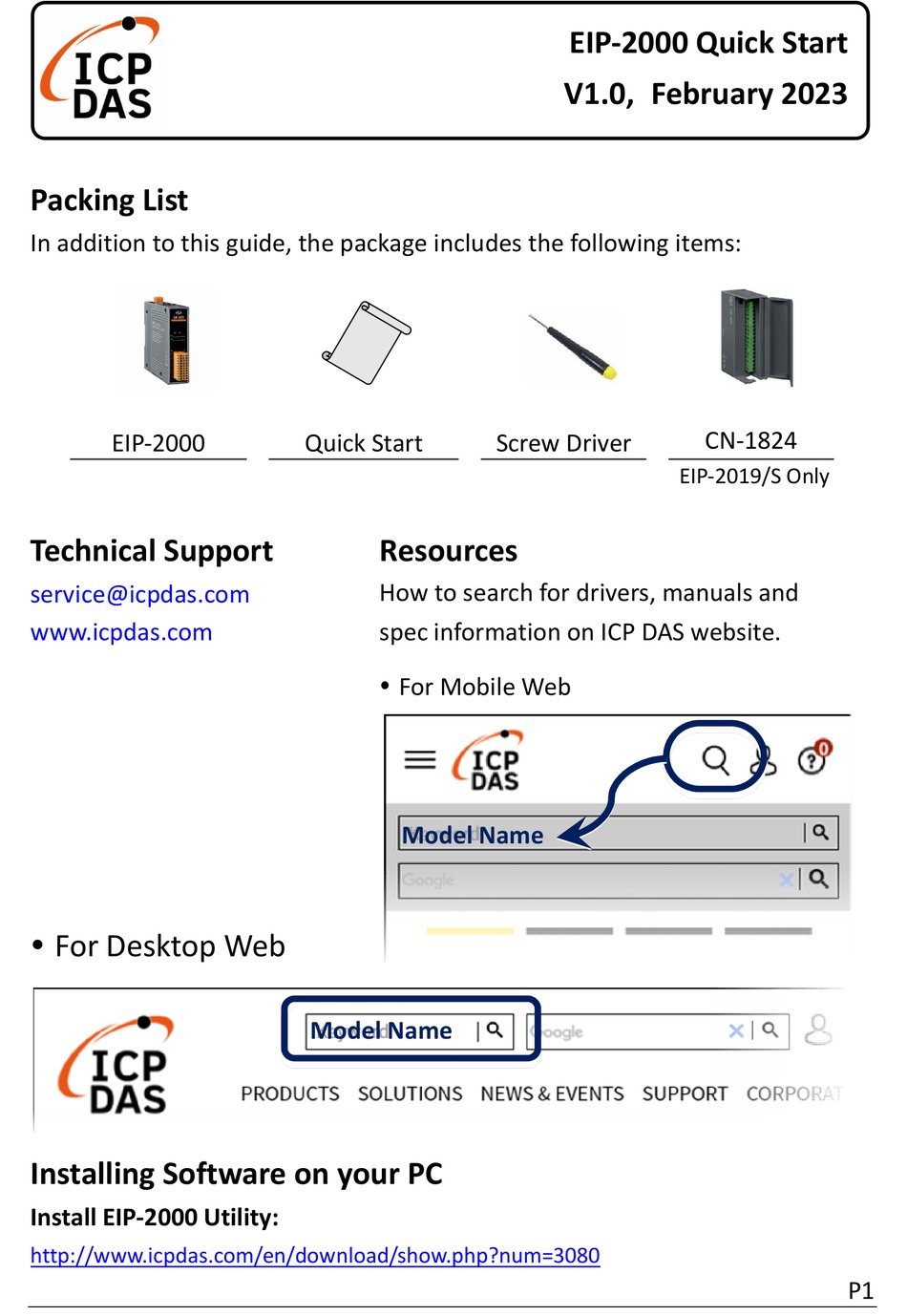

  • Page 1 EIP-2000 Quick Start V1.0, February 2023 Packing List In addition to this guide, the package includes the following items: CN-1824 EIP-2000 Quick Start Screw Driver EIP-2019/S Only Technical Support Resources How to search for drivers, manuals and service@icpdas.com www.icpdas.com spec information on ICP DAS website. ...
  • Page 2 Connecting the Power and PC 1. Make sure your PC has workable network settings. 2. Disable or well configure your Windows firewall and anti-virus firewall first, else the “Network Scan” may not work. (Please contact with your system Administrator) 3. Check Init/Run DIP switch if it is on Run position. 4.
  • Page 3 5. Please download the datasheet from the ICPDAS website for more pin-assignment and wire-connection details. The LED indicator table is shown in the following table. LED Indicator LED Status Description Always On Module is in Run mode. Power LED Flashing Module is in Init mode.
  • Page 4 4. Users can edit the “Network Settings” for changing the modules’s IP address. And click the “Update Network Settings” button to update the configuration and reboot the module. How to connect with Allen-Bradley PLC? 1. Open RSLogix 5000 (AB PLC tool) and create a new project, and create a new module in the “Ethernet”...
  • Page 5 2. Set the parameters of the new module. The input assembly instain is 101, the output assembly instance is 102 and the configuration assembly instance is 100. Please find the IO size from the following tables, and the configuration size is always 0. ...
  • Page 6 Byte: Filter selections of AI Byte: Channel mode selection DIFF. or S.E. Byte: AI representations Byte: AI channel selection (AI0～AI7) Byte: AI channel selection (AI8～AI15)  EIP-2019 data size Data Byte Description Assembly count ～16 Byte: AI status(AI0～AI7). ～18 Byte: The broken wire status. ～20 Byte: CJC status.
  • Page 7  EIP-2042 data size Data Assembly Byte count Description Byte: DO status read back (DO0～DO7). Input Assembly Byte: DO status read back (DO8～DO15). Byte: DO status (DO0～DO7). Output Assembly Byte: DO status (DO8～DO15).  EIP-2051 data size Data Assembly Byte count Description Byte: DI status(DI0～DI7).
  • Page 8 The Instance ID of the EIP-2000 module. Implicit Message Information of EIP-2000 Instance Instance ID Data length Input(T->O) 65hex (101) Depends on modules. Output(O->T) 66hex (102) Depends on modules. Configuration 64hex (100)
