ICP DAS USA EIP-2019 Quick Start Manual

Isolated 8-channel thermocouple analog input ethernet/ip module
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
Isolated 8-Channel Thermocouple Analog
1
The package includes the following items:
EIP-2019
2
EIP-2019 8-Channel Thermocouple Analog Input EtherNet/IP Module
ICP DAS USA, Inc. |
www.icpdas-usa.com
Input EtherNet/IP Module
Quick Start Guide

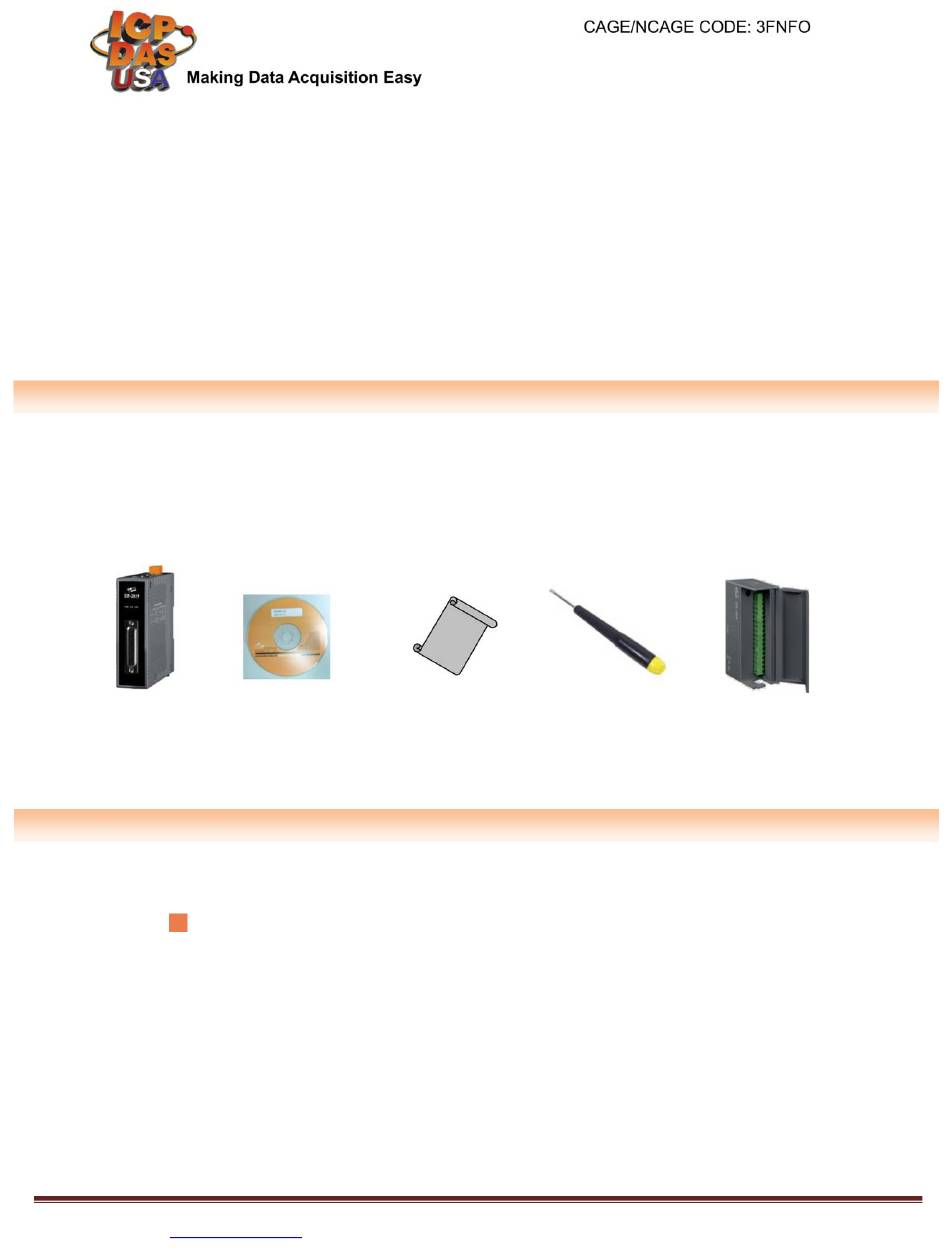

What's in the shipping package?
CD
(This document)
I
nstalling Software on your PC
Install EIP-2000 Utility:
The software is located at:
Fieldbus_CD:\EtherNetIP\remote-io\EIP-2019\Utility
| 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717
EIP-2019
Quick Start
Screw Driver
- QuickStart (Mar/2019)
CN-1824

Advertisement

loading
Need help?

Need help?

Do you have a question about the EIP-2019 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ICP DAS USA EIP-2019

Summary of Contents for ICP DAS USA EIP-2019

  • Page 1 Software on your PC Install EIP-2000 Utility: The software is located at: Fieldbus_CD:\EtherNetIP\remote-io\EIP-2019\Utility EIP-2019 8-Channel Thermocouple Analog Input EtherNet/IP Module - QuickStart (Mar/2019) ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717...
  • Page 2 Connect both the EIP-2000 and your computer to the same sub network or the same Ethernet switch, and power the EIP-2000 on. Please refer to figure 3-2. EIP-2019 8-Channel Thermocouple Analog Input EtherNet/IP Module - QuickStart (Mar/2019) ICP DAS USA, Inc. | www.icpdas-usa.com...
  • Page 3 EIP-2019 8-Channel Thermocouple Analog Input EtherNet/IP Module - QuickStart (Mar/2019) ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717...

  • Page 4: Voltage Input

    Click the “Network Scan” button to search your EIP-2000 modules(Figure 4-1). Figure 4-1 EIP-2000 Utility network scan Click the EIP-2019 or other EIP-2000 modules on the device list below to open the configuration dialog of EIP-2000. Each EIP-2000 module has its own configuration interface.
  • Page 5 On/Flashing AI status is close to full or out of range. Error LED AI status is within the range of input type. EIP-2019 8-Channel Thermocouple Analog Input EtherNet/IP Module - QuickStart (Mar/2019) ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717...
  • Page 6 Figure5-1. Create a new project. 2. Select the PLC type and give the project a name. Figure5-2. Set the PLC type and project name. EIP-2019 8-Channel Thermocouple Analog Input EtherNet/IP Module - QuickStart (Mar/2019) ICP DAS USA, Inc. | www.icpdas-usa.com...
  • Page 7 3. Create a new module in the “Ethernet” item. Figure 5-3. Create a new module. 4. Select the “ETHERNET-MODULE” below “Communications” in the Select Module window. EIP-2019 8-Channel Thermocouple Analog Input EtherNet/IP Module - QuickStart (Mar/2019) ICP DAS USA, Inc. | www.icpdas-usa.com...
  • Page 8 5. Configure the new module parameters. The I/O length of new module must be the same with the length of EIP-2019 I/O data(Table 5-1). The input data size is 41 bytes and output data size is 23 bytes. The instance ID please refer to Table 5-2.
