Ethernet I/O Module with 10-ch AI, 5-ch

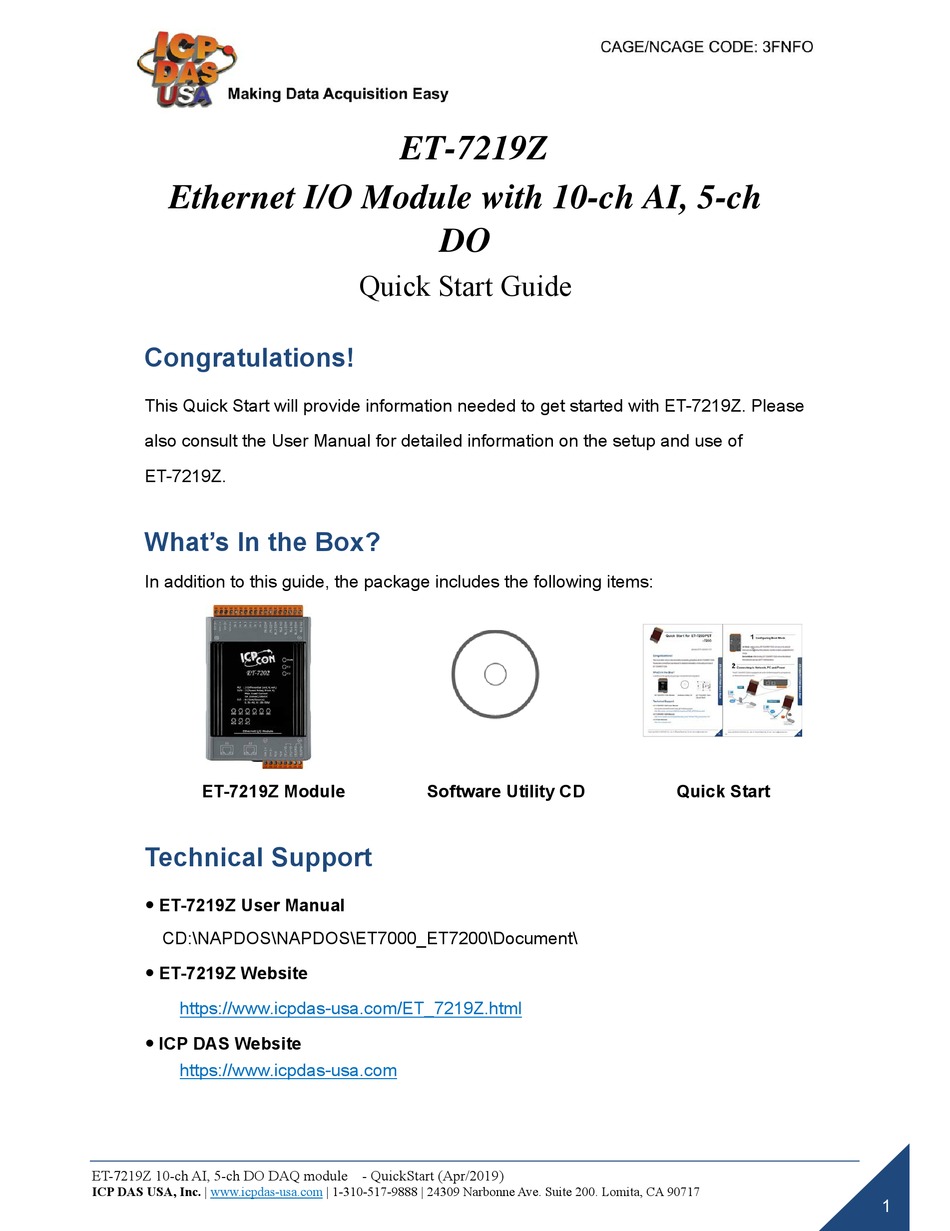

Congratulations!
This Quick Start will provide information needed to get started with ET-7219Z. Please
also consult the User Manual for detailed information on the setup and use of
ET-7219Z.
What's In the Box?
In addition to this guide, the package includes the following items:
ET-7219Z Module
Technical Support
 ET-7219Z User Manual
CD:\NAPDOS\NAPDOS\ET7000_ET7200\Document\
 ET-7219Z Website
https://www.icpdas-usa.com/ET_7219Z.html
 ICP DAS Website
https://www.icpdas-usa.com
ET-7219Z 10-ch AI, 5-ch DO DAQ module - QuickStart (Apr/2019)
ICP DAS USA, Inc. |
www.icpdas-usa.com
ET-7219Z
DO
Quick Start Guide
Software Utility CD
| 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

Quick Start
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the ET-7219Z and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ICP DAS USA ET-7219Z

  • Page 1 Ethernet I/O Module with 10-ch AI, 5-ch Quick Start Guide   Congratulations! This Quick Start will provide information needed to get started with ET-7219Z. Please also consult the User Manual for detailed information on the setup and use of ET-7219Z. What’s In the Box?
  • Page 2 ET-7200 functions. ---------------------------------------------------------------------------------- Connecting to Network, PC and Power The ET-7219Z is equipped with an RJ-45 Ethernet port for connection to an Ethernet hub/switch and PC ET-7219Z 10-ch AI, 5-ch DO DAQ module - QuickStart (Apr/2019) ICP DAS USA, Inc. | www.icpdas-usa.com...
  • Page 3: Installing The Minios7 Utility

    MiniOS7 Utility on the desktop. ---------------------------------------------------------------------------------- Using MiniOS7 Utility to Assign a New IP The ET-7219Z are Ethernet devices, which comes with a default IP address, therefore, you must first assign a new IP address to the ET-7219Z Item Default IP Address 192.168.255.1...
  • Page 4 MiniOS7 modules on your network. See the status tip, waiting for the search to be done. ET-7219Z 10-ch AI, 5-ch DO DAQ module - QuickStart (Apr/2019) ICP DAS USA, Inc. | www.icpdas-usa.com...
  • Page 5 Step 5:Choose “Yes” button Press the Yes button in the Confirm dialog box to exit the procedure. ET-7219Z 10-ch AI, 5-ch DO DAQ module - QuickStart (Apr/2019) ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717...
  • Page 6 The Adobe Flash Player Download Center: http://get.adobe.com/flashplayer/ ---------------------------------------------------------------------------------- Go to the ET-7219Z Web Site to Check out Functions The ET-7219Z contains an advanced web configuration system that provides users with access ET-7219Z applications through a standard web browser. : Step 1 Start ET-7219Z Make sure the switch placed in the “Normal”...
  • Page 7 Firefox or Internet Explorer…etc. : Step 3 Type the URL address of ET-7219Z If you haven’t changed the default IP address of the ET-7219Z, please refer to “4. Using MiniOS7 Utility to Assign a New IP” to configure it. : Step 4...
  • Page 8 Under the Main Menu, expand the Web HMI, and then select the Web HMI option to check the values of the data acquisition. ET-7219Z 10-ch AI, 5-ch DO DAQ module - QuickStart (Apr/2019) ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717...
  • Page 9: Reset To Factory Default Settings

    ---------------------------------------------------------------------------------- Reset to Factory Default Settings Press the reset button for 5 seconds in order to reset the ET-7219Z to factory default settings. Item Default IP Address 192.168.255.1 Subnet Mask 255.255.0.0 Gateway 192.168.0.1 Login Username Admin Reset Login Password Admin ET-7219Z 10-ch AI, 5-ch DO DAQ module - QuickStart (Apr/2019) ICP DAS USA, Inc.
