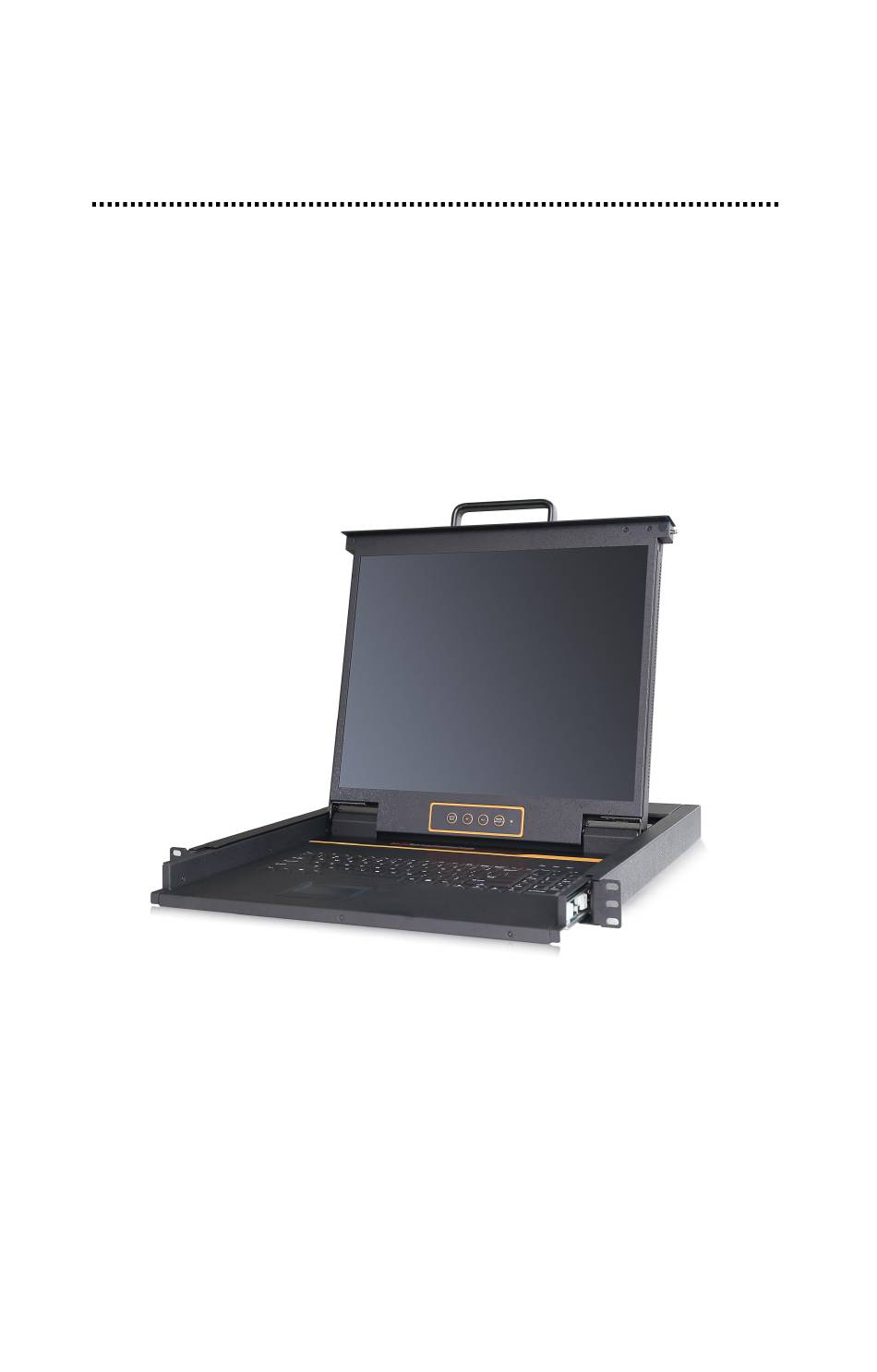

- Page 1 Rackmount LCD Console (Single port) User Manual www.kinankvm.com @all right reserved Shenzhen Kinan Technology Co., Ltd Printing Date：2022/09 Version： V1.1...
- Page 2 LH1901 User Manual Description The rack mount 19” LCD console integrates the video, keyboard and mouse in a 1U rack space; it is fit for installing in a standard 19” server rack. It can control one computer from a complete keyboard, video and mouse control unit.
- Page 3 LH1901 User Manual Front View Figure 1-2 front view LCD Display Rear Bracket Slot OSD Controls Front Bracket Keyboard Touchpad Handle Lock Latch Display Panel - 2 -...
- Page 4 LH1901 User Manual Back View 100-240Vac 50-60Hz HDMI 1-3 back view Power input (AC or DC) Power Switch Ground connecting screw KVM port Cable Connection 1-4 cable connection To ensure signal integrity and simplify cable layout, we strongly recommend you use high quality cables with different length as shown in above table.
- Page 5 LH1901 User Manual Rack Mounting A standard rack mounting kit is provided to mount the switch in a depth of 500-717mm rack. 500-525 mm (L=62mm) 702-717 mm (L=262mm) With one person hold the switch in place and the other person slides the L bracket into the switch’s side mounting brackets from the front to the back,...
- Page 6 LH1901 User Manual Opening the Console Power on the KVM after connecting cables. Power on the server or PC after power on the KVM. Release the release catch. Figure 2-3 unlocking *Note: The release catch can only do horizontal locking, it can’t bear any load.
- Page 7 LH1901 User Manual OSD Controls Figure 3-1 OSD controls Buttons Functions MENU Opens the menu function and brings up the main SELECT menu. Press this button exits the current menu and return to the previous menu or press this button exits the EXIT/AUTO LED OSD.
- Page 8 LH1901 User Manual Specifications Model No LH1901 Function Direct Computer Connections Port Keyboard, mouse emulation LED model SXGA TFT View area 19 " Optimum 1280×1024@60Hz resolution LED monitor Display color 16.7 M Brightness 250cd/m²（ T y p ） Contrast ratio 1000 : 1 （...
