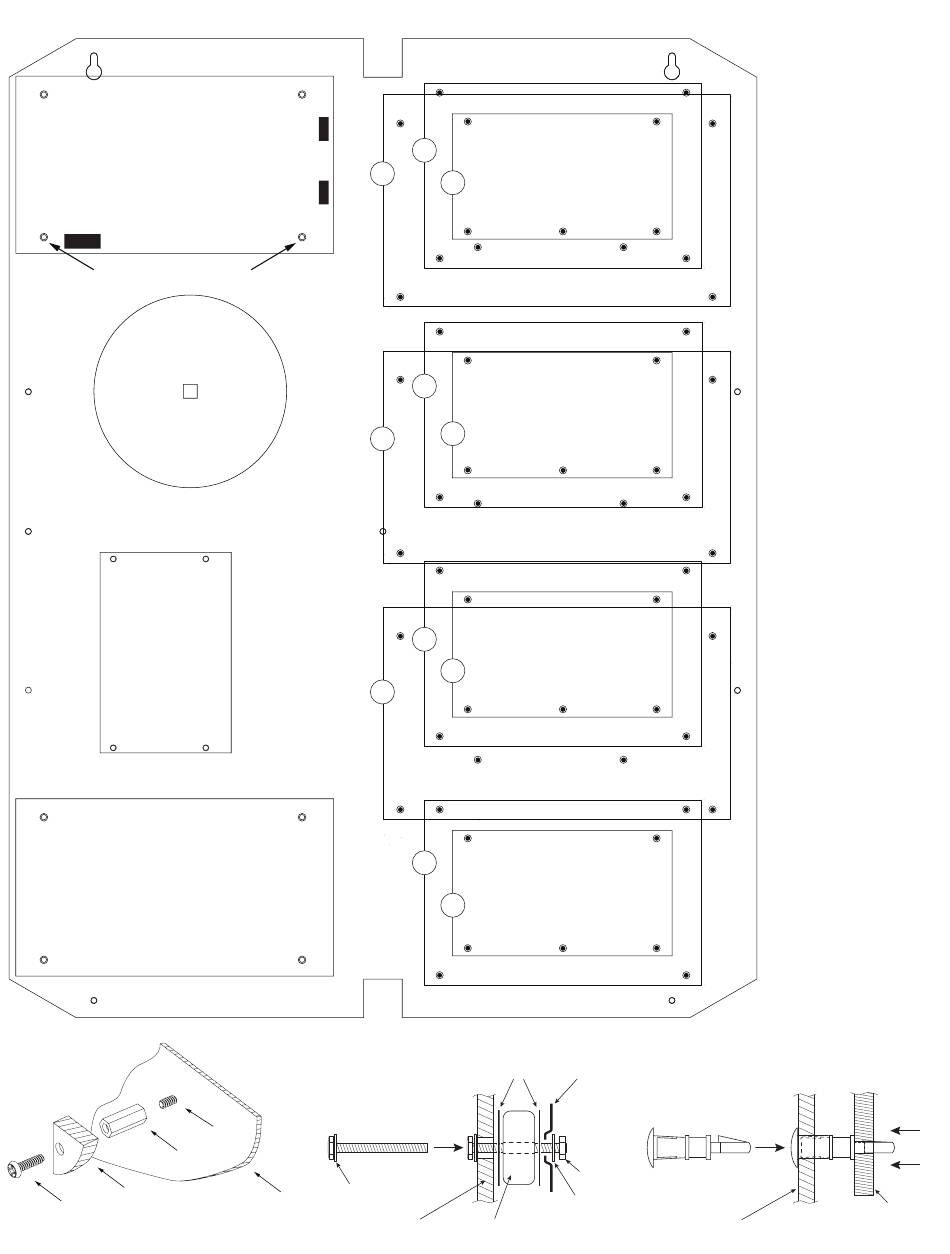

Fig. 2 - Trove2KH2/TKH2 Configurations
Altronix
Power Supply
Metal Spacer Placement
Altronix
T1618300
Transformer
Altronix
Sub-
Assembly
Altronix Sub-Assembly
Altronix
Power Supply or
Pan Head
Sub-Assembly
Screw
- 4 -
Fig. 2a
Step 1
Pem
Spacer
Washer
Backplane
B
A
C
B
C
A
B
C
A
B
C
Fig. 2b
Rubber
Washers
Step 2
Bolt
TKH2 T1618300
Concave
Metal
Plate
Step 1a
Kantech
Nut
Spacer
Washer
Back of TKH2
Fig. 2c
Step 1b
Kantech
Board
Trove / Kantech Installation Guide
