US159-DA16600EVZ
DA16600 Pmod™ Board
The US159-DA16600EVZ is an ultra-low power
Wi-Fi + Bluetooth™ low energy combo Pmod module
that provides both low power Wi-Fi and low power
BLE functionality to your device. The DA16600
integrates the low power Wi-Fi DA16200 SoC and the
low power Bluetooth LE DA14531 SoC on a single
module. Together they deliver long battery life and low
power consumption in a convenient form factor. As a
single integrated system, standard functions are
available such as provisioning Wi-Fi through the BLE
connection and Wi-Fi/BLE coexistence.
The US159-DA16600EVZ features a Type 3A Pmod
connector, incorporates the DA16600 module, and
combines low power Wi-Fi with low power Bluetooth
capability in a single module. With its standard
connector and software support, the
US159-DA16600EVZ is ideal for the Renesas
Quick-Connect IoT to rapidly create an IoT system.
Kit Contents
▪ US159-DA16600EVZ Pmod Board
R15UZ0006EU0100 Rev.1.00
Jun 27, 2022

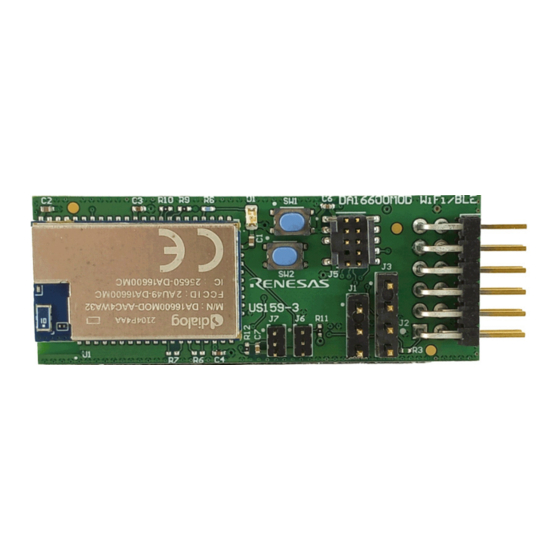

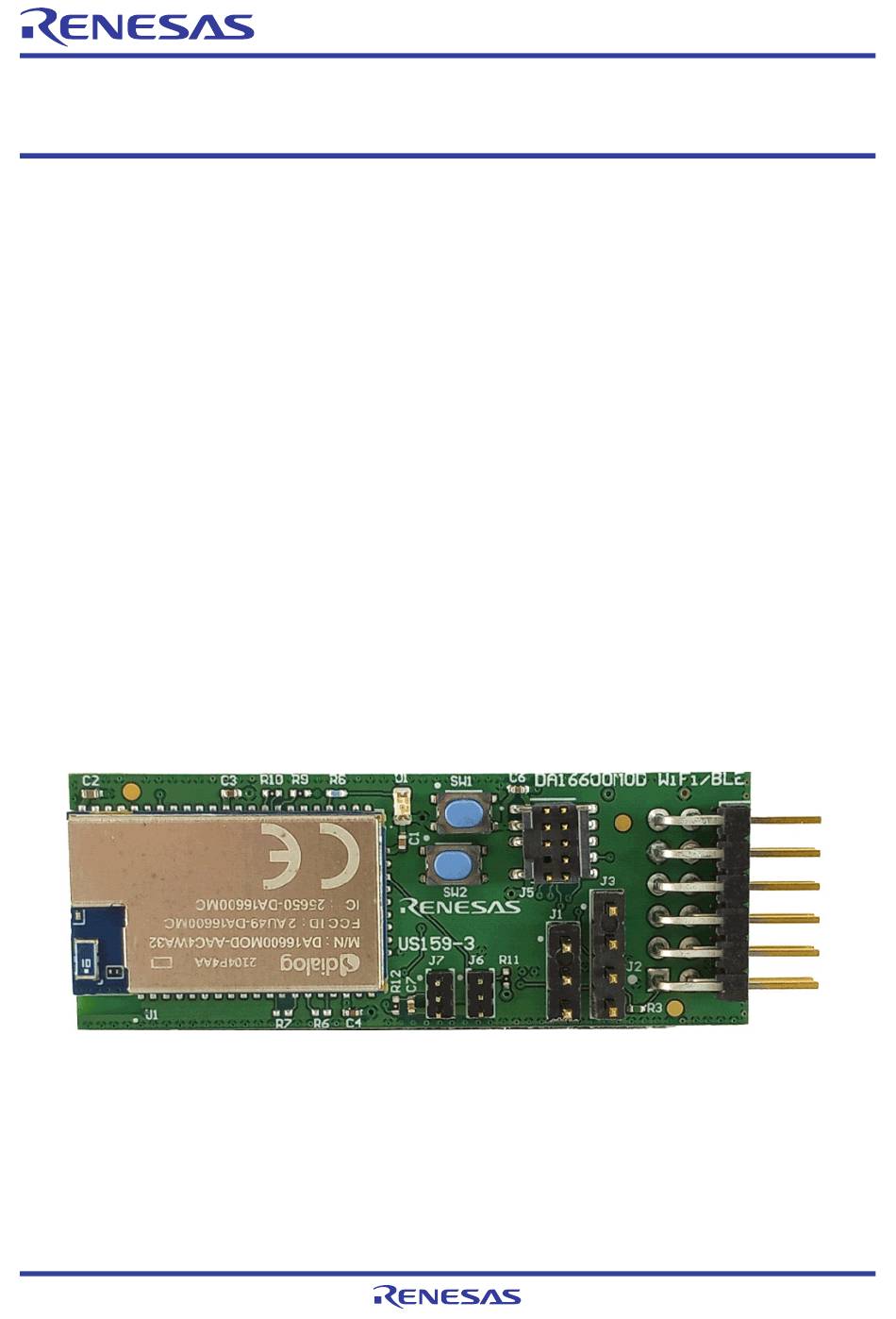

Figure 1. US159-DA16600EVZ Pmod Board (XE Evaluation Board)
Evaluation Board Manual
Features
▪ DA16600MOD-AAC4WA32 module
• 3.3V supply voltage
• Integrated chip antenna
• Cortex-M4F+ at 30MHz to 160MHz and
Cortex M0+ at 16MHz
• 802.11b/g/n radio PHY, 2.4GHz
• Bluetooth 5.1 core qualified
• SoC runs full OS and TCP/IP stack
• Memory: 256 kB ROM, 512kB RAM, 8kB OTP,
48B retention memory and 32Mb SPI Flash
• RF regulatory certifications: FCC, IC, CE, KC,
TELEC, and SRRC
• Wi-Fi Alliance certifications:
Wi-Fi CERTIFIED b/g/n,
WPA, WPA2, and WPA3
▪ Standardized Type 3A Pmod connector supports
an expanded UART interface
▪ LED (D1) to aid in user software debug
▪ 10-pin 1.27mm pitch Arm Cortex-Debug connector
(J2) for software development and debug support
