US082-FS1015EVZ
FS1015 Pmod™ Board
The US082-FS1015EVZ board enables quick
prototyping of the FS1015 mass air velocity sensor
module for a custom system design. The board
provides a standard Pmod Type 6A (Extended I
connection for the onboard sensor to plug into any
MCU evaluation kit with a matching connector.
The US082-FS1015EVZ features Pmod connectors
on both sides of the board allowing additional Type
6/6A boards to be connected in a daisy-chained
solution with multiple sensors on the same MCU
Pmod connector. Because of the standard connector
and software support, the US082-FS1015EVZ is ideal
for the Renesas Quick-Connect IoT to rapidly create
an IoT system.
Kit Contents
▪ US082-FS1015EVZ Board
R36UZ0011EU0100 Rev.1.00
Jul 13, 2022
2
C)

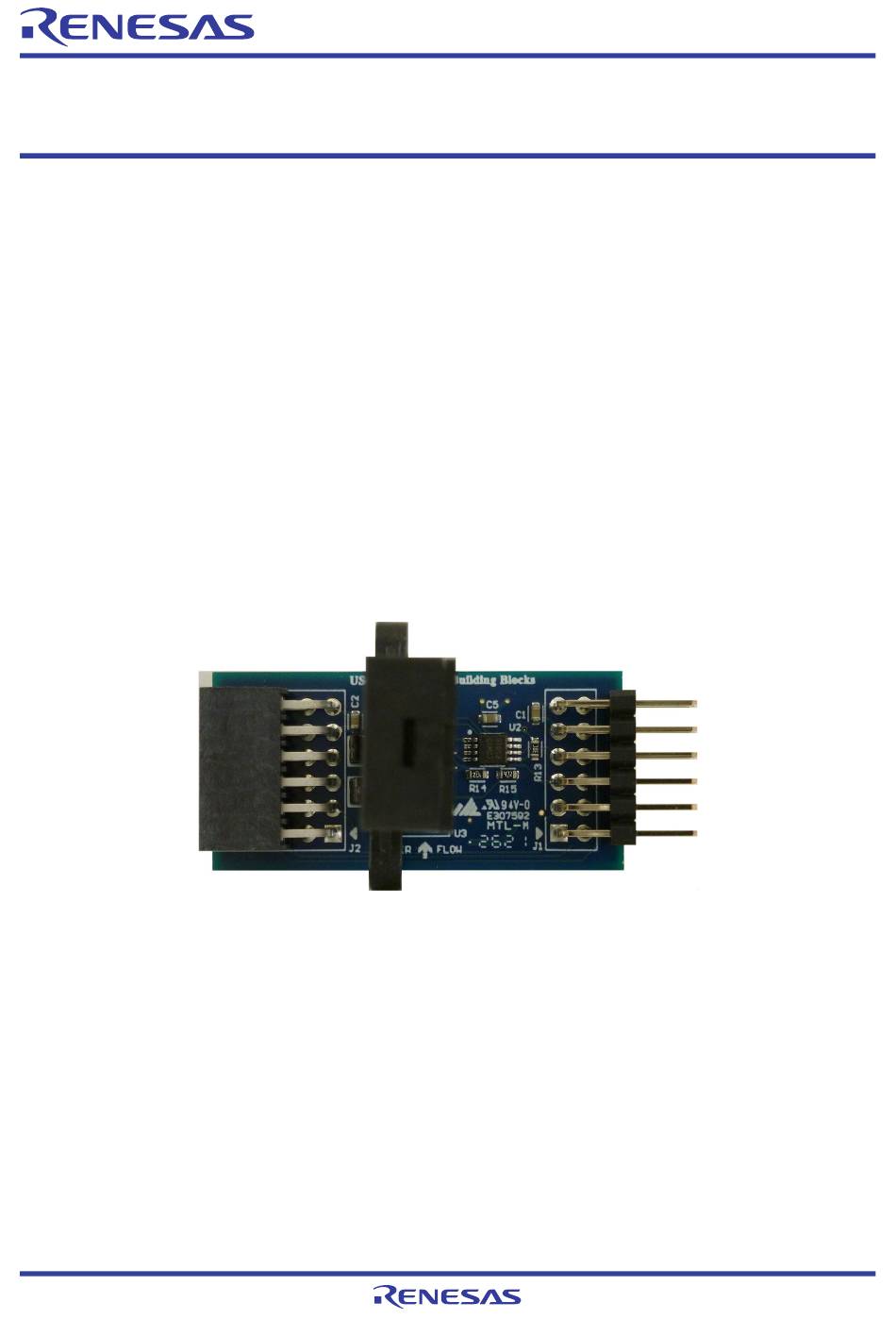

Figure 1. US082-FS1015EVZ Pmod Board
Evaluation Board Manual
Features
▪ FS1015 sensor sample mounted:
• Thermo-transfer (calorimetric) principle uses
MEMS thermocouples to measure flow, which
provide excellent signal-to-noise ratio
• Silicon-carbide coating protects from abrasive
wear and water condensation
• Digital and analog outputs
• Resistant to vibration and pressure shock
▪ Standardized Type 6A Pmod connector supports
2
I
C Extended interface
▪ Dual connectors allow pass-through signals for
daisy-chained solutions
Page 1
© 2022 Renesas Electronics
Advertisement
Table of Contents
Related Manuals for Renesas US082-FS1015EVZ
Summary of Contents for Renesas US082-FS1015EVZ
- Page 1 MCU Pmod connector. Because of the standard connector ▪ Standardized Type 6A Pmod connector supports and software support, the US082-FS1015EVZ is ideal C Extended interface for the Renesas Quick-Connect IoT to rapidly create ▪...
-
Page 2: Table Of Contents
US082-FS1015EVZ Evaluation Board Manual Contents Functional Description ..............3 Setup . -
Page 3: Functional Description
Functional Description The US082-FS1015EVZ functions as a sensor building block to create a custom system solution. Use the board individually or with a combination of other sensors by using the Pmod Type 6A interface. For a full list of available sensor Pmod boards, visit the Quick-Connect IoT website. -
Page 4: Software Installation And Usage
If no Type 6A Pmod is available, ensure the MCU evaluation kit can use the US082-INTERPEVZ interposer board and insert the board into the MCU connector before adding any sensor boards. 2. Plug in the US082-FS1015EVZ to the Type 6A connector, being careful to align Pin 1 on the sensor board and MCU kit. - Page 5 US082-FS1015EVZ Evaluation Board Manual 3. Connect the J4 and J5 jumpers to place 4.7k pull-up resistors on the I C bus lines. a. Only one set of pull-up resistors should be used on the I C bus lines. If multiple sensor boards are used, only one board should have the jumpers present.
-
Page 6: Board Design
1) Net VCC can be 3.3 or 5.0 volts DC 2) If 3.3V, 3.3V PMODs may be daisy chained downstream. 3) If 5.0V, only 5.0V PMODs may be connected downstream Figure 4. US082-FS1015EVZ Schematic Diagram R36UZ0011EU0100 Rev.1.00 Page 6 Jul 13, 2022... -
Page 7: Bill Of Materials
US082-FS1015EVZ Evaluation Board Manual Bill of Materials Reference Designator Description Value Manufacturer Part Number C1, C2, C5, C6 Capacitor, 0.1µF, 50V, 0603 0.1µF C0603C104J5RACTU 10µF, X5R, MLCC Ceramic capacitor 10µF CL21A106KOQNNNG 22µF, X5R, 10V MLCC Ceramic 22µF 0603ZD226MAT2A capacitor 22pF, 25V, COG-NPO... - Page 8 US082-FS1015EVZ Evaluation Board Manual Figure 6. Copper Top Figure 7. Copper L1 Layer Figure 8. Copper L2 Layer R36UZ0011EU0100 Rev.1.00 Page 8 Jul 13, 2022...
-
Page 9: Ordering Information
US082-FS1015EVZ Evaluation Board Manual Figure 9. Copper Bottom Figure 10. Silkscreen Bottom Ordering Information Part Number Description US082-FS1015EVZ FS1015 Pmod Board Revision History Revision Date Description 1.00 Jul 13, 2022 Initial release R36UZ0011EU0100 Rev.1.00 Page 9 Jul 13, 2022... - Page 10 Renesas' products are provided only subject to Renesas' Terms and Conditions of Sale or other applicable terms agreed to in writing. No use of any Renesas resources expands or otherwise alters any applicable warranties or warranty disclaimers for these products.
