US082-FS2012EVZ
The US082-FS2012EVZ board enables quick
prototyping for a custom system design with the
FS2012 mass air flow sensor module. The board
provides a standard Pmod™ Type 6A (Extended I
connection for the on-board sensor to plug into any
MCU evaluation kit with a matching connector.
The US082-FS2012EVZ features Pmod connectors
on both sides of the board allowing additional Type
6/6A boards to be connected in a daisy-chained
solution with multiple sensors on the same MCU
Pmod connector. Because of the standard connector
and software support, the US082-FS2012EVZ is the
best choice to rapidly create an IoT system with the
Renesas Quick-Connect IoT.
R36UZ0007EU0100 Rev.1.0
Jun 30, 2021
2
C)

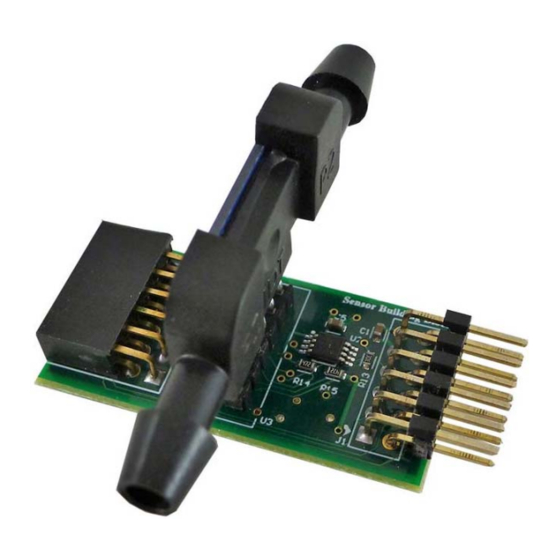

Figure 1. US082-FS2012EVZ Pmod Board
Evaluation Board Manual
Features
▪ FS2012 sensor sample mounted:
• Thermo-transfer (calorimetric) principle uses
MEMS thermocouples to measure flow, which
provide excellent signal-to-noise ratio
• Resistant to surface contamination
• No cavity to cause clogging
• Resistant to vibration and pressure shock
▪ High-temperature flow housing
▪ Standardized Type 6A Pmod connector supports
2
I C Extended interface
▪ Dual connectors allow pass-through signals for
daisy-chained solutions
Board Contents
▪ US082-FS2012EVZ Board
