US159-DA14531EVZ
DA14531 Pmod™ Board
The US159-DA14531EVZ is a low power Bluetooth
Pmod module that enables you to add a low power
Bluetooth™ capability to any evaluation kit or MCU
board equipped with a Pmod expansion capability.
The board provides a standard Pmod Type 3A
(expanded UART) connection for the onboard
Bluetooth 5.1 module.
The US159-DA14531EVZ features a Type 3A Pmod
connector and incorporates the DA14531 SmartBond
TINY™ Module, which uses the efficient Bluetooth 5.1
SoC. With a standard connector and software
support, the US159-DA14531EVZ is ideal for the
Renesas Quick-Connect IoT to rapidly create an IoT
system.
Kit Contents
▪ US159-DA14531EVZ Pmod Board
R15UZ0004EU0100 Rev.1.00
Jun 27, 2022

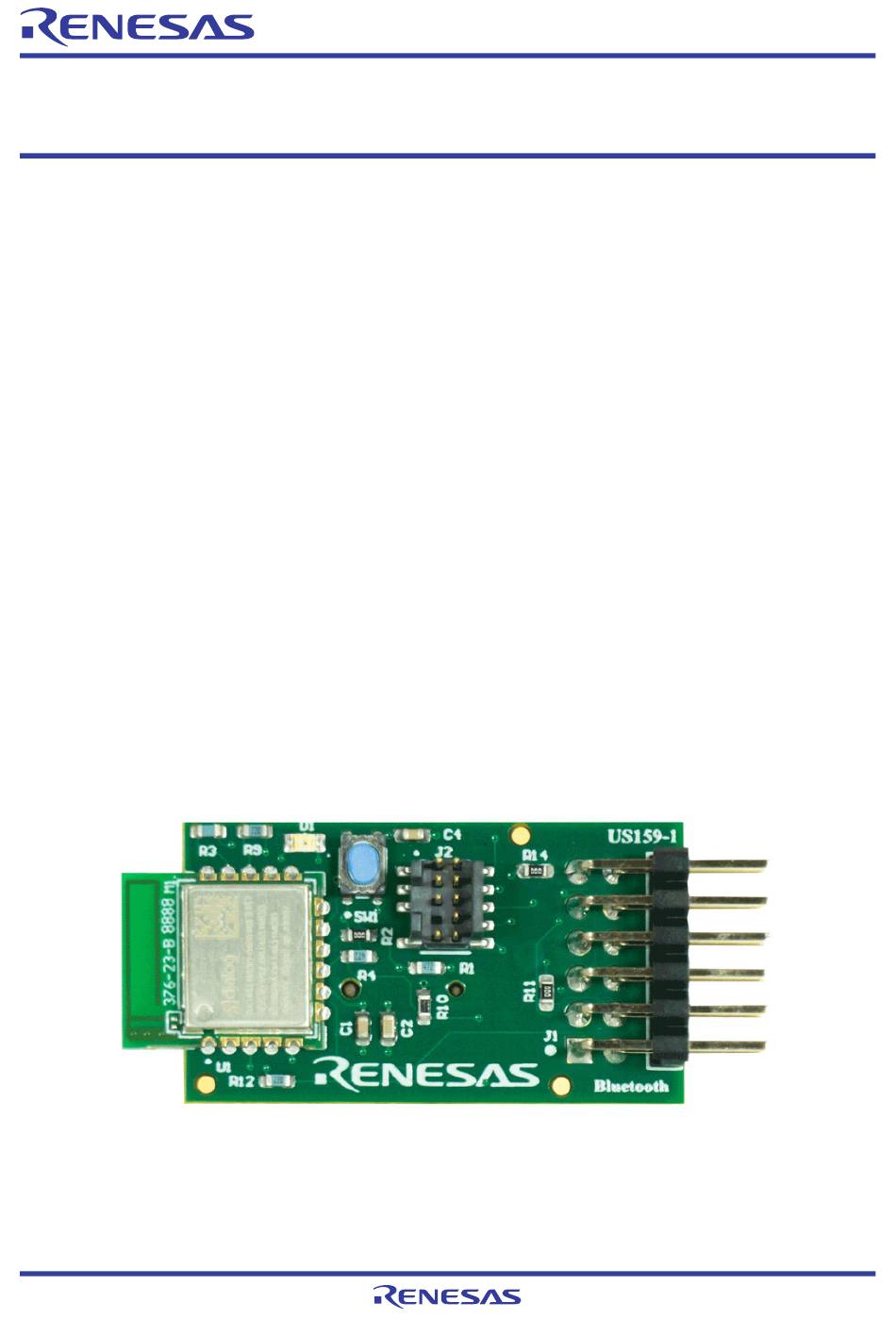

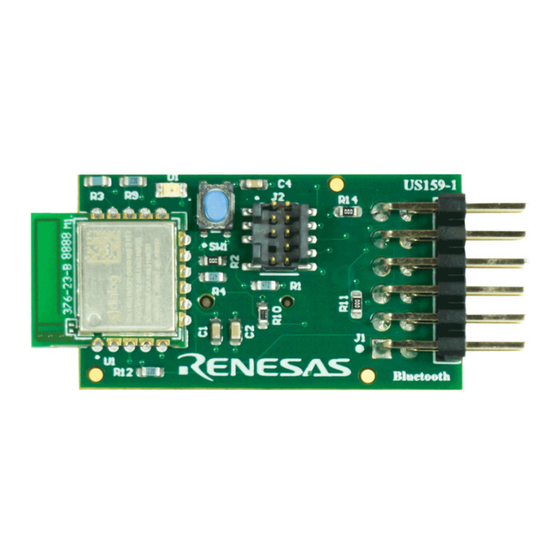

Figure 1. US159-DA14531EVZ Pmod Board (XE Evaluation Board)
Evaluation Board Manual
Features
▪ DA14531 SmartBond TINY Module
• Cortex M0+ at 16 MHz
• Memory: 4kB RAM, 32kB OTP and 1Mb Flash
• Bluetooth 5.1 core qualified
• Integrated chip antenna
• Worldwide certification
• IoTMark™, BLE score of 18300
• 3.3V supply voltage
• +2.2dBm maximum output power
• -93dBm sensitivity
• Rx current 2mA at 3.3V
• Tx current 4mA at 3.3V at 0dBm
▪ Standardized Type 3A Pmod connector supports
an expanded UART interface
▪ Optional battery operation with onboard CR1220
coin cell
▪ Momentary pushbutton switch (SW1) to aid in user
software debug
▪ LED (D1) to aid in user software debug
▪ 10-pin 1.27mm pitch Arm Cortex-Debug connector
(J2) for software development and debug support
