Renesas US082-OB1203EVZ Manual

US082-OB1203EVZ
The US082-OB1203EVZ Board enables quick
prototyping for a custom system design with the
OB1203, a multi-channel light sensor (LS/CS),
proximity sensor (PS), and photoplethysmography
sensor (PPG). The board provides a standard
Pmod™ Type 6A (Extended I
on-board sensor to plug into any MCU evaluation kit
with a matching connector.
The US082-OB1203EVZ features Pmod connectors
on both sides of the board allowing additional Type
6/6A boards to be connected in a daisy-chained
solution with multiple sensors on the same MCU
Pmod connector. Because of the standard connector
and software support, the US082-OB1203EVZ is the
best choice to rapidly create an IoT system with the
Renesas Quick-Connect IoT.
R36UZ0005EU0100 Rev.1.0
Jun 15, 2021
2
C) connection for the

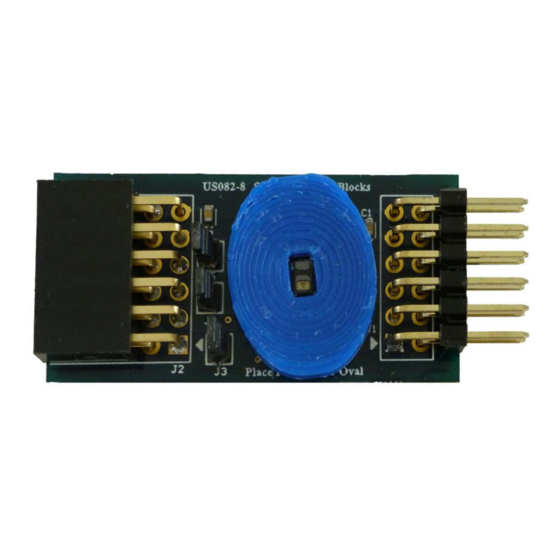

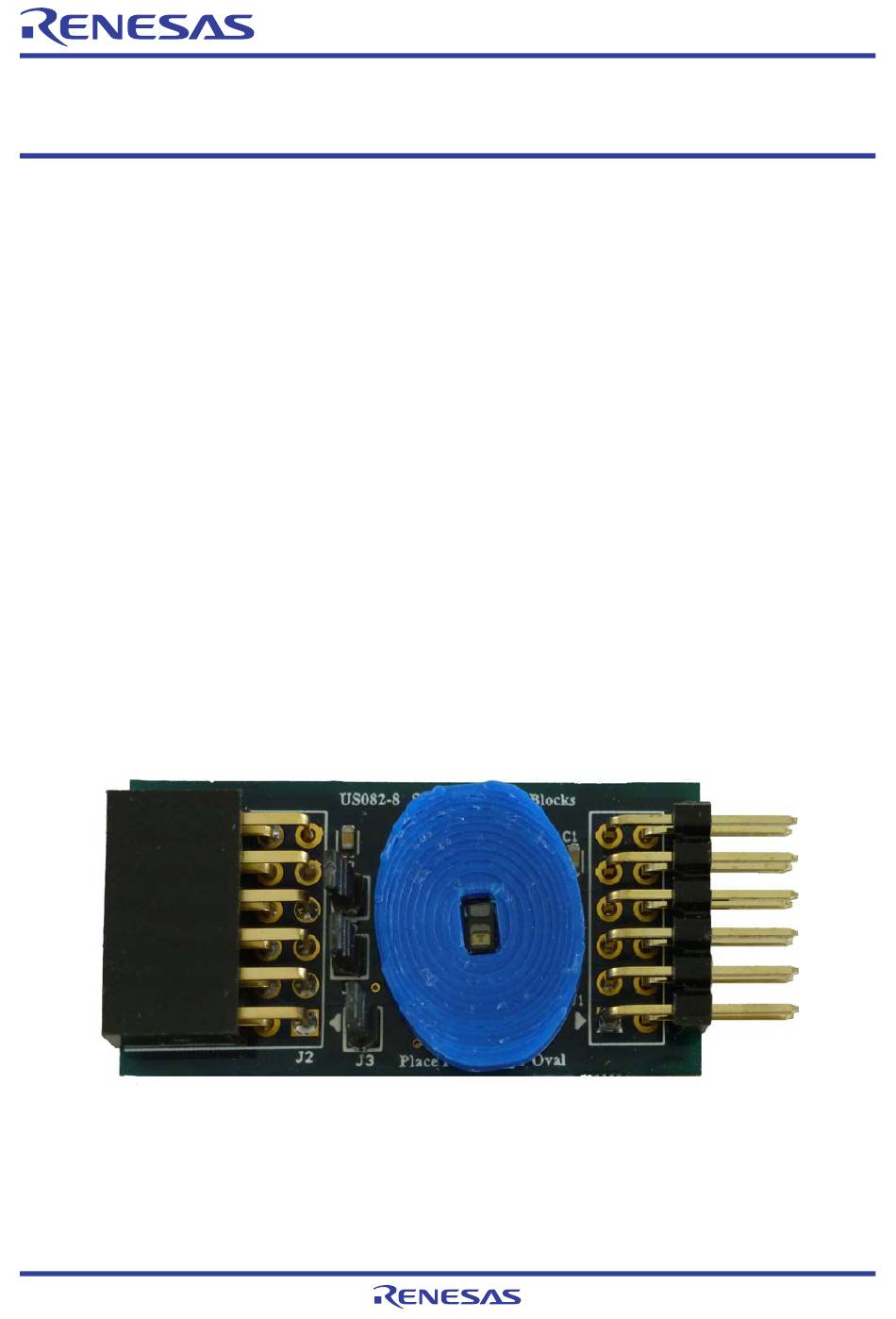

Figure 1. US082-OB1203EVZ Pmod Board
Evaluation Board Manual
Features
▪ OB1203 sensor sample mounted:
• Fully integrated and trimmed module that
includes two LEDs, 250mA maximum drive
current, and photodetectors for SpO
measurements
• High lux accuracy over different light sources,
with absolute sensitivity of 0.06 lux to >150000
lux
• Four parallel channels for measuring red, green,
blue, and clear with accurate correlated color
temperature (CCT) and CIE 1931 XYZ (RGB)
color measurement
• Object movement detection (in/out)
▪ Standardized Type 6A Pmod connector supports
2
I C Extended interface
▪ Dual connectors allow pass-through signals for
daisy-chained solutions
Board Contents
▪ US082-OB1203EVZ Board
2
