US082-ZMOD4410EVZ
The US082-ZMOD4410EVZ board enables quick
prototyping of the
ZMOD4410
indoor air quality (IAQ) in a custom system design.
The board provides a standard Pmod™ Type 6A
2
(Extended I
C) connection for the on-board sensor to
plug into any required MCU evaluation kit with a
matching connector.
The US082-ZMOD4410EVZ features Pmod
connectors on both sides of the board to allow
additional Type 6/6A boards to be connected in a
daisy-chained solution with multiple sensors on the
same MCU Pmod connector. Software support
present in the Renesas IDE (e
generation to connect the sensor and the MCU
significantly reducing development time. Because of
the standard connector and software support, the
US082-ZMOD4410EVZ is the best choice to rapidly
create an IoT system with the Renesas
Quick-Connect IoT.
R36UZ0002EU0100 Rev.1.0
Jun 10, 2021
gas sensor module for
2
studio) provides code

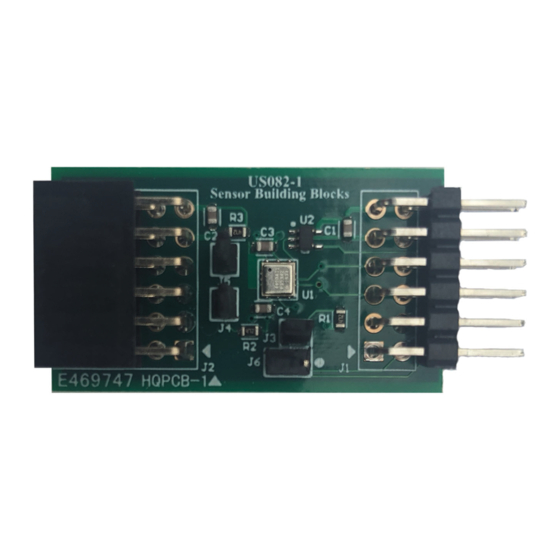

Figure 1. US082-ZMOD4410EVZ Pmod Board
Evaluation Board Manual
Features
▪ Gas sensor module for indoor air quality
ZMOD4410 sensor sample mounted:
• Measurement of total organic compounds
(TVOC) concentrations and IAQ
• Module algorithm estimates carbon dioxide level
(eCO
)
2
• Algorithm to discriminate sulfur-based odors
▪ Standardized Type 6A Pmod connector supports
2
I
C Extended interface
▪ Dual connectors allow pass-through signals for
daisy-chained solutions
▪ Software support in e
development time with one-click code generation
Board Contents
▪ US082-ZMOD4410EVZ Board
2
studio minimizes
Page 1
© 2021 Renesas Electronics

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the US082-ZMOD4410EVZ and is the answer not in the manual?

Questions and answers

Related Manuals for Renesas US082-ZMOD4410EVZ

Summary of Contents for Renesas US082-ZMOD4410EVZ

  • Page 1 Because of development time with one-click code generation the standard connector and software support, the US082-ZMOD4410EVZ is the best choice to rapidly Board Contents create an IoT system with the Renesas ▪ US082-ZMOD4410EVZ Board Quick-Connect IoT.

  • Page 2: Table Of Contents

    US082-ZMOD4410EVZ Evaluation Board Manual Contents Functional Description ..............3 Setup .

  • Page 3: Functional Description

    US082-ZMOD4410EVZ Evaluation Board Manual Functional Description The US082-ZMOD4410EVZ functions as a sensor building block to create a custom system solution. It can be used individually or with a combination of other sensors using the Pmod Type 6A interface. See Renesas Quick- Connect IoT for a list of available sensor Pmod boards.

  • Page 4: Setup

    If no Type 6A Pmod is available, ensure the MCU evaluation kit can use the US082-INTERPEVZ interposer board and insert the board into the MCU connector before adding any sensor boards. 2. Plug in the US082-ZMOD4410EVZ to the Type 6A connector, being careful to align Pin 1 on the sensor board and MCU kit.

  • Page 5: Programming Interface

    = p_zmod4xxx_api->measurementStart(p_zmod4xxx_ctrl); // Start measuring err = p_zmod4xxx_api->read(p_zmod4xxx_ctrl, &gs_zmod4410_raw_data, NULL);//Get data 4. Use the data in your given application. Sample projects are available on the Renesas website as well. For more information on creating your full system design, further information on software development, and additional hardware availability, visit Renesas Quick-Connect IoT.

  • Page 6: Board Design

    US082-ZMOD4410EVZ Evaluation Board Manual Board Design Figure 5. US082-ZMOD4410EVZ Evaluation Board (Top) Figure 6. US082-ZMOD4410EVZ Evaluation Board (Top) R36UZ0002EU0100 Rev.1.0 Page 6 Jun 10, 2021...

  • Page 7: Schematic Diagrams

    US082-ZMOD4410EVZ Evaluation Board Manual Schematic Diagrams 0603 0603 0603 4.7k 4.7k 4.7k PMOD Interface Slave PMOD Interface System BUSY# IRQ# BUSY# ENABLE RES_N ENABLE POWER_ON IIC_SCL POWER_ON GPIO4 IIC_SDA GPIO4 0.1uF, 50V 0.1uF, 50V 0.1uF, 50V 0.1uF, 50V ZMOD4410 LOGO1...

  • Page 8: Board Layout

    US082-ZMOD4410EVZ Evaluation Board Manual Board Layout Figure 8. Silkscreen Top Layer Figure 9. Top Layer Figure 10. Layer 1 Figure 11. Layer 2 Figure 12. Bottom Layer Figure 13. Silkscreen Bottom Layer R36UZ0002EU0100 Rev.1.0 Page 8 Jun 10, 2021...

  • Page 9: Ordering Information

    US082-ZMOD4410EVZ Evaluation Board Manual Ordering Information Part Number Description US082-ZMOD4410EVZ ZMOD4410 Pmod Board US082-INTERPEVZ Pmod interposer board to convert Type 2A and 3A to Type 6A on older Renesas MCU kits. Revision History Revision Date Description Jun 10, 2021 Initial release R36UZ0002EU0100 Rev.1.0...
