Wi-Fi Enabled Cloud IoT Solution Kit
This quick start guide describes the setup and use of the Wi-Fi Enabled Cloud IoT Solution Kit. In this demo, the
current temperature and humidity values of HS3001, and how many times a key on the EK-RA6M4 is pressed, are
captured and displayed on the web using HTTP protocol. Also, the light on the LED for the EK-RA6M4 can be set
up to be controlled by a UI button using HTTP protocol.

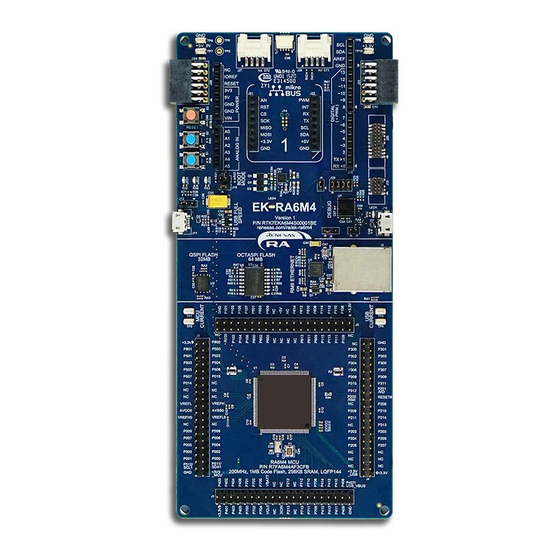

This guide can help kick-start your development on the DA16200 (a Wi-Fi module), and the EK-RA6M4 (an
evaluation kit for the RA6M4 MCU group).
Target Device
▪ RA6M4 (R7FA6M4AF3CFB)
▪ DA16200 PMOD
▪ HS3001
Contents
1.
Kit Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.1
Hardware Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.2
Software Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2.
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
3.
Set Up the Demo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
3.1
Download Code to EK-RA6M4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
3.2
Connect the Solution Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3.3
Run the Solution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3.4
Debug the Project . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
4.
Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
R12QS0049EU0100 Rev.1.00
Aug 27, 2021
Quick Start Guide
Page 1
© 2021 Renesas Electronics
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Renesas EK-RA6M4
Summary of Contents for Renesas EK-RA6M4
-
Page 1: Table Of Contents
HS3001, and how many times a key on the EK-RA6M4 is pressed, are captured and displayed on the web using HTTP protocol. Also, the light on the LED for the EK-RA6M4 can be set up to be controlled by a UI button using HTTP protocol. -
Page 2: Kit Contents
Hardware Components ▪ EK-RA6M4 ▪ DA16200 PMOD (US159-DA16200MEVZ) ▪ HS3001 PMOD (US082-HS3001EVZ) ▪ US082-INTERPEVZ Board, a standard Pmod™ Type 6A (Extended I C) connector to compatible Renesas MCU kits ▪ Micro USB cable Figure 1. Hardware Components Software Components The following software components are needed:... -
Page 3: Features
▪ Initialize and control Wi-Fi module DA16200 by AT command to realize HTTP protocol ▪ Control LED1 on EK-RA6M4 to on, off or blink by selecting related button on the specific webpage Set Up the Demo... -
Page 4: Connect The Solution Kit
If these two boards have already been plugged in at programming, after checking the correct set of jumpers, restart the system by pressing RESET button (E3) on EK-RA6M4 or powering off and on the system again, causing the program to run. -
Page 5: Run The Solution
Wi-Fi Enabled Cloud IoT Solution Kit Quick Start Guide Run the Solution 1. Open JLinkRTTViewer.exe in the JLink folder, which is unzipped at Step 2, specify the target device as R7FA6M4AF, change RTT control block from Auto Detection to Search Range and input 0x20002c4c 0x1000 to the blank block shown below. - Page 6 Wi-Fi Enabled Cloud IoT Solution Kit Quick Start Guide 2. After Wifi setting OK, please connect Wi-Fi or open http client appears in Figure 5, find Renesas_Wifi in the wireless network and enter the network security key of 12345678, finishing the connection between PC or smartphone with this solution kit.
-
Page 7: Debug The Project
Debug the Project If you want to debug the project of this solution, download e2 studio 2021-04 or above and fsp v3.1.0 from the Renesas website, open the Code folder, and import the project into the e2 studio. Revision History... -
Page 8: Appendix
EK-RA6M4 Renesas DA16200 Dialog DA16200MOD Dialog HS3001 Renesas US082-HS3001EVZ Renesas US082-INTERPEVZ Renesas Technical Updates/Technical News (The latest information can be downloaded from the Renesas Electronics Website.) Website and Support Renesas Electronics Website Support R12QS0049EU0100 Rev.1.00 Page 8 Aug 27, 2021... - Page 9 Unit Products The following usage notes are applicable to all Microprocessing unit and Microcontroller unit products from Renesas. For detailed usage notes on the products covered by this document, refer to the relevant sections of the document as well as any technical updates that have been issued for the products.
