Renesas FS3000 Pmod Manual

US082-FS3000EVZ
FS3000 Pmod™ Board
The US082-FS3000EVZ board enables quick
prototyping of the FS3000 mass air velocity sensor
module for a custom system design. The board
provides a standard Pmod Type 6A (Extended I
connection for the onboard sensor to plug into any
MCU evaluation kit with a matching connector.
The US082-FS3000EVZ features Pmod connectors
on both sides of the board allowing additional Type
6/6A boards to be connected in a daisy-chained
solution with multiple sensors on the same MCU
Pmod connector. Because of the standard connector
and software support, the US082-FS3000EVZ is ideal
for the Renesas Quick-Connect IoT to rapidly create
an IoT system.
Kit Contents
▪ US082-FS3000EVZ Board
R36UZ0012EU0100 Rev.1.00
Jul 13, 2022
2
C)

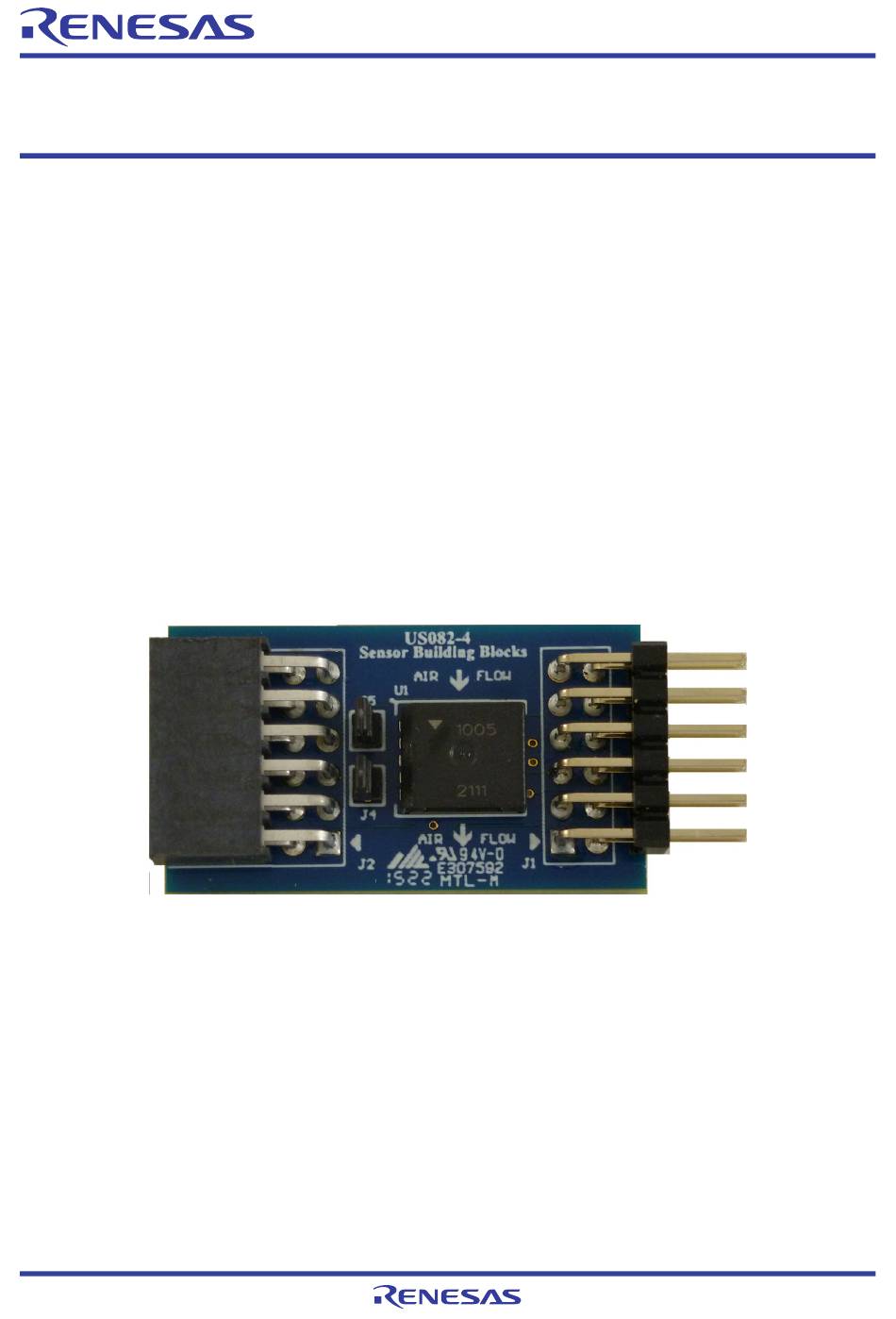

Figure 1. US082-FS3000EVZ Pmod Board
Evaluation Board Manual
Features
▪ FS3000 sensor sample mounted:
• Thermo-transfer (calorimetric) principle uses
MEMS thermocouples to measure flow, which
provide excellent signal-to-noise ratio
• Silicon-carbide coating protects from abrasive
wear and water condensation
• Digital output with 12-bit resolution
• Resistant to vibration and pressure shock
▪ Standardized Type 6A Pmod connector supports
2
I C Extended interface
▪ Dual connectors allow pass-through signals for
daisy-chained solutions
Page 1
© 2022 Renesas Electronics
