US082-INTERPEVZ
The US082-INTERPEVZ Board provides a standard
Pmod™ Type 6A (Extended I
compatible Renesas MCU kits. The board plugs into
the existing Type 2A or 3A Pmod on the MCU board
and interposes key pins to create a Type 6A
connector.
The US082-INTERPEVZ features Pmod connectors
on both sides of the board allowing additional Type
6/6A boards to be connected in a daisy-chained
solution with multiple sensors on the same MCU
Pmod connector. Because of the standard connector,
the US082-INTERPEVZ is the best choice to rapidly
create an IoT system with the Renesas Quick-
Connect IoT.
R36UZ0006EU0100 Rev.1.0
Jun 15, 2021
2
C) connector to

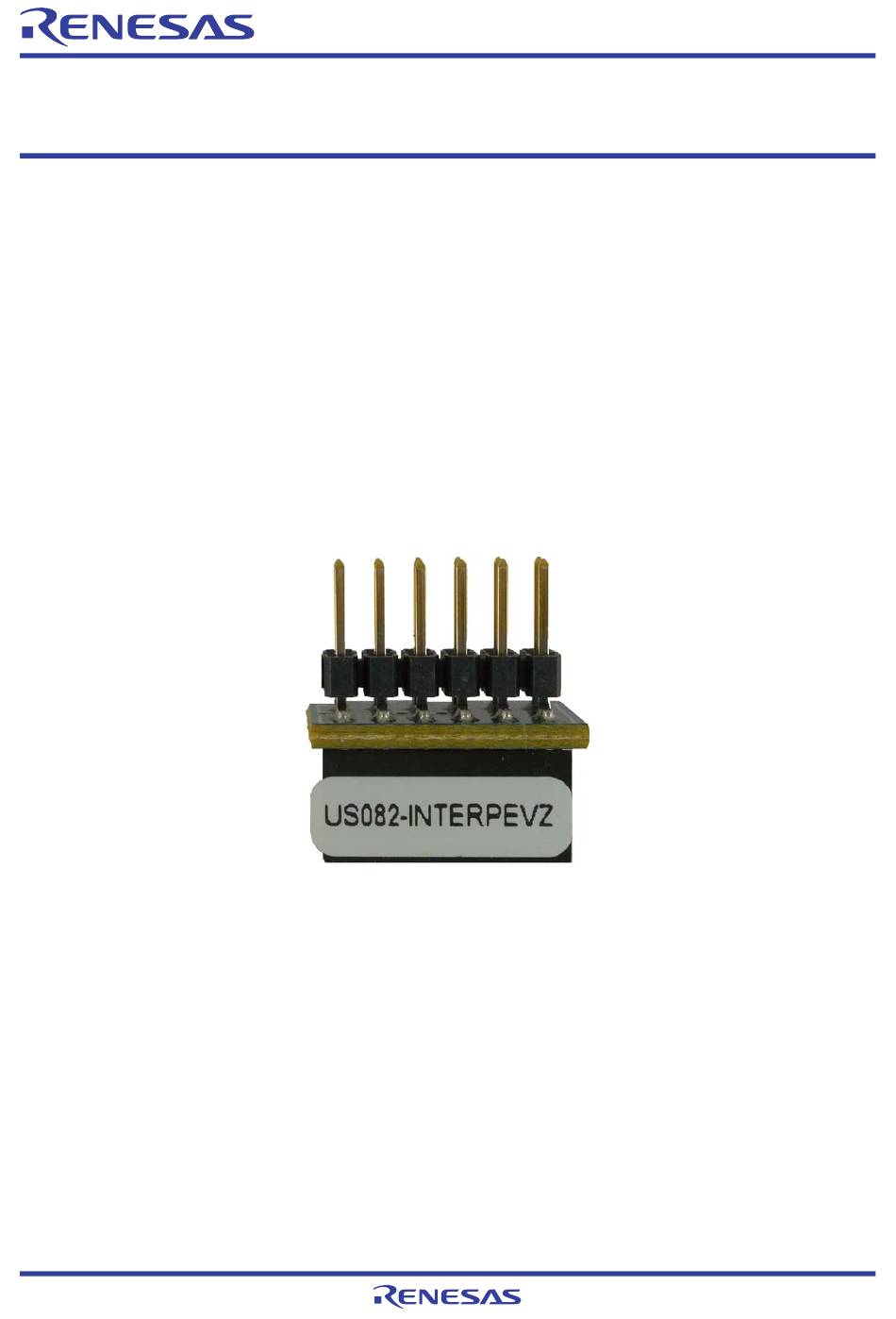

Figure 1. US082-INTERPEVZ Pmod Board
Evaluation Board Manual
Features
▪ Corrects the pinout of a Pmod on compatible
Renesas MCU evaluation kits providing a
standardized Type 6A Pmod connector for an I
Extended interface.
Board Contents
▪ US082-INTERPEVZ Board
Page 1
© 2021 Renesas Electronics
2
C
