RL78/G22

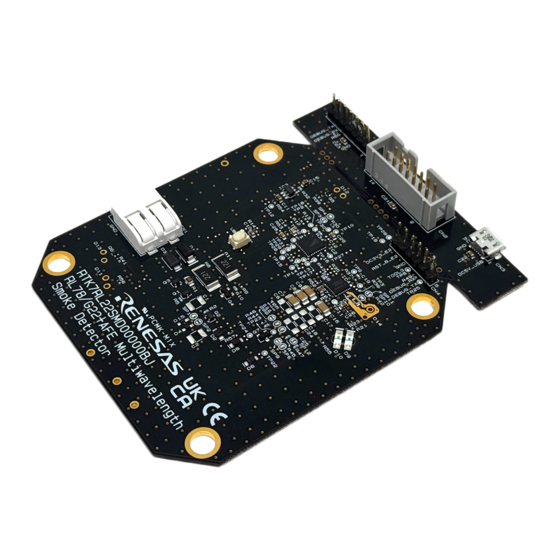

Multiwavelength Smoke Detector Evaluation Board
1. Introduction
1.1 Scope of this document
The purpose of this Quick Start Guide is to explain the initial settings and procedures required to use the
Multiwavelength Smoke Detector POC board (POC board) and sample software.
The Multiwavelength Smoke Detector is based on a function that combines a smoke chamber with a POC
substrate and uses up to three LEDs (transmit light source) to generate light and a photodiode (receive
photodetector) to detect light. The two elements, the LED and the photodiode, are located at an angle of
about 140 degrees so that the light beam does not fall directly on the photodiode. As ambient smoke enters
the smoke chamber, the transmitted light is scattered with these smoke particles and received by the
detector, which activates an alarm as a fire alarm if it exceeds the set threshold.
1.2 Documents available in the POC
The following documents for POC boards are available as *.pdf files.
• RL78/G22 Multiwavelength Smoke Detector Evaluation Board User's Manual: Hardware
(R01UH1161EJ0100)
• RL78/G22 Multiwavelength Smoke Detector Evaluation Board User's Manual: Software
(R01US0776EJ0100)
• RL78/G22 Multiwavelength Smoke Detector Evaluation Board Quick Start Guide (R01QS0080EJ0100)
• RL78/G22 Multiwavelength Smoke Detector Reference Design Application Note (R12AN0141EJ0100)
For more information about POC boards, please contact your Renesas sales representative.
R01QS0080EJ0100 Rev.1.00
Feb.20.25
Quick Start Guide
Page 1 of 10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RL78/G22 and is the answer not in the manual?

Questions and answers

Summary of Contents for Renesas RL78/G22

  • Page 1 • RL78/G22 Multiwavelength Smoke Detector Evaluation Board User’s Manual: Software (R01US0776EJ0100) • RL78/G22 Multiwavelength Smoke Detector Evaluation Board Quick Start Guide (R01QS0080EJ0100) • RL78/G22 Multiwavelength Smoke Detector Reference Design Application Note (R12AN0141EJ0100) For more information about POC boards, please contact your Renesas sales representative.
  • Page 2 RL78/G22 Multiwavelength Smoke Detector Evaluation Board 2. Layout of main components of POC board ⑤ ⑥ ④ ③ ② ① ⑧ ⑦ ① User Serial connector (for debugging) ② E2_Lite connector (for debugging) ③ USB power supply (for debugging) ④ Debugging connector (for debugging) ⑤...
  • Page 3: Leds And Buttons

    RL78/G22 Multiwavelength Smoke Detector Evaluation Board 3. POC board setup 3.1 POC board configuration In POC boards, connectors are mounted on the Add-On PCB for debugging. In addition, the Add-On PCB can be separated from the main PCB at the boundary. Depending on the use case, separate the board before use.
  • Page 4 RL78/G22 Multiwavelength Smoke Detector Evaluation Board 3.3 Connecting the E2 Lite emulator The E2 Lite emulator can be installed programs, connected via the 14Pin connector on the Add-On PCB, shown in Figure3-2. E2 Lite Connectivity Figure3-2. Connecting the E2 Lite Emulator (Add-On PCB) Also, if you want to disconnect the Add-On PCB from the main PCB, you can install the program by connecting it via the debug connector on the Main PCB side shown in the Figure3-3.
  • Page 5 RL78/G22 Multiwavelength Smoke Detector Evaluation Board 3.4 Connecting the USB-to-Serial Converter It is possible to connect a USB serial converter and acquire measurement results as A/D conversion values. The USB-to-serial converter connects to the 7Pin connector on the Add-On PCB shown in the Figure3-4.
  • Page 6 RL78/G22 Multiwavelength Smoke Detector Evaluation Board 4. POC board power connection Connect the desired power supply to the connector on the POC board. The board offers a wide range of power options, including: • 24V~40VDC Normal Power Supply • 5VDC USB power supply •...
  • Page 7 RL78/G22 Multiwavelength Smoke Detector Evaluation Board 5. Descriptions and precautions for the use of POC substrate The POC board activates the "indicator LED (red)" as an alarm when smoke is detected. A significant amount of smoke particles is required to activate the alarm. If you want to obtain the measurement result as an A/D conversion value, connect the USB serial converter connected to the POC board to your PC as shown in Figure 5-1.
  • Page 8 RL78/G22 Multiwavelength Smoke Detector Evaluation Board 6. Nomenclature • IC Integrated Circuit • POC Proof Of Concept • SW Software • HW Hardware • MCU Micro Controller Unit • CPU Central Processing Unit • AFE Analog Front End • LED Light-Emitting Diode •...
  • Page 9 RL78/G22 Multiwavelength Smoke Detector Evaluation Board 7. References [1] RAA239101, RAA239102 Photoelectric Smoke Detector AFE IC (RAA239101_Datasheet_w239102added_woTrackEdits_woNotes_122121.pdf) [2] RL78/G22 User’s Manual: Hardware (r01uh0978ej0110-rl78g22.pdf) [3] SCHEMATIC DIAGRAM SMOKE DETECTOR (RENESAS_SMOKEDETECTOR_R1_20230309.pdf) [4] MCP1501 High-Precision Buffered Voltage Reference (Datasheet) (MCP1501_Data_Sheet_DS20005474-3499863.pdf) R01QS0080EJ0100 Rev.1.00 Page 9 of 10...
  • Page 10: Revision History

    RL78/G22 Multiwavelength Smoke Detector Evaluation Board Revision History Description / Summary Rev. Date page gist 1.00 2025.02.20 — Initial publication R01QS0080EJ0100 Rev.1.00 Page 10 of 10 Feb.20.25...
  • Page 11 Unit Products The following usage notes are applicable to all Microprocessing unit and Microcontroller unit products from Renesas. For detailed usage notes on the products covered by this document, refer to the relevant sections of the document as well as any technical updates that have been issued for the products.
  • Page 12: Corporate Headquarters

    You are responsible for implementing safety measures to guard against the possibility of bodily injury, injury or damage caused by fire, and/or danger to the public in the event of a failure or malfunction of Renesas Electronics products, such as safety design for hardware and software, including but not limited to redundancy, fire control and malfunction prevention, appropriate treatment for aging degradation or any other appropriate measures.
