Renesas DA16200 Pmod US159-DA16200MEVZ Manual

US159-DA16200MEVZ
DA16200 Pmod™ Board
The US159-DA16200MEVZ ultra-low power Wi-Fi
Pmod module enables you to add Wi-Fi capability to
any evaluation kit or MCU board equipped with a
Pmod expansion capability. The board provides a
standard Pmod Type 3A (expanded UART)
connection for the onboard Wi-Fi module.
The US159-DA16200MEVZ features a Type 3A
Pmod connector and incorporates the DA16200MOD
Module, which is based on the DA16200 SoC. With a
standard connector and software support, the
US159-DA16200MEVZ is ideal for the Renesas
Quick-Connect IoT to rapidly create an IoT system.
Kit Contents
▪ US159-DA16200MEVZ Pmod Board
R15UZ0005EU0100 Rev.1.00
Jun 27, 2022

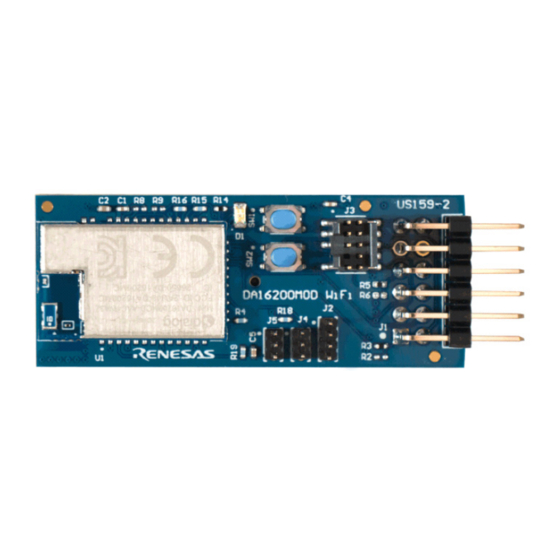

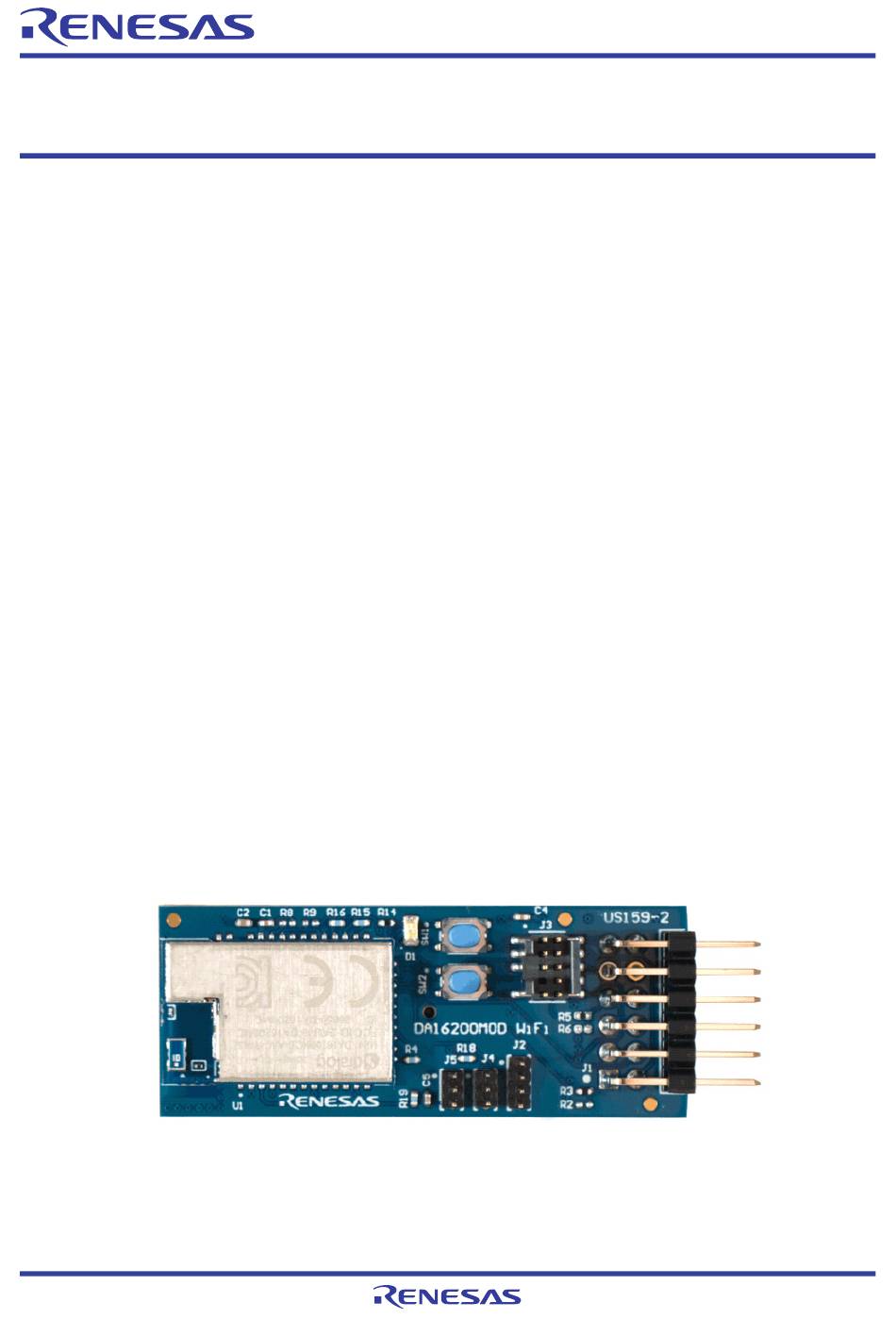

Figure 1. US159-DA16200MEVZ Pmod Board (XE Evaluation Board)
Evaluation Board Manual
Features
▪ DA16200MOD module
• Integrated chip antenna
• Cortex-M4F+ at 30MHz to 160MHz
• 802.11b/g/n radio PHY, 2.4GHz
• SoC runs full OS and TCP/IP stack
• Memory: 256kB ROM, 512kB RAM, 8kB OTP,
48B retention memory and 32Mb SPI Flash
• RF regulatory certifications: FCC, IC, CE, KC,
TELEC, SRRC
• Wi-Fi Alliance certifications:
Wi-Fi CERTIFIED b/g/n,
WPA, WPA2, and WPA3
• 3.3V supply voltage
• +20dBm range booster mode
• -100dBm Rx sensitivity
• Ultra-low power with 3 sleep modes:
(1) unconnected (nA), (2) connected ultra-low
(µA), and (3) connected ultra-fast (µA)
▪ Standardized Type 3A Pmod connector supports
an expanded UART interface
▪ Optional battery operation with onboard CR1220
coin cell
▪ LED (D1) to aid in user software debug
▪ 10-pin 1.27mm pitch Arm Cortex-Debug connector
(J2) for software development and debug support
