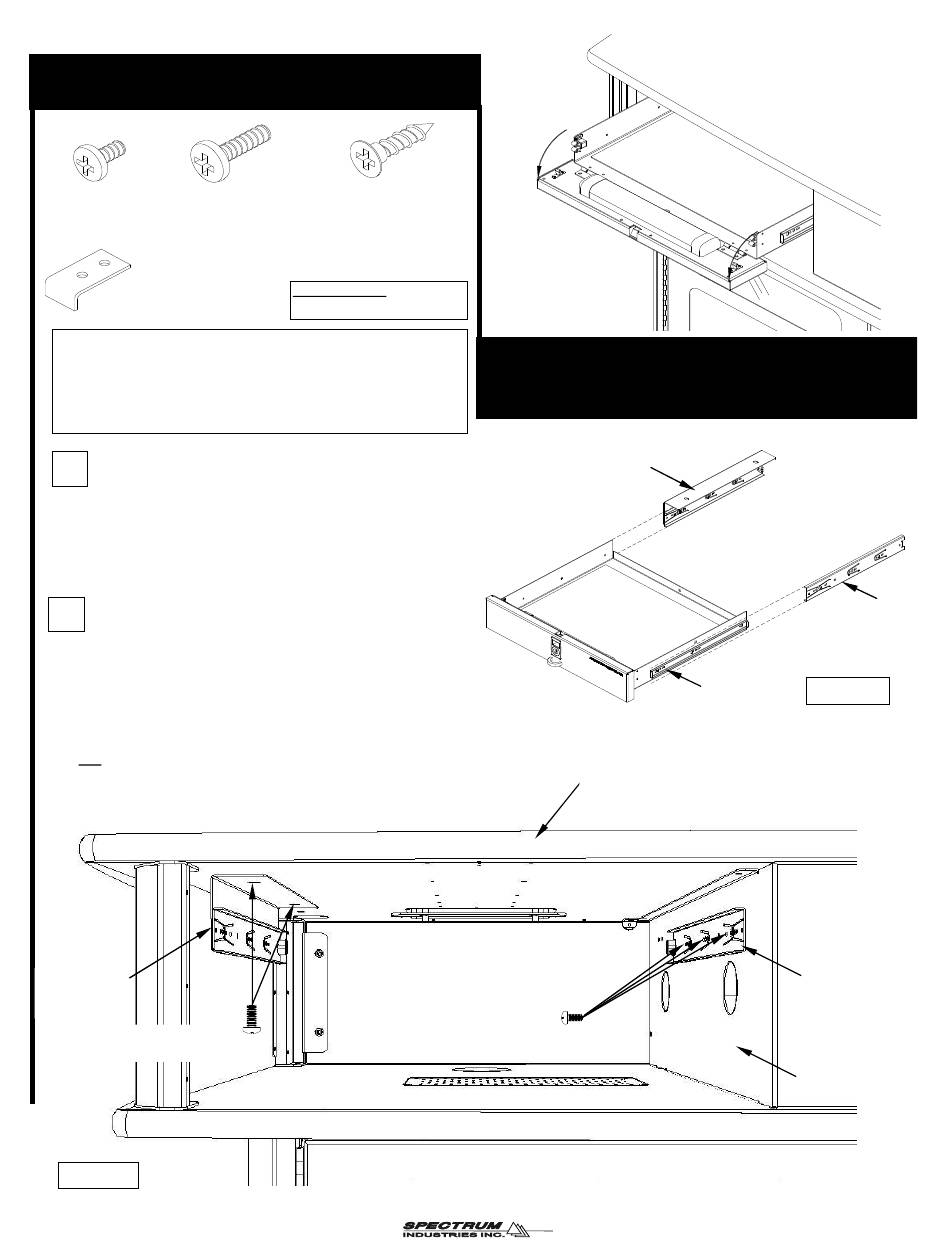

Assembly Instructions:
(3) 052901
(2) 026064
8-32 x 3/8 PHMS
1/4-20 x 5/8 PHMS
(1) 0101754
Lock Catch Plate
Before you begin, please make sure all parts and proper
quantities are included. Any parts damaged during shipment
must be reported within 15 days of receipt. To report
information regarding damages or if you have any questions,
please call 1-800-235-1262.
1.
Disassemble Both Slides
A. Disassemble the Outer Slides from the Inner Slides
by locating and depressing the black, plastic levers while
pulling the slides apart. Figure 1.
2.
Attach Slides
A. Attach the Right-Hand outer slide to the lectern Divider
Panel using (3) 8-32 x 3/8" PHM Screws, and tighten
securely. Figure 2.
B. Attach the Left-Hand outer slide and bracket to the
worksurface inserts using (2) 1/4-20 x 5/8" PHM Screws.
Do not tighten these screws completely at this point.
Figure 2.
LH Outer Slide
& Bracket
(2) 1/4-20 X 5/8"
PHM Screws
Figure 2
(2) 035950
#8 x 3/4" Hi-Lo Screw
Tools Required:
Phillips head screwdriver
(3) 8-32 x 3/8"
Doctorate/Masters
Drawer #55247
Left-hand outer
slide and bracket
Worksurface
PHM Screws
Right-hand
outer slide
Figure 1
Inner Slide
RH Outer Slide
Divider Panel
0101770X Page 1 of 2
