OPERATING INSTRUCTIONS
4.3 Mounting the device
en
5 Electrical installation
28 O P E R A T I N G I N S T R U C T I O N S | PowerProx Mini - WTT4SLC

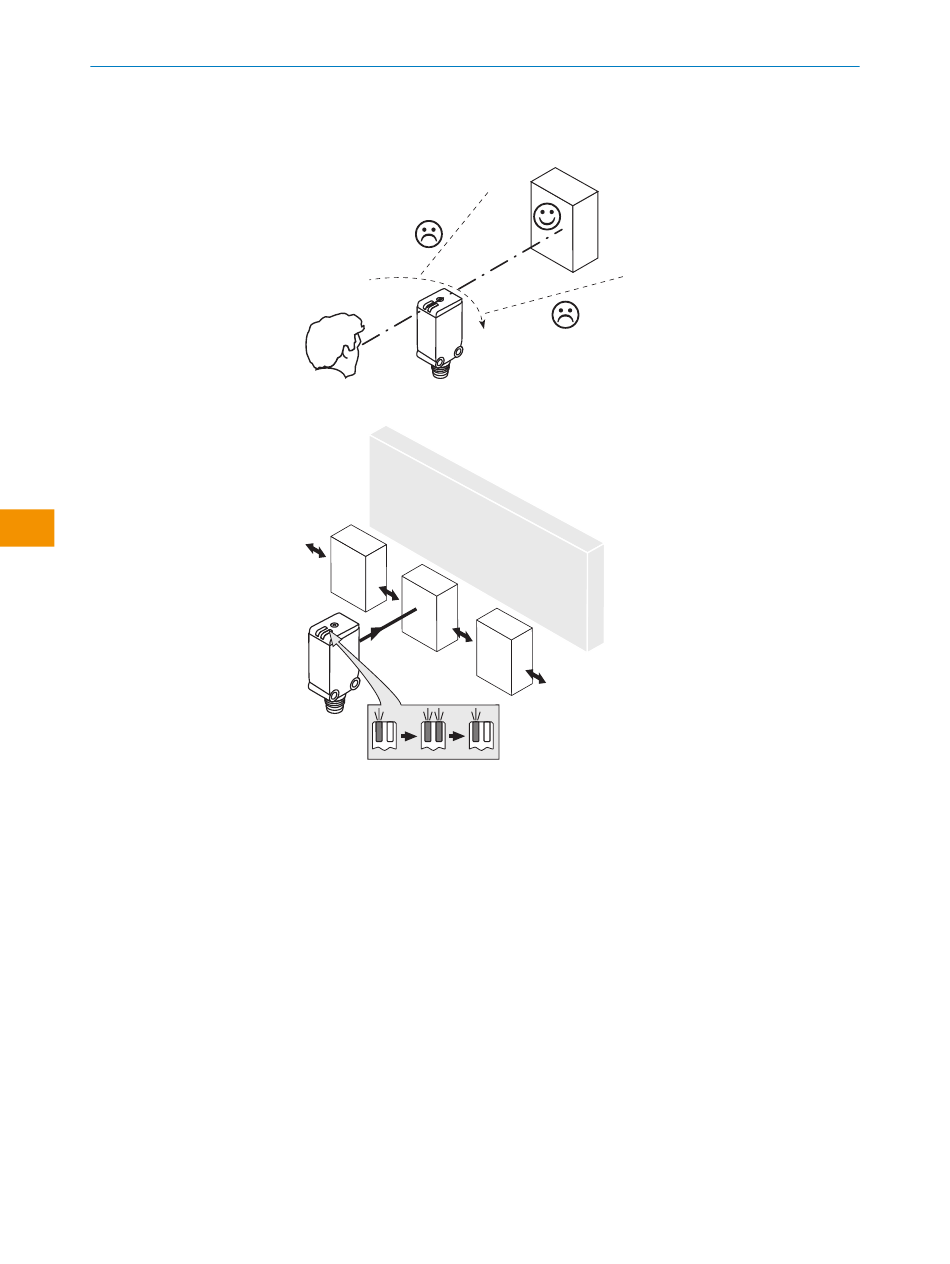

Figure 3: Sensor alignment
Figure 4: Standard direction
1. Mount the sensor using a suitable mounting bracket (see the SICK range of
accessories).
2. Note the sensor's maximum permissible tightening torque of 0.8 Nm.
3. Align the sensor with the object. Select the position so that the red emitted light
beam hits the center of the object. You must ensure that the optical opening (front
screen) of the sensor is completely clear.
4. Note the preferred direction of the object relative to the sensor.
page 28
The sensors must be connected in a voltage-free state. The following information must
be observed, depending on the connection type:
– Male connector connection: Pin assignment
– Cable: Wire color
Only apply voltage/switch on the voltage supply once all electrical connections have
been established.
see figure 3, page 28
see figure 4,
