3 Product description

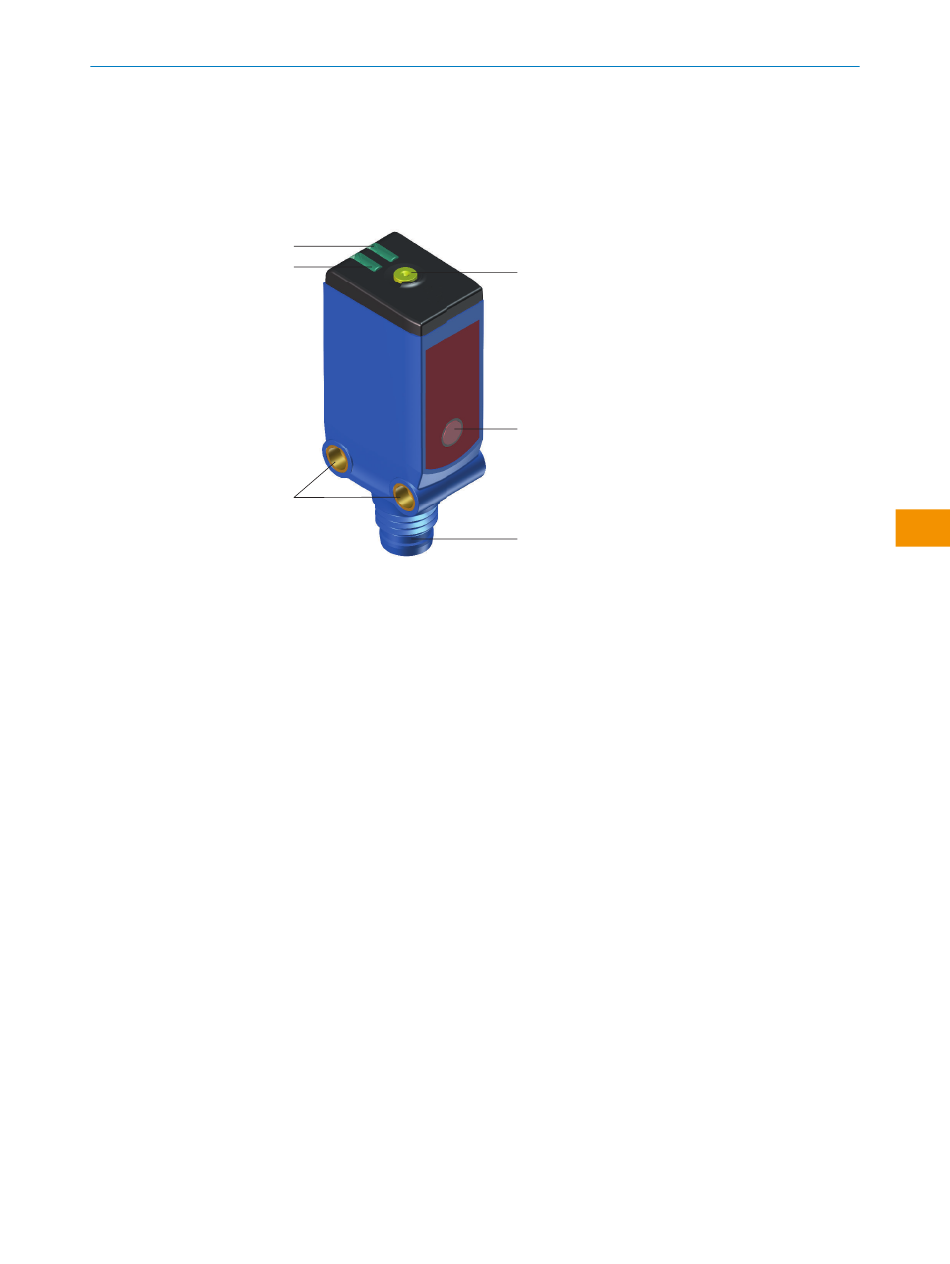

3.1 Device view
4 Mounting
4.1 Scope of delivery
4.2 Mounting requirements
8022570.1FBN/15.09.2022 | SICK
Subject to change without notice
1
2
3
Figure 2: Dimensional drawing
Green LED indicator: supply voltage active
1
Yellow LED indicator: status of received light beam
2
M3 threaded mounting hole
3
Connection
4
Single teach-in button for setting the sensing range
5
Optical axis, sender and receiver
6
• Photoelectric proximity sensor with time-of-flight technology in the version ordered
• Quickstart
•
Safety notes
• Typical space requirement for the device, see type-specific dimensional drawing,
see „Dimensional drawings", page
• Comply with technical data, such as the permitted ambient conditions for opera‐
tion of the device
OPERATING INSTRUCTIONS
5
6
4
37.
