10

Interface assignment

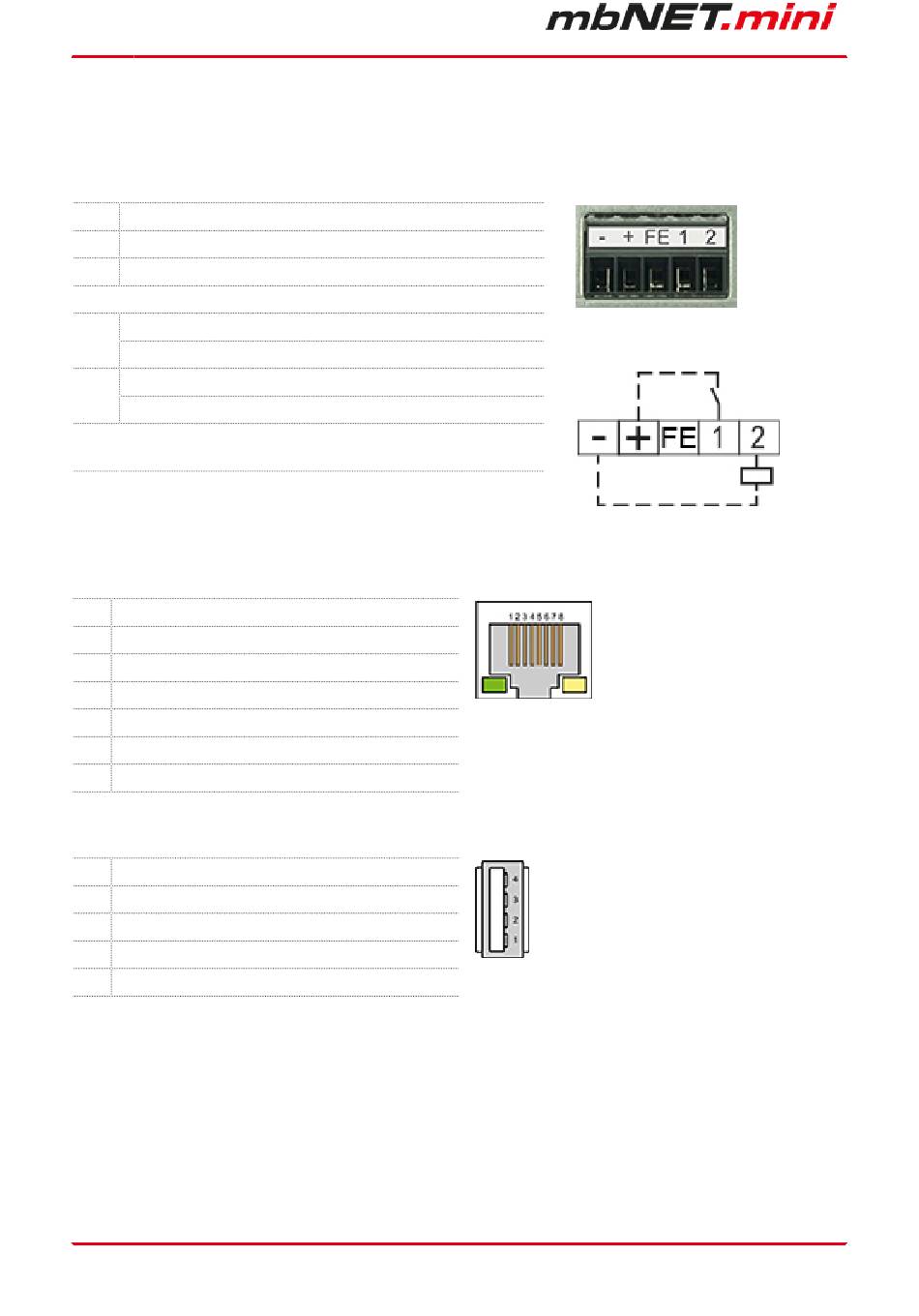

10.1 Pinout of the terminal block on the bottom of the device

- 0V DC connection
+ Power source connection 10-30V DC
FE Functional earth
Digital Input 1 (10 - 30V DC)
1 *
Digital Output 1 (max. 0.5 A @24 V)
Digital Input 1 (10 - 30V DC)
2 *
Digital Output 1 (max. 0.5 A @24 V)
* I/O 1 and I/O 2 can be configured independently of each other

10.2 Pinout of LAN/WAN ports on the front panel of the device

Signal
1 TX+
2 TX-
3 RX+
4 Not connected
5 Not connected
6 RX-

10.3 Pinout of the USB port on the front panel of the device

Signal
1 VCC (+5V)
2 - Data
3 +Data
4 GND
Page 18 von 131 | Version: 2.2.1 - EN | Mar 28
I/O
as digital input or digital output.
th , 2022 |
Image 1: Terminal strip on the bottom side
Image 2: Example: I/O 1 = input, I/O 2 = output
