V5 X VRF 460V 60Hz

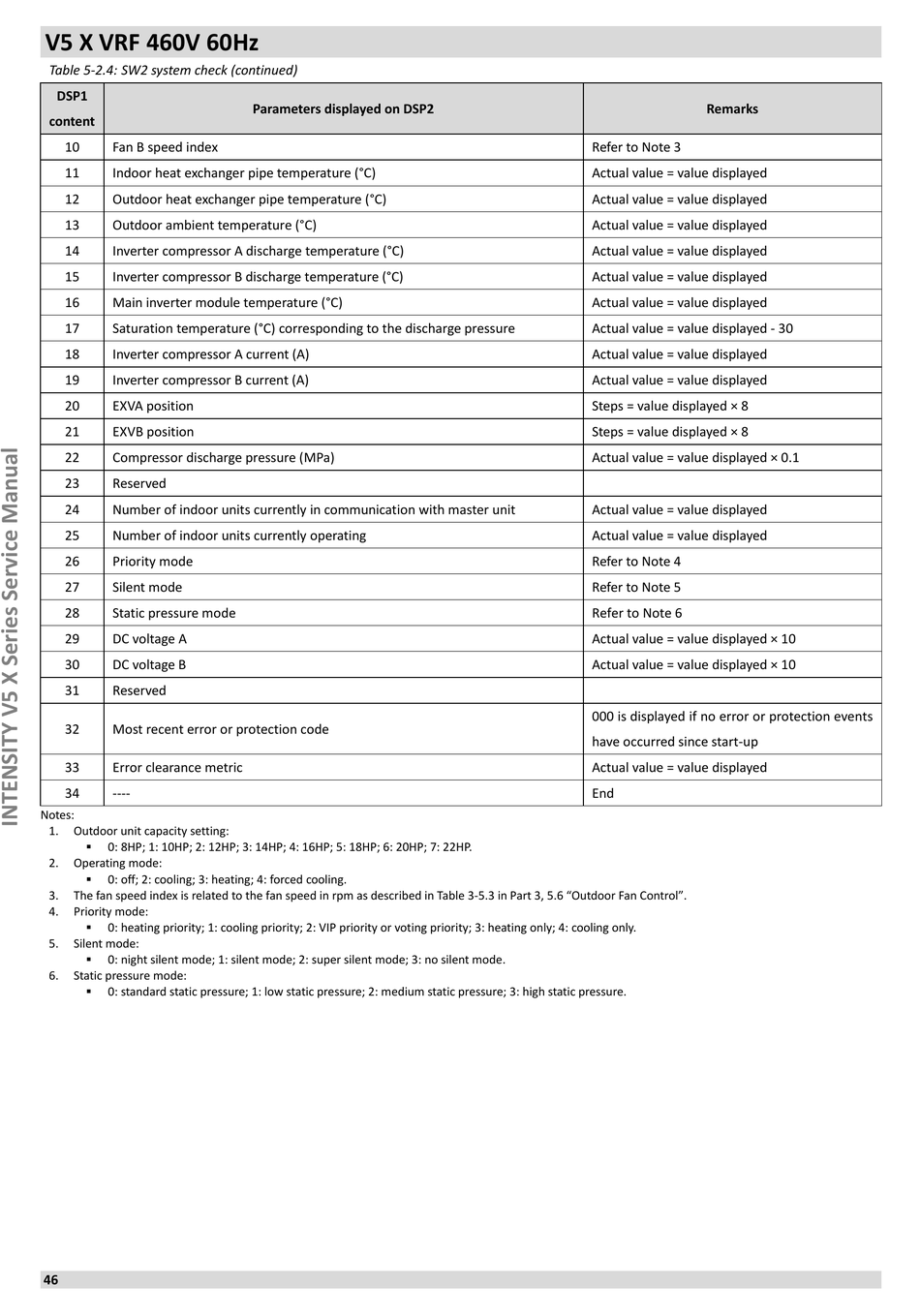

Table 5-2.4: SW2 system check (continued)
DSP1
content
10
Fan B speed index
11
Indoor heat exchanger pipe temperature (°C)
12
Outdoor heat exchanger pipe temperature (°C)
13
Outdoor ambient temperature (°C)
14
Inverter compressor A discharge temperature (°C)
15
Inverter compressor B discharge temperature (°C)
16
Main inverter module temperature (°C)
17
Saturation temperature (°C) corresponding to the discharge pressure
18
Inverter compressor A current (A)
19
Inverter compressor B current (A)
20
EXVA position
21
EXVB position
22
Compressor discharge pressure (MPa)
23
Reserved
24
Number of indoor units currently in communication with master unit
25
Number of indoor units currently operating
26
Priority mode
27
Silent mode
28
Static pressure mode
29
DC voltage A
30
DC voltage B
31
Reserved
32
Most recent error or protection code
33
Error clearance metric
34
----
Notes:
1.
Outdoor unit capacity setting:
0: 8HP; 1: 10HP; 2: 12HP; 3: 14HP; 4: 16HP; 5: 18HP; 6: 20HP; 7: 22HP.
2.
Operating mode:
0: off; 2: cooling; 3: heating; 4: forced cooling.
3.
The fan speed index is related to the fan speed in rpm as described in Table 3-5.3 in Part 3, 5.6 "Outdoor Fan Control".
4.
Priority mode:
0: heating priority; 1: cooling priority; 2: VIP priority or voting priority; 3: heating only; 4: cooling only.
5.
Silent mode:
0: night silent mode; 1: silent mode; 2: super silent mode; 3: no silent mode.
6.
Static pressure mode:
0: standard static pressure; 1: low static pressure; 2: medium static pressure; 3: high static pressure.
46
Parameters displayed on DSP2
Remarks
Refer to Note 3
Actual value = value displayed
Actual value = value displayed
Actual value = value displayed
Actual value = value displayed
Actual value = value displayed
Actual value = value displayed
Actual value = value displayed - 30
Actual value = value displayed
Actual value = value displayed
Steps = value displayed × 8
Steps = value displayed × 8
Actual value = value displayed × 0.1
Actual value = value displayed
Actual value = value displayed
Refer to Note 4
Refer to Note 5
Refer to Note 6
Actual value = value displayed × 10
Actual value = value displayed × 10
000 is displayed if no error or protection events
have occurred since start-up
Actual value = value displayed
End
