V5 X VRF 460V 60Hz
1 Layout of Functional Components
MV5-X252W/V2ZN1 / MV5-X280W/V2ZN1 / MV5-X335W/V2ZN1

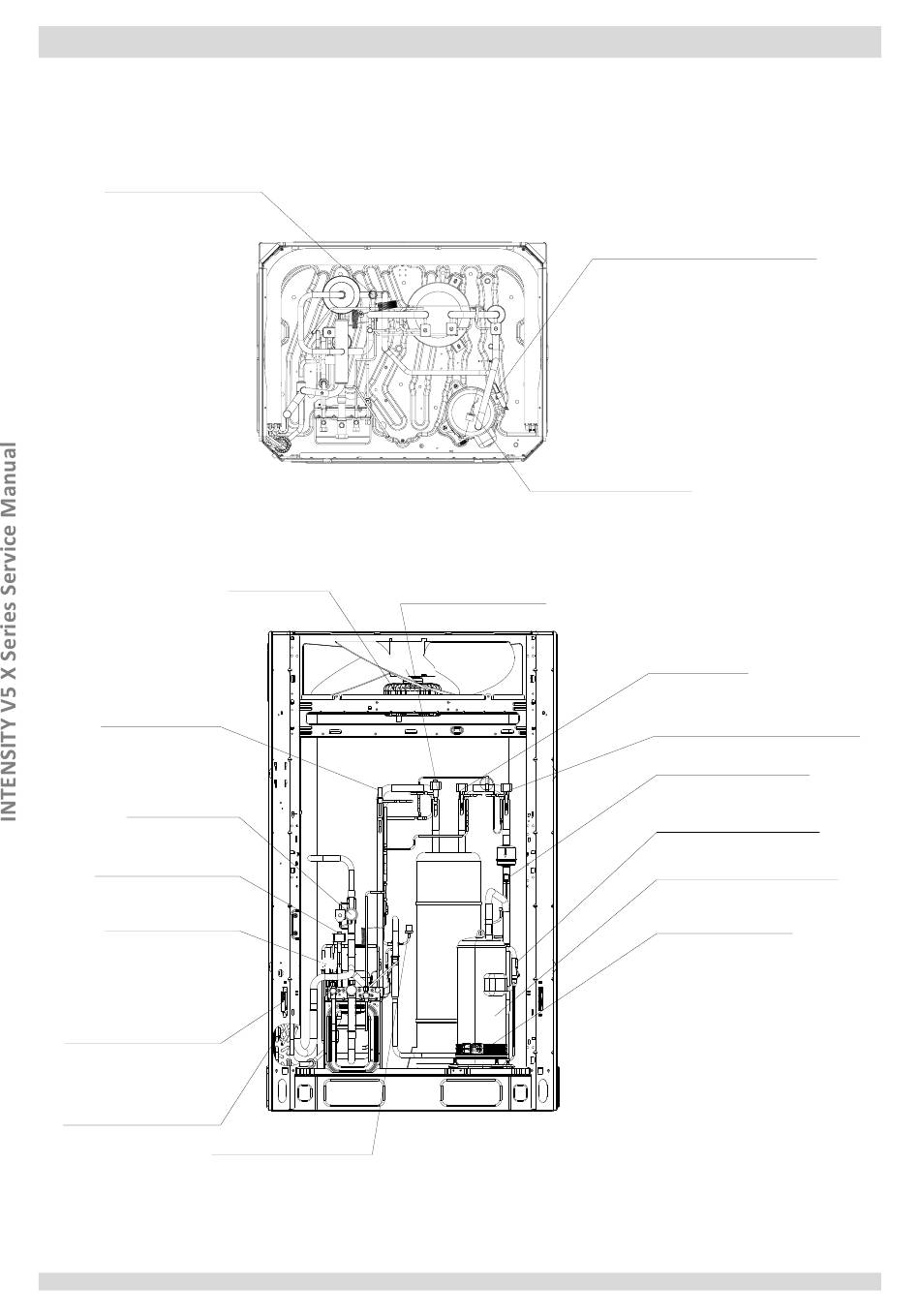

Figure 2-2.1: MV5-X252(280, 335)W/V2ZN1 top view
High pressure sensor
Figure 2-2.2: MV5-X252(280, 335)W/V2ZN1 front view
Unloading valve
Four-way valve
Solenoid valve SV6
(EXV bypass)
Electronic
expansion valve
Outdoor ambient
temperature sensor
Heat exchanger
temperature sensor
High pressure switch
12
DC fan motor
Compressor top
temperature sensor
Solenoid valve SV5
(fast defrosting)
Discharge temperature switch
Solenoid valve SV4
(oil balance)
Solenoid valve SV2
(liquid refrigerant injection)
Low pressure switch
Discharge pipe
temperature sensor
DC inverter compressor
Crankcase heater
