V5 X VRF 460V 60Hz
1 Outdoor Unit Field Settings
1.1 PCB Switches and Switch Settings

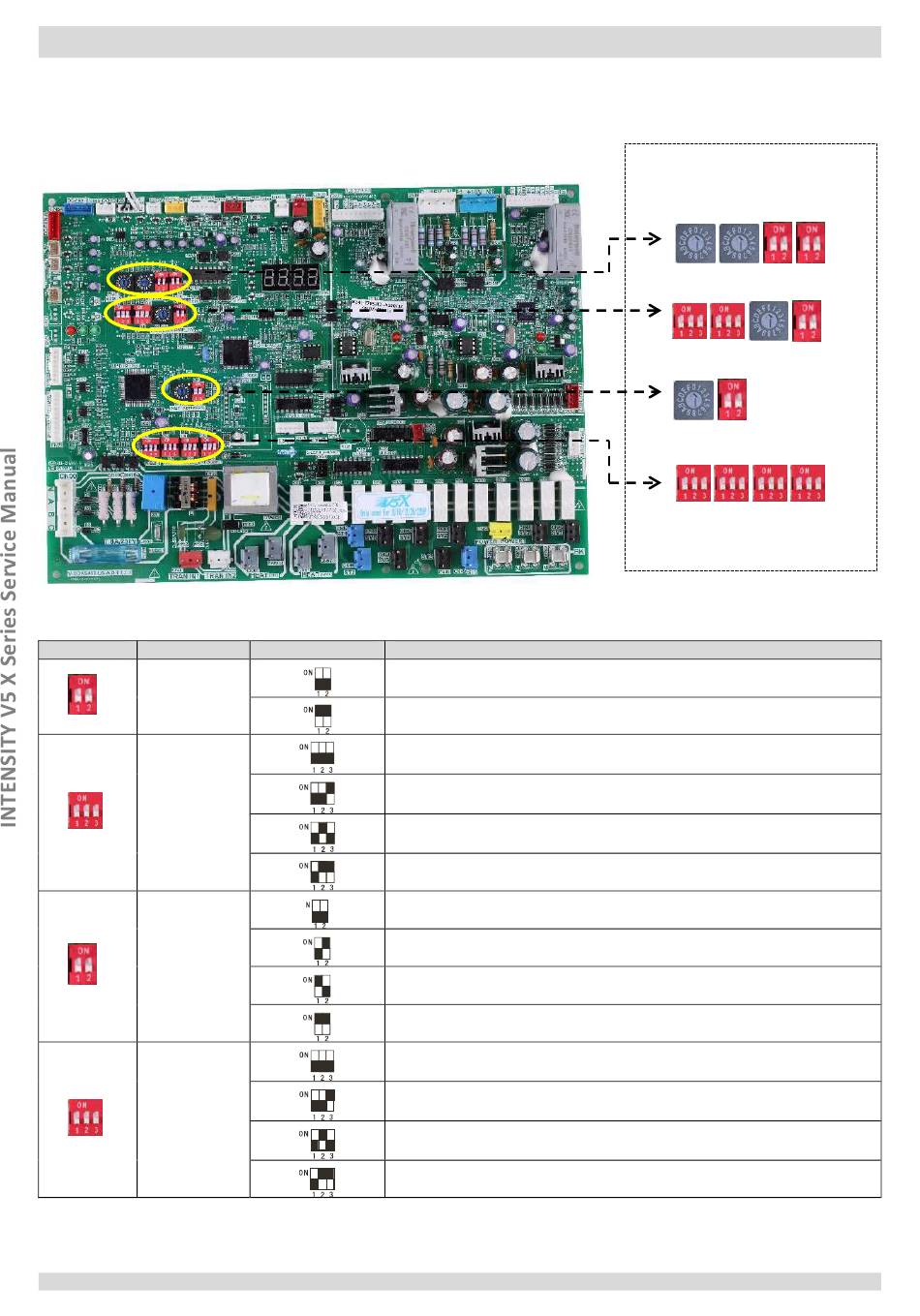

Figure 4-1.1: Outdoor unit main PCB switches
Table 4-1.1: Outdoor unit main PCB switch settings
Switch
Setting
Start-up time
S1
Night silent
time
2
S2
Silent mode
S3
Static pressure
S4
Notes:
1.
Black denotes the switch position.
2.
Refer to Part 4, 1.2.1 "Night silent time setting".
36
1
Switch positions
S1
Start-up time is 12 minutes (default)
S1
Start-up time is 10 minutes
S2
Night silent time is 6h/10h (default)
S2
Night silent time is 6h/12h
S2
Night silent time is 8h/10h
S2
Night silent time is 8h/12h
S3
Night silent mode (default)
S3
Silent mode
S3
Super silent mode
S3
No silent mode
S4
Standard static pressure (default)
S4
Low static pressure mode (reserved, can be customized)
S4
Medium static pressure mode (reserved, can be customized)
S4
High static pressure mode (reserved, can be customized)
PCB switches
ENC1 ENC3 S12 S3
S7
S8 ENC2 S1
ENC4 S10
S4
S2
S5
Description
Table continued on next page ...
S6
