V5 X VRF 460V 60Hz
2 Piping Diagrams
MV5-X252W/V2ZN1 / MV5-X280W/V2ZN1 / MV5-X335W/V2ZN1

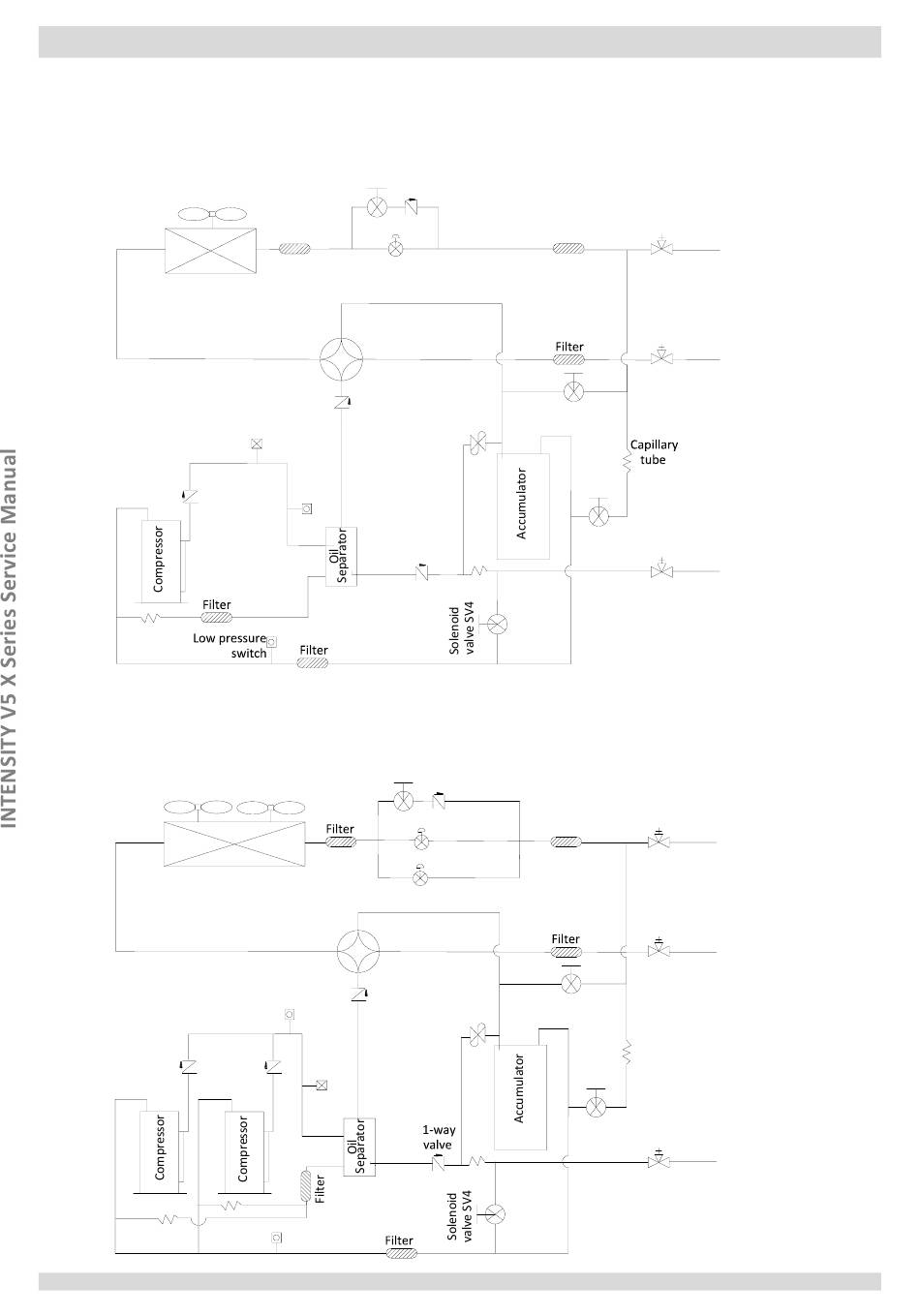

Figure 2-1.1: MV5-X252(280, 335)W/V2ZN1 piping diagram
Heat exchanger
High pressure sensor
1-way valve
Capillary
tube
MV5-X400W/V2ZN1 / MV5-X450W/V2ZN1 / MV5-X500W/V2ZN1/ MV5-X560W/V2ZN1 /
MV5-X615W/V2ZN1
Figure 2-1.2: MV5-X400(450, 500, 560, 615)W/V2ZN1 piping diagram
Heat exchanger
1-way
valve
Capillary
tube
