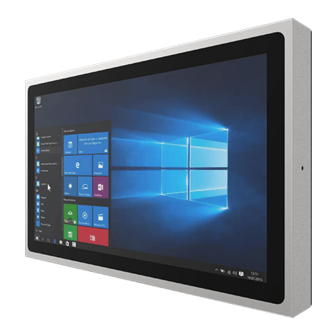

IP69K Stainless P-Cap
15/19/21.5" Panel PC
Intel® Core™ i5-7200U Kaby Lake
Model No.:
R15IK3S-SPC369
R19IK3S-SPM169
W22IK3S-SPA369
User Manual
Version 1.0
Please read this instructions before operating the device and retain them for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IP69K Stainless P-Cap and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Winmate IP69K Stainless P-Cap

Summary of Contents for Winmate IP69K Stainless P-Cap

  • Page 1 IP69K Stainless P-Cap 15/19/21.5” Panel PC Intel® Core™ i5-7200U Kaby Lake Model No.: R15IK3S-SPC369 R19IK3S-SPM169 W22IK3S-SPA369 User Manual Version 1.0 Please read this instructions before operating the device and retain them for future reference.

  • Page 2: Table Of Contents

    IP69K Stainless P-Cap Panel PC User Manual Contents Preface ..........................4 About This User Manual ..................... 9 Chapter 1: Introduction ....................10 1.1 Introduction ......................11 1.2 Product Features ....................11 1.3 Package Content ....................12 1.4 Connector Placement ..................13 1.5 Physical Buttons and LED Indicators ..............
  • Page 3 Preface Chapter 5: Insyde BIOS Setup .................. 31 5.1 How and When to Use BIOS Setup..............32 5.2 BIOS Functions ....................33 5.2.1 Main Menu ....................33 5.2.2 Advanced ....................34 5.2.3 Boot ......................49 3.2.3 Security ..................... 52 5.2.4 Power ....................... 53 5.2.5 Exit ......................

  • Page 4: Preface

    IP69K Stainless P-Cap Panel PC User Manual Preface Copyright Notice No part of this document may be reproduced, copied, translated, or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the prior written permission of the original manufacturer.
  • Page 5 Preface Advisory Conventions Four types of advisories are used throughout the user manual to provide helpful information or to alert you to the potential for hardware damage or personal injury. These are Notes, Important, Cautions, and Warnings. The following is an example of each type of advisory. Note: A note is used to emphasize helpful information Important:...
  • Page 6 IP69K Stainless P-Cap Panel PC User Manual Safety Information Warning!/ Avertissement! Always completely disconnect the power cord from your chassis whenever you work with the hardware. Do not make connections while the power is on. Sensitive electronic components can be damaged by sudden power surges.
  • Page 7 Preface *Let service personnel to check the equipment in case any of the following problems appear: o The power cord or plug is damaged. o Liquid has penetrated into the equipment. o The equipment has been exposed to moisture. o The equipment does not work well or you cannot get it to work according to the user manual.
  • Page 8 IP69K Stainless P-Cap Panel PC User Manual Important Information Federal Communications Commission Radio Frequency Interface Statement This device complies with part 15 FCC rules. Operation is subject to the following two conditions: This device may not cause harmful interference. ...

  • Page 9: About This User Manual

    The documentation set for the IP69K Flat Stainless P-Cap Panel PC provides information for specific user needs, and includes:  IP69K Stainless P-Cap Panel PC User Manual – contains detailed description on how to use the Panel PC, its components and features.

  • Page 10: Chapter 1: Introduction

    IP69K Stainless P-Cap Panel PC User Manual Chapter 1: Introduction This chapter gives you product overview, describes features and hardware specification. You will find all accessories that come with the Panel PC in the packing list. Mechanical dimensions and drawings included in this chapter.

  • Page 11: Introduction

    1.1 Introduction Congratulations on purchasing Winmate® IP69K Stainless P-Cap Panel PC. Winmate flat stainless steel P-Cap panel PCs and display are designed for applications with high hygienic requirements. IP69K series is completely waterproof with IP69K level of protection allowing for easy cleaning and sterilization.

  • Page 12: Package Content

    IP69K Stainless P-Cap Panel PC User Manual 1.3 Package Content Carefully remove the box and unpack your device. Please check if all the items listed below are inside your package. If any of these items are missing or damaged contact us immediately.

  • Page 13: Connector Placement

    Chapter 1: Introduction 1.4 Connector Placement IP69K Flat Stainless P-Cap Panel PC has M25 type connectors with protection cap and air venting Ch.2,“Cable Specifications” valve. For cable specifications refer to the of this user manual. 1.5 Physical Buttons and LED Indicators Physical buttons and LED indicators located on the rear side of the Panel PC.

  • Page 14: Schematics And Dimensions

    IP69K Stainless P-Cap Panel PC User Manual 1.6 Schematics and Dimensions This section contains mechanical drawing of the Panel PC. Notice that this is a simplified drawing and some components are not marked in detail. 1.6.1 Dimensions 15" Unit: mm Dimensions : 378 x 301 x 56.4...

  • Page 15: Dimensions 21.5

    Chapter 1: Introduction 1.6.3 Dimensions 21.5” Unit: mm Dimensions : 541 x 337 x 53...

  • Page 16: Chapter 2: Getting Started

    IP69K Stainless P-Cap Panel PC User Manual Chapter 2: Getting Started This chapter tells you important information on power supply, adapter and precautions tips. Pay attention to power considerations.

  • Page 17: Powering On

    Chapter 1: Introduction 2.1 Powering On 2.1.1 AC Adapter Components AC Adapter supplied with the power cord. AC Adapter Power Cord AC Adapter specifications vary by panel size. 15” 19” 21.5” Size 12V/ 80W 12V/ 80W 12V/ 80W AC Adapter Safety Precautions: ...

  • Page 18: Power Considerations

    IP69K Stainless P-Cap Panel PC User Manual 2.1.2 Power Considerations The Panel PC operates on external DC power. Use the AC adapter included in the package. Caution/Attention Use only the AC adapter included in your package. Using other AC adapters may damage the device.

  • Page 19: Connector Pin Assignments

    The pin assignments of the cables are as follows. 2.2.1 Power Cable The IP69K Stainless P-Cap Panel PC has M25 type connector. Use power cable to connect Panel PC to the source of power. IP69K Stainless P-Cap Panel PC support 12V DC power input.

  • Page 20: Serial Cable

    IP69K Stainless P-Cap Panel PC User Manual 2.2.2 Serial Cable The IP69K Stainless P-Cap Panel PC has M25 type serial port connector. Use serial cable to connect serial interfaces.

  • Page 21: Ethernet Cable

    Chapter 1: Introduction 2.2.3 Ethernet Cable The IP69K Stainless P-Cap Panel PC has M25 type Ethernet connector. Use Ethernet cable to connect the Panel PC to the Internet.

  • Page 22: Usb 2.0 Cable

    IP69K Stainless P-Cap Panel PC User Manual 2.2.4 USB 2.0 Cable The IP69K Stainless P-Cap Panel PC has one M25 type USB2.0 connector. Use USB2.0 cable to connect external devices such as mouse or keyboard to the Panel PC.

  • Page 23: Cleaning The Monitor

    Chapter 1: Introduction 2.3 Cleaning the Monitor Note: The IP69K Stainless Panel PCs withstand regular intense cleaning and could hold up against steam and high-pressure water. The devices are able to sustain water temperatures up to 80°C and a water jet operating at 99.97 bar. Before cleaning: ...

  • Page 24: Chapter 3: Mounting

    IP69K Stainless P-Cap Panel PC User Manual Chapter 3: Mounting This chapter provides mounting guide for all available mounting options. Pay attention to cautions and warning to avoid any damages.

  • Page 25: Cable Mounting Considerations

    Chapter 1: Introduction 3.1 Cable Mounting Considerations For a nice look and safe installation, make sure cables are neatly hidden behind the device. Refer to Chapter 2, section 2.1 for the cable installation instruction. Warning!/ Avertissement! Observe all local installation requirements for connection cable type and protection level.

  • Page 26: Vesa Mount

    IP69K Stainless P-Cap Panel PC User Manual 3.3 VESA Mount Flat Stainless P-CAP Panel PC has VESA mount holes on the rear side. Follow instructions below to mount the unit with VESA Mount bracket (not supplied by Winmate). Size VESA Plate Dimensions Screw hole diameter 15”,19”...

  • Page 27: Yoke Mount

    Chapter 1: Introduction 3.4 Yoke Mount Yoke Mount solution allows installing the Panel PC with the bracket (not supplied by Winmate). Mounting instruction: 1. Place the Panel PC on the bracket stand, aiming screw holes for each other. 2. Secure screws to fix the device upon the bracket stand.

  • Page 28: Chapter 4: Operating The Device

    IP69K Stainless P-Cap Panel PC User Manual Chapter 4: Operating the Device In this chapter you will find instructions on how to operate the HMI device.

  • Page 29: Operating System

    Chapter 1: Introduction 4.1 Operating System The Panel PCs supports Windows 10 IoT Enterprise operating system. 4.2 Multi-Touch The touchpad supports the core gestures for Windows. Gesture Windows Usage Gesture Action Action Tap/ Click / Double-click Click or double-click Double-tap Panning with Scrolling Drag one or two fingers...

  • Page 30: How To Enable Watchdog

    4.3 How to Enable Watchdog To enable Watchdog, you need to download Winmate Watchdog utility. Find more information on Watchdog in “Watchdog Guide” that you can download from Winmate Download Center or File Share. Refer to the User Manual for more details.

  • Page 31: Chapter 5: Insyde Bios Setup

    Chapter 1: Introduction Chapter 5: Insyde BIOS Setup BIOS Setup Utility is a program for configuration basic Input / Output system settings of the computer for optimum use. This chapter provides information on how to use BIOS setup, its functions and menu.

  • Page 32: How And When To Use Bios Setup

    IP69K Stainless P-Cap Panel PC User Manual 5.1 How and When to Use BIOS Setup To enter the BIOS setup, you need to connect an external USB keyboard, external monitor and press Del key when the prompt appears on the screen during start up. The prompt screen shows only few seconds so need press Del key quickly.

  • Page 33: Bios Functions

    Chapter 1: Introduction 5.2 BIOS Functions 5.2.1 Main Menu The Main menu displays the basic information about yoursystem including BIOS version, processor RC version, system language, time, and date. When you enter BIOS setup, the first menu that appears on the screen is the main menu.It contains the system information including BIOS version, processor RC version, system language, time, and date.

  • Page 34: Advanced

    IP69K Stainless P-Cap Panel PC User Manual 5.2.2 Advanced Select the Advanced Tab from the setup menu to enter the advanced BIOS setup screen. You can select any of the items on the left frame of the screen to go to the sub menu for the item, such as CPU Configuration.
  • Page 35 Chapter 1: Introduction 5.2.2.1 CPU Configuration BIOS Setting Description Setting Option Effect Intel (VMM) Enable or disable Intel Enable/Disable When enabled, a VMM Virtualization Virtualization can utilize the Technology Technology. additional hardware capabilities provided by Vanderpool Technology. Active Processor Number of core to enable AII / 1 / 2/ 3 Select number of core Cores...
  • Page 36 IP69K Stainless P-Cap Panel PC User Manual 5.2.2.2 F81886A Configuration 5.2.2.3 GPIO Configuration...
  • Page 37 Chapter 1: Introduction 5.2.2.4 Hardware Monitor...
  • Page 38 IP69K Stainless P-Cap Panel PC User Manual 5.2.2.5 PCH-IO Configuration BIOS Setting Description Setting Option Effect PCI Express PCI Express clock gating Enter Opens sub-menu Configuration enable/disable for each root port. SATA And RST Enable/ Disable SATA device Enter Opens sub-menu...
  • Page 39 Chapter 1: Introduction 5.2.2.6 PCI Express Configuration...
  • Page 40 IP69K Stainless P-Cap Panel PC User Manual 5.2.2.7 SATA and RST Configuration 5.2.2.8 USB Configuration...
  • Page 41 Chapter 1: Introduction 5.2.2.9 ME Firmware Configuration...
  • Page 42 IP69K Stainless P-Cap Panel PC User Manual...
  • Page 43 Chapter 1: Introduction 5.2.2.10 Power & Performance BIOS Setting Description Setting Option Effect CPU – Power Configure CPU – Enter Opens sub-menu Management Power Management Control parameters...
  • Page 44 IP69K Stainless P-Cap Panel PC User Manual...
  • Page 45 Chapter 1: Introduction BIOS Setting Description Setting Option Effect Boot Configure Boot -Max non-turbo Select the performance Performance Performance Mode performance state that the BIOS will set Mode parameters -Max battery starting from reset vector -Turbo Performance Intel SpeedStep Configure Intel Enabled/ Allows more than two (ta)
  • Page 46 IP69K Stainless P-Cap Panel PC User Manual 5.2.2.7 System Agent (SA) Configuration BIOS Setting Description Setting Option Effect Graphics Configure Graphics Enter Opens sub-menu Configuration Configuration parameters Vt-d Intel® Virtualization Enabled Vt-d capability Technology for Disabled Directed I/O...
  • Page 47 Chapter 1: Introduction 5.2.2.7.1 Graphics Configuration BIOS Setting Description Setting Effect Option Internal Graphics Internal Graphics Auto Keep IGFX enabled based on the settings Enabled setup options Disabled Aperture Size Select the aperture 128MB Select the aperture size size 256MB Note: Above 4MB MMIO BIOS 512MB assignment is automatically...
  • Page 48 IP69K Stainless P-Cap Panel PC User Manual .2.2.7.2 Vt-d BIOS Setting Description Setting Option Effect Vt-d Intel® Virtualization Enabled Vt-d capability Technology for Disabled Directed I/O...

  • Page 49: Boot

    Chapter 1: Introduction 5.2.3 Boot BIOS Setting Description Setting Effect Option Boot Type Boot Type UEFI Boot Select boot type to Dual type, Legacy configuration Type type or UEFI type Quick Boot Quick Boot Enabled Allows InsydeH20 to skip certain tests configuration Disabled while booting.
  • Page 50 IP69K Stainless P-Cap Panel PC User Manual 5.2.3.1 Boot Type Order BIOS Setting Description Setting Option Effect Hard Disk Type Hard Disk Type Enter Opens Sub-menu configuration Others Other configuration Enter Opens Sub-menu...
  • Page 51 Chapter 1: Introduction 5.2.3.1.1 Hard Disk Type 5.2.3.1.2 Others...

  • Page 52: Security

    IP69K Stainless P-Cap Panel PC User Manual 3.2.3 Security BIOS Setting Description Setting Option Effect TrEE Protocol Choose TrEE TrEE Protovol Version Protocol Version Version: 1.0 or 1.1 When hidden don’t TPM Availability TPM Availability Available configuration Hidden exposes TPM to 0...

  • Page 53: Power

    Chapter 1: Introduction 5.2.4 Power BIOS Setting Description Setting Option Effect ACPI S3 ACPI S3 Disabled Enable/ Disable ACPI configuration Enabled S1/S3 Sleep state Auto Wake on S5 Auto Wake on S5 Disabled Auto Wake on S5, by configuration By Every Day Day or Month or fixed By Every Month time of every day...

  • Page 54: Exit

    IP69K Stainless P-Cap Panel PC User Manual 5.2.5 Exit...

  • Page 55: Using Recovery Wizard To Restore Computer

    Chapter 1: Introduction 5.3 Using Recovery Wizard to Restore Computer Note: Before starting the recovery process, make sure to backup all user data. The data will be lost after the recovery process. Important: Before starting the recovery process, remove the PCI/ PCIe card and CFast card.

  • Page 56: Chapter 6: Driver Installation

    IP69K Stainless P-Cap Panel PC User Manual Chapter 6: Driver Installation This chapter provides guideline to driver installations.

  • Page 57: Chipset Driver

    Chapter 1: Introduction 6.1 Chipset Driver Follow instructions below to install Chipset driver. 1. Open the Driver CD (included in the package) and select Chipset driver. 2. Installation window will pop up, select Next.
  • Page 58 IP69K Stainless P-Cap Panel PC User Manual 3. Select Accept to agree with the terms of license agreement. 4. Check the ReadMe file information, select Install to continue.

  • Page 59: Graphic Driver

    Chapter 1: Introduction 5. Wait for the driver to be installed. When installation completed, select Restart Now to restart your computer. 6.2 Graphic Driver Follow instructions below to install Graphic driver. 1. Open the Driver CD (included in the package) and select Graphic driver.
  • Page 60 IP69K Stainless P-Cap Panel PC User Manual 2. Installation window will pop up, select Next. 3. Select Accept to agree with the terms of license agreement.
  • Page 61 Chapter 1: Introduction 4. Check the ReadMe file information, select Next to continue.
  • Page 62 IP69K Stainless P-Cap Panel PC User Manual 5. Wait for the driver to be installed. 6. Select Next to continue.
  • Page 63 Chapter 1: Introduction 7. After installation is completed, select “Yes, I want to restart this computer now”, and click Finish.

  • Page 64: Management Engine (Me)

    IP69K Stainless P-Cap Panel PC User Manual 6.3 Management Engine (ME) Follow instructions below to install Management Engine (ME) . 1. Open the Driver CD (included in the package) and select ME driver. 2. Select Next to start the installation.
  • Page 65 Chapter 1: Introduction 3. Select Next to agree with the terms of license agreement. 4. Wait for the driver to be installed.
  • Page 66 IP69K Stainless P-Cap Panel PC User Manual 5. When installation completed, select Finish complete installation.

  • Page 67: Audio Driver

    Chapter 1: Introduction 6.4 Audio Driver Follow instructions below to install Audio driver. 1. Open the Driver CD (included in the package) and select Audio driver. 2. Select Next to continue.

  • Page 68: Ethernet Driver

    IP69K Stainless P-Cap Panel PC User Manual 3. When installation completed, select Finish complete installation. 6.5 Ethernet Driver Follow instructions below to install LAN driver. 1. Open the Driver CD (included in the package) and select LAN driver.
  • Page 69 Chapter 1: Introduction 2. When compression is complete, select Next. 3. Read the license agreement, and then select Next.
  • Page 70 IP69K Stainless P-Cap Panel PC User Manual 4. System displays the installed packages, select Next. 5. Confirm the installation, select Install to start the installation.

  • Page 71: Watchdog Driver Installation

    Chapter 1: Introduction 6. When installation is completed, select Finish to close the window. 6.6 Watchdog Driver Installation For more details about Winmate Watchdog, please download Watchdog Guide from Winmate Downloads Center: http://dc.winmate.com.tw/_downloadCenter/2017/Embedded%20Computing/Watchdog%20Guide_ IB_IH_IV_IK.pdf Follow instructions below to install Watchdog driver.
  • Page 72 IP69K Stainless P-Cap Panel PC User Manual 4. When Windows Security dialog appear, select install to continue the Installation. 5. Wait for installation to complete. When installation is complete, press any key to close.
  • Page 73 Chapter 1: Introduction 6. Open the Driver CD (included in the package) and select Watchdog AP. 7. Select Next.
  • Page 74 IP69K Stainless P-Cap Panel PC User Manual 8. The installed storage location is displayed, select Next to continue. 9. Select Next to start the installation.
  • Page 75 Chapter 1: Introduction 10. When installation is completed, select Finish to close the window.

  • Page 76: Chapter 6: Technical Support

    IP69K Stainless P-Cap Panel PC User Manual Chapter 6: Technical Support This chapter includes the directory for technical support. Free technical support is available from our engineers every business day. We are always ready to give advice on application requirements or specific information on the installation and operation of any of our products.

  • Page 77: Software Developer Support

    Chapter 1: Introduction 7.1 Software Developer Support Winmate provides the following SDK and Utilities for the IP69K Stainless P-CAP Panel PC. Item File Type Description Watchdog SDK Utility Watchdog Utility To find the Drivers and SDK, please refer to the Driver CD that comes in the package or contact us.

  • Page 78: Appendix A: Product Specifications

    IP69K Stainless P-Cap Panel PC User Manual Appendix A: Product Specifications Hardware Specifications Model Name R15IK3S-SPC369 R19IK3S-SPM169 W22IK3S-SPA369 Display 15” 19” 21.5” Size Resolution 1024 x 768 1280 x 1024 1920 x 1080 Brightness (typ.) (typ.) (typ.) Contrast Ratio 700 : 1(typ.) 1000 : 1 (typ.)
  • Page 79 Appendix A: Product Specifications 2 x USB Type-A Receptacle Power 1 x 12V DC Mechanical Specification Cooling Fanless System Mounting Yoke Mount, VESA Mount Environmental Consideration Operating 0°C to +45°C Temperature Operating 30% to 90% (non-condensing) Humidity IP Rating Full IP69K Power Specifications Power Input 12V DC IN (Lockable Power Jack)
