- Page 1 IP69K Stainless P-Cap 15/19/21.5” Panel PC Intel® Core™ i5-7200U Kaby Lake Model No.: R15IK3S-SPC369 R19IK3S-SPM169 W22IK3S-SPA369 Quick Start Guide Version 1.0 Document Part Number: 91521110102U Please read this instructions before operating the device and retain them for future reference.
-
Page 2: Table Of Contents
3.2 Connector Pin Assignments 3.2.1 Power Cable 3.2.2 Serial Cable 3.2.3 Ethernet Cable 3.2.4 USB 2.0 Cable 3.3 Mounting 3.3.1 VESA Mounting 3.3.2 Yoke Mounting Appendix Appendix A: Hardware Specifications Appendix B: Cleaning the Monitor Appendix C: Winmate Software Development Kit... - Page 3 FCC Statement This device complies with part 15 FCC rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received including interference that may cause undesired operation.
- Page 4 Brand and product names are trademarks or registered trademarks of their respective owners. Disclaimer Winmate Inc. reserve the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance.
- Page 5 Chapter 1: Introduction Advisory Conventions Four types of advisories are used throughout the user manual to provide helpful information or to alert you to the potential for hardware damage or personal injury. These are Notes, Important, Cautions, and Warnings. The following is an example of each type of advisory. Note: A note is used to emphasize helpful information Important:...
-
Page 6: Chapter 1: Introduction

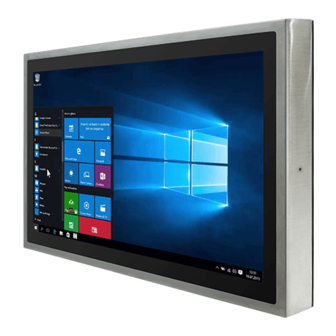

Chapter 1: Introduction Congratulations on purchasing Winmate® IP69K Stainless P-Cap Panel PC. Winmate flat stainless steel P-Cap panel PCs and display are designed for applications with high hygienic requirements. IP69K series is completely waterproof with IP69K level of protection allowing for easy cleaning and sterilization. -
Page 7: Package Content
Chapter 1: Introduction 1.2 Package Content Carefully remove the box and unpack your device. Please check if all the items listed below are inside your package. If any of these items are missing or damaged contact us immediately. Standard shipment list: ... -
Page 8: Product Overview
IP69K Stainless P-Cap Panel PC Quick Start Guide 1.3 Product Overview This section contains mechanical drawing of the Panel PC. Notice that this is a simplified drawing and some components are not marked in detail. 1.3.1 Dimensions 15" Unit: mm Dimensions : 378 x 301 x 56.4 1.3.2 Dimensions 19”... -
Page 9: Dimensions 21.5
Chapter 1: Introduction 1.3.3 Dimensions 21.5” Unit: mm Dimensions : 541 x 337 x 53 1.4 Physical Buttons and LED Indicators Physical buttons and LED indicators located on the rear side of the Panel PC. Physical Buttons Icon Button Description Reset Press to reset the system Power On/ Off... -
Page 10: Connectors
IP69K Stainless P-Cap Panel PC Quick Start Guide 1.5 Connectors IP69K Stainless P-Cap Panel PC has M25 type connectors with protection cap and air venting valve. -
Page 11: Chapter 2: Getting Started
Chapter 2: Getting Started Chapter 2: Getting Started 2.1 Turning On and Off Your Device To turn on your device: 1. Connect the AC adapter to the DC-in jack connector located on the back side of the Panel PC. 2. Connect the power cord to AC adapter. 3. -
Page 12: How To Enable Watchdog
2.2 How to Enable Watchdog To enable Watchdog, you need to download Winmate Watchdog utility. Find more information on Watchdog in “Watchdog Guide” that you can download from Winmate Download Center or File Share. Refer to the User Manual for more details. -
Page 13: Chapter 3: Installation
Chapter 3: Installation Chapter 3: Installation 3.1 Wiring Requirements The following common safety precautions should be observed before installing any electronic device: Strive to use separate, non-intersecting paths to route power and networking wires. If power wiring and device wiring paths must cross make sure the wires are perpendicular at the intersection point. -
Page 14: Connector Pin Assignments
IP69K Stainless P-Cap Panel PC Quick Start Guide 3.2 Connector Pin Assignments This Panel PC is equipped with four M25 type connectors which are waterproof. Use only the cables that are included in the package. The pin assignments of the cables are as follows. 3.2.1 Power Cable The IP69K Stainless P-Cap Panel PC has M25 type connectors. -
Page 15: Serial Cable
Chapter 3: Installation 3.2.2 Serial Cable The IP69K Stainless P-Cap Panel PC has M25 type serial port connector. Use serial cable to connect serial interfaces. -
Page 16: Ethernet Cable
IP69K Stainless P-Cap Panel PC Quick Start Guide 3.2.3 Ethernet Cable The IP69K Stainless P-Cap Panel PC has M25 type Ethernet connector. Use Ethernet cable to connect the Panel PC to the Internet. -
Page 17: Usb 2.0 Cable
Chapter 3: Installation 3.2.4 USB 2.0 Cable The IP69K Stainless P-Cap Panel PC has M25 type USB 2.0 connector. Use USB 2.0 cable to connect external devices such as mouse or keyboard to the Panel PC. -
Page 18: Mounting
3.3.1 VESA Mounting The Panel PC has VESA mount holes on the rear side. Follow instructions below to mount the unit with VESA Mount bracket (not supplied by Winmate). Size VESA Plate... -
Page 19: Yoke Mounting
Chapter 3: Installation 3.3.2 Yoke Mounting Yoke Mount solution allows installing the Panel PC with the bracket (not supplied by Winmate). Mounting instruction: 1. Place the Panel PC on the bracket stand, aiming screw holes for each other. 2. Secure screws to fix the device upon the bracket stand. -
Page 20: Appendix
IP69K Stainless P-Cap Panel PC Quick Start Guide Appendix Appendix A: Hardware Specifications Model Name R15IK3S-SPC369 R19IK3S-SPM169 W22IK3S-SPA369 Display 15” 19” 21.5” Size Resolution 1024 x 768 1280 x 1024 1920 x 1080 Brightness (typ.) (typ.) (typ.) Contrast Ratio 700 : 1(typ.) 1000 : 1 (typ.) - Page 21 Appendix 2 x USB Type-A Receptacle Power 1 x 12V DC Mechanical Specification Cooling System Fanless Mounting Yoke Mount, VESA Mount Environmental Consideration Operating 0°C to +45°C Temperature Operating 30% to 90% (non-condensing) Humidity IP Rating Full IP69K Power Specifications Power Input 12V DC IN (Lockable Power Jack) Power...
-
Page 22: Appendix B: Cleaning The Monitor
IP69K Stainless P-Cap Panel PC Quick Start Guide Appendix B: Cleaning the Monitor Note: The IP69K Stainless Panel PCs withstand regular intense cleaning and could hold up against steam and high-pressure water. The devices are able to sustain water temperatures up to 80°C and a water jets. Before cleaning: ... -
Page 23: Appendix C: Winmate Software Development Kit
Appendix Appendix C: Winmate Software Development Kit Winmate provides the following SDK and Utilities for the IP69K Stainless P-Cap Panel PC. Item File Type Description Watchdog SDK Utility Watchdog Utility To find the Drivers and SDK, please refer to the Driver CD that comes in the package or contact us. - Page 24 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 24158, Taiwan, R.O.C www.winmate.com Copyright © Winmate Inc. All rights reserved.
