Winmate R19IK3S-SPM169 User Manual

Ip69k stainless p-cap intel core i5-7200u kaby lake
Hide thumbs Also See for R19IK3S-SPM169:
Table of Contents

Advertisement

Quick Links

Download this manual

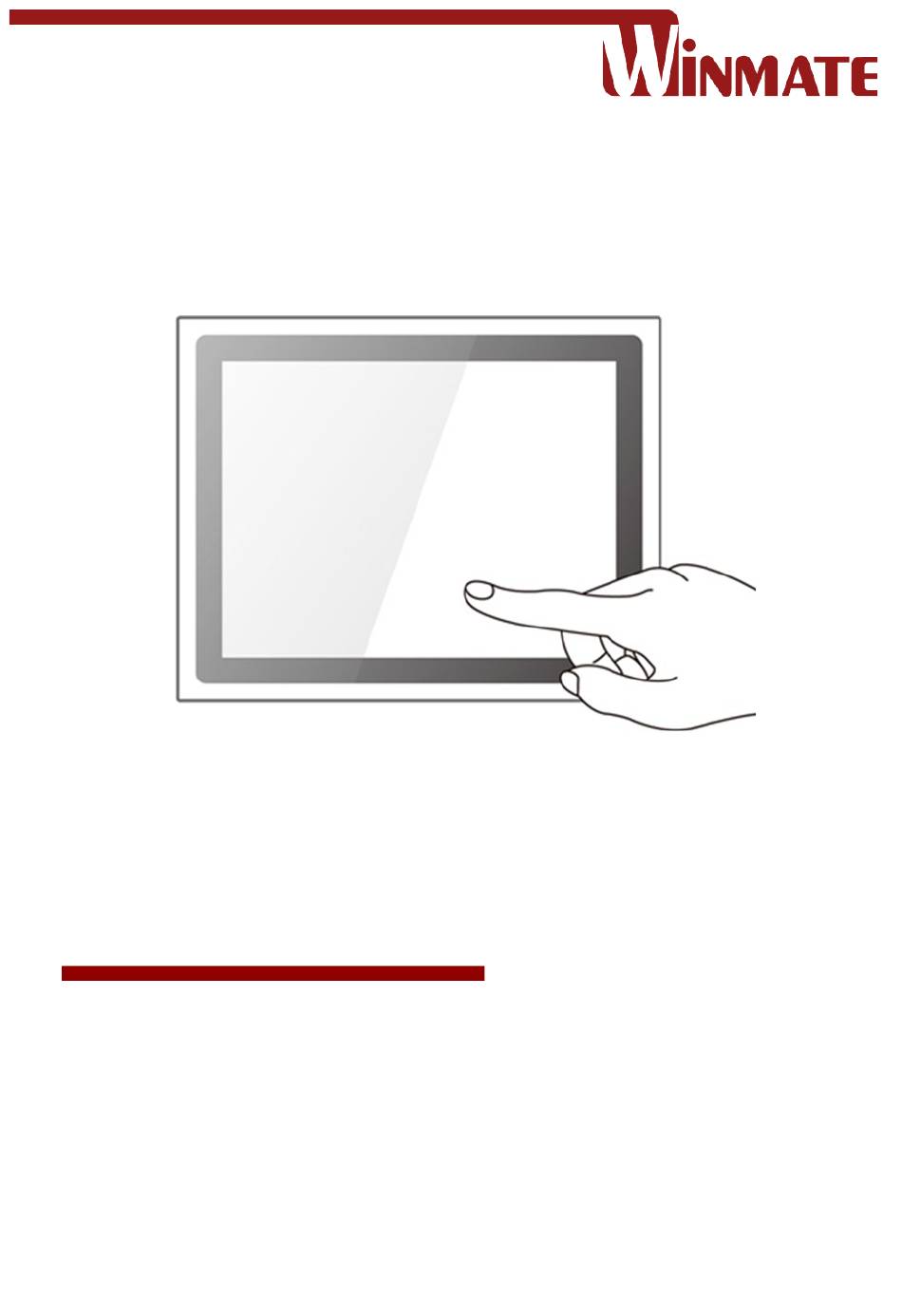

IP69K Stainless P-Cap
15/ 19/ 21.5/ 23.8" Panel PC
Document Version 1.5
Document Part No. 915211101085
Intel® Core™ i5-7200U Kaby Lake
User Manual
Model No.: R15IK3S-SPC369
R19IK3S-SPM169
W22IK3S-SPA369
W24IK3S-SPA269

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R19IK3S-SPM169 and is the answer not in the manual?

Questions and answers

Related Manuals for Winmate R19IK3S-SPM169

Summary of Contents for Winmate R19IK3S-SPM169

  • Page 1 IP69K Stainless P-Cap 15/ 19/ 21.5/ 23.8” Panel PC Intel® Core™ i5-7200U Kaby Lake Model No.: R15IK3S-SPC369 R19IK3S-SPM169 W22IK3S-SPA369 W24IK3S-SPA269 User Manual Document Version 1.5 Document Part No. 915211101085...

  • Page 2: Table Of Contents

    IP69K Stainless P-Cap Panel PC User Manual Contents Preface ............................3 About This User Manual ........................ 8 Chapter 1: Introduction ......................... 9 1.1 Introduction ........................10 1.2 Product Features ......................10 1.3 Package Content ......................11 1.4 Connector Placement ....................12 1.5 Physical Buttons and LED Indicators ................
  • Page 3 IP69K Stainless P-Cap Panel PC User Manual 4.2 Multi-Touch ........................27 4.3 Touch Mode ........................28 4.4 How to Enable Watchdog ....................31 Chapter 5: Insyde BIOS Setup ....................32 5.1 How and When to Use BIOS Setup................33 5.2 BIOS Functions ......................34 5.2.1 Main Menu ......................

  • Page 4: Preface

    IP69K Stainless P-Cap Panel PC User Manual Preface Copyright Notice No part of this document may be reproduced, copied, translated, or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the prior written permission of the original manufacturer.
  • Page 5 Preface Advisory Conventions Four types of advisories are used throughout the user manual to provide helpful information or to alert you to the potential for hardware damage or personal injury. These are Notes, Important, Cautions, and Warnings. The following is an example of each type of advisory. Note: A note is used to emphasize helpful information Important:...
  • Page 6 IP69K Stainless P-Cap Panel PC User Manual For your safety carefully read all the safety instructions before using the device. Keep this user manual for future reference. • Always disconnect this equipment from any AC outlet before cleaning. Do not use liquid or spray detergents for cleaning.
  • Page 7 Preface Warning!/ Avertissement! Always ground yourself against electrostatic damage to the device. Toujours vérifier votre mise à la terre afin que l’équipement ne se décharge pas sur vous. • Cover workstations with approved anti-static material. Use a wrist strap connected to a work surface and properly grounded tools and equipment.
  • Page 8 IP69K Stainless P-Cap Panel PC User Manual Important Information Federal Communications Commission Radio Frequency Interface Statement This device complies with part 15 FCC rules. Operation is subject to the following two conditions: This device may not cause harmful interference.  This device must accept any interference received including ...

  • Page 9: About This User Manual

    About This User Manual About This User Manual This User Manual provides information about using the Winmate® IP69K Stainless P-Cap Panel PC with Intel® Core™ i5-7200U Kaby Lake processor. This User Manual applies to the IP69K Flat Stainless P-Cap Panel PC – R15IK3S-SPC369, R19IK3S-SPM169, W22IK3S-SPA369, and W24IK3S-SPA269.

  • Page 10: Chapter 1: Introduction

    IP69K Stainless P-Cap Panel PC User Manual Chapter 1: Introduction This chapter gives you product overview, describes features and hardware specification. You will find all accessories that come with the Panel PC in the packing list. Mechanical dimensions and drawings included in this chapter.

  • Page 11: Introduction

    1.1 Introduction Congratulations on purchasing Winmate® IP69K Stainless P-Cap Panel PC. Winmate flat stainless steel P-Cap panel PCs and display are designed for applications with high hygienic requirements. IP69K series is completely waterproof with IP69K level of protection allowing for easy cleaning and sterilization.

  • Page 12: Package Content

    IP69K Stainless P-Cap Panel PC User Manual 1.3 Package Content Carefully remove the box and unpack your device. Please check if all the items listed below are inside your package. If any of these items are missing or damaged contact us immediately. Standard shipment list: Quick Start Guide Driver CD &...

  • Page 13: Connector Placement

    0BChapter 1: Introduction 1.4 Connector Placement IP69K Flat Stainless P-Cap Panel PC has M25 type connectors with protection cap and air venting valve. For cable specifications refer to the Ch.2,“Cable Specifications” of this user manual. 1.5 Physical Buttons and LED Indicators Physical buttons and LED indicators located on the rear side of the Panel PC.

  • Page 14: Schematics And Dimensions

    IP69K Stainless P-Cap Panel PC User Manual 1.6 Schematics and Dimensions This section contains mechanical drawing of the Panel PC. Notice that this is a simplified drawing and some components are not marked in detail. 1.6.1 Dimensions 15" Unit: mm 1.6.2 Dimensions 19”...

  • Page 15: Dimensions 21.5

    0BChapter 1: Introduction 1.6.3 Dimensions 21.5” Unit: mm 1.6.4 Dimensions 23.8” Unit: mm...

  • Page 16: Chapter 2: Getting Started

    IP69K Stainless P-Cap Panel PC User Manual Chapter 2: Getting Started This chapter tells you important information on power supply, adapter and precautions tips. Pay attention to power considerations.

  • Page 17: Powering On

    1BChapter 2: Getting Started 2.1 Powering On 2.1.1 AC Adapter Components AC Adapter supplied with the power cord. AC Adapter Power Cord AC Adapter specifications vary by panel size. Size 15” 19” 21.5” 23.8” 12V/ 80W 12V/ 80W 12V/ 80W 12V/ 80W AC Adapter Safety Precautions:...

  • Page 18: Power Considerations

    IP69K Stainless P-Cap Panel PC User Manual 2.1.2 Power Considerations The Panel PC operates on external DC power. Use the AC adapter included in the package. Caution/Attention Use only the AC adapter included in your package. Using other AC adapters may damage the device.

  • Page 19: Connector Pin Assignments

    1BChapter 2: Getting Started 2.2 Connector Pin Assignments This Panel PC is equipped with four waterproof connectors. Use only the cables that are included in the package. The pin assignments of the cables are as follows. 2.2.1 Power Cable The IP69K Stainless P-Cap Panel PC has waterproof power input connector. Use power cable to connect Panel PC to the source of power.

  • Page 20: Serial Cable

    IP69K Stainless P-Cap Panel PC User Manual 2.2.2 Serial Cable The IP69K Stainless P-Cap Panel PC has waterproof serial port connector. Use serial cable to connect serial interfaces. 2.2.3 Ethernet Cable The IP69K Stainless P-Cap Panel PC has waterproof Ethernet connector. Use Ethernet cable to connect the Panel PC to the Internet.

  • Page 21: Usb 2.0 Cable

    1BChapter 2: Getting Started 2.2.4 USB 2.0 Cable The IP69K Stainless P-Cap Panel PC has one waterproof USB2.0 connector. Use USB2.0 cable to connect external devices such as mouse or keyboard to the Panel PC. 2.3 Cleaning the Monitor Note: The IP69K Stainless Panel PCs withstand regular intense cleaning and could hold up against steam and high-pressure water.

  • Page 22: Touch Mode

    IP69K Stainless P-Cap Panel PC User Manual 2.4 Touch Mode IP69K Stainless P-Cap Panel PC has three types touch modes pre-installed with Windows OS. The icon is on the bottom right corner of the toolbar.

  • Page 23: Chapter 3: Mounting

    2BChapter 3: Mounting Chapter 3: Mounting This chapter provides mounting guide for all available mounting options. Pay attention to cautions and warning to avoid any damages.

  • Page 24: Cable Mounting Considerations

    IP69K Stainless P-Cap Panel PC User Manual 3.1 Cable Mounting Considerations For a nice look and safe installation, make sure cables are neatly hidden behind the device. Refer to Chapter 2, section 2.1 for the cable installation instruction. Warning!/ Avertissement! Observe all local installation requirements for connection cable type and protection level.

  • Page 25: Vesa Mount

    2BChapter 3: Mounting 3.3 VESA Mount Flat Stainless P-CAP Panel PC has VESA mount holes on the rear side. Follow instructions below to mount the unit with VESA Mount bracket (not supplied by Winmate). Size VESA Plate Dimensions Screw hole diameter 15”,19”...

  • Page 26: Yoke Mount

    IP69K Stainless P-Cap Panel PC User Manual 3.4 Yoke Mount Yoke Mount solution allows installing the Panel PC with the bracket (not supplied by Winmate). Mounting instruction: 1. Place the Panel PC on the bracket stand, aiming screw holes for each other.

  • Page 27: Chapter 4: Operating The Device

    3BChapter 4: Operating the Device Chapter 4: Operating the Device In this chapter you will find instructions on how to operate the device.

  • Page 28: Operating System

    IP69K Stainless P-Cap Panel PC User Manual 4.1 Operating System The Panel PCs supports Windows 10 IoT Enterprise operating system. 4.2 Multi-Touch The touchpad supports the core gestures for Windows. Gesture Windows Usage Gesture Action Action Tap/ Click / Double-click Click or double-click Double-tap Panning with...

  • Page 29: Touch Mode

    The icon is on the bottom right corner of the toolbar. If the OS is not installed, please download the application on our website for switching the touch modes. If you cannot find it, please download it from Winmate Download Center or contact Winmate sales representative.
  • Page 30 IP69K Stainless P-Cap Panel PC User Manual 3. Select the installation folder, and click Next to continue. 4. The Setup Wizard is ready to begin the TouchModeSelect installation. Click Install to proceed.
  • Page 31 3BChapter 4: Operating the Device 5. When installation is complete, click Finish button to exit the Setup Wizard.

  • Page 32: How To Enable Watchdog

    IP69K Stainless P-Cap Panel PC User Manual 4.4 How to Enable Watchdog To enable Watchdog, you need to download Winmate Watchdog utility. Find more information on Watchdog in “Watchdog Guide” that you can download from Winmate Download Center or File Share.

  • Page 33: Chapter 5: Insyde Bios Setup

    4BChapter 5: Insyde BIOS Setup Chapter 5: Insyde BIOS Setup BIOS Setup Utility is a program for configuration basic Input / Output system settings of the computer for optimum use. This chapter provides information on how to use BIOS setup, its functions and menu.

  • Page 34: How And When To Use Bios Setup

    IP69K Stainless P-Cap Panel PC User Manual 5.1 How and When to Use BIOS Setup To enter the BIOS setup, you need to connect an external USB keyboard, external monitor and press Del key when the prompt appears on the screen during start up. The prompt screen shows only few seconds so need press Del key quickly.

  • Page 35: Bios Functions

    4BChapter 5: Insyde BIOS Setup 5.2 BIOS Functions 5.2.1 Main Menu The Main menu displays the basic information about yoursystem including BIOS version, processor RC version, system language, time, and date. When you enter BIOS setup, the first menu that appears on the screen is the main menu.It contains the system information including BIOS version, processor RC version, system language, time, and date.

  • Page 36: Advanced

    IP69K Stainless P-Cap Panel PC User Manual 5.2.2 Advanced Select the Advanced Tab from the setup menu to enter the advanced BIOS setup screen. You can select any of the items on the left frame of the screen to go to the sub menu for the item, such as CPU Configuration.
  • Page 37 4BChapter 5: Insyde BIOS Setup 5.2.2.1 CPU Configuration BIOS Setting Description Setting Option Effect Intel (VMM) Enable or disable Enable/Disable When enabled, a VMM Virtualization Intel Virtualization can utilize the additional Technology Technology. hardware capabilities provided by Vanderpool Technology. Active Number of core to AII / 1 / 2/ 3 Select number of core to...
  • Page 38 IP69K Stainless P-Cap Panel PC User Manual 5.2.2.2 F81886A Configuration 5.2.2.3 GPIO Configuration...
  • Page 39 4BChapter 5: Insyde BIOS Setup 5.2.2.4 Hardware Monitor...
  • Page 40 IP69K Stainless P-Cap Panel PC User Manual 5.2.2.5 PCH-IO Configuration BIOS Setting Description Setting Option Effect PCI Express PCI Express clock Enter Opens sub-menu Configuration gating enable/disable for each root port. SATA And Enable/ Disable SATA Enter Opens sub-menu device Configuratuion Selectively enable/ Enter...
  • Page 41 4BChapter 5: Insyde BIOS Setup 5.2.2.6 PCI Express Configuration...
  • Page 42 IP69K Stainless P-Cap Panel PC User Manual 5.2.2.7 SATA and RST Configuration 5.2.2.8 USB Configuration...
  • Page 43 4BChapter 5: Insyde BIOS Setup 5.2.2.9 ME Firmware Configuration...
  • Page 44 IP69K Stainless P-Cap Panel PC User Manual...
  • Page 45 4BChapter 5: Insyde BIOS Setup 5.2.2.10 Power & Performance BIOS Setting Description Setting Option Effect CPU – Power Configure CPU – Enter Opens sub-menu Management Power Management Control parameters...
  • Page 46 IP69K Stainless P-Cap Panel PC User Manual...
  • Page 47 4BChapter 5: Insyde BIOS Setup BIOS Setting Description Setting Option Effect Boot Configure Boot -Max non-turbo Select the performance Performance Performance Mode performance state that the BIOS will Mode parameters -Max battery set starting from reset -Turbo vector Performance Intel Configure Intel Enabled/ Disabled Allows more than two...
  • Page 48 IP69K Stainless P-Cap Panel PC User Manual 5.2.2.11 System Agent (SA) Configuration BIOS Setting Description Setting Option Effect Graphics Configure Enter Opens sub-menu Configuration Graphics Configuration parameters Vt-d Intel® Enabled Vt-d capability Virtualization Disabled Technology for Directed I/O...
  • Page 49 4BChapter 5: Insyde BIOS Setup 5.2.2.11.1 Graphics Configuration BIOS Setting Description Setting Option Effect Internal Graphics Internal Auto Keep IGFX enabled based on Graphics Enabled the setup options settings Disabled Aperture Size Select the 128MB Select the aperture size aperture size 256MB Note: Above 4MB MMIO BIOS 512MB...
  • Page 50 IP69K Stainless P-Cap Panel PC User Manual 5.2.2.11.2 Vt-d BIOS Setting Description Setting Option Effect Vt-d Intel® Enabled Vt-d capability Virtualization Disabled Technology for Directed I/O...

  • Page 51: Boot

    4BChapter 5: Insyde BIOS Setup 5.2.3 Boot BIOS Setting Description Setting Option Effect Boot Type Boot Type UEFI Boot Type Select boot type to Dual type, configuration Legacy type or UEFI type Quick Boot Quick Boot Enabled Allows InsydeH20 to skip configuration Disabled certain tests while booting.
  • Page 52 IP69K Stainless P-Cap Panel PC User Manual 5.2.3.1 Boot Type Order BIOS Setting Description Setting Option Effect Hard Disk Type Hard Disk Type Enter Opens Sub-menu configuration Others Other Enter Opens Sub-menu configuration...
  • Page 53 4BChapter 5: Insyde BIOS Setup 5.2.3.1.1 Hard Disk Type 5.2.3.1.2 Others...

  • Page 54: Security

    IP69K Stainless P-Cap Panel PC User Manual 5.2.3 Security BIOS Setting Description Setting Option Effect TrEE Protocol Choose TrEE TrEE Protovol Version Protocol Version Version: 1.0 or 1.1 TPM Availability TPM Availability Available When hidden don’t configuration Hidden exposes TPM to 0 TPM Operation TPM Operation Select one of the...

  • Page 55: Power

    4BChapter 5: Insyde BIOS Setup 5.2.4 Power BIOS Setting Description Setting Option Effect ACPI S3 ACPI S3 Disabled Enable/ Disable configuration Enabled ACPI S1/S3 Sleep state Auto Wake on S5 Auto Wake on S5 Disabled Auto Wake on S5, configuration By Every Day by Day or Month By Every Month...

  • Page 56: Exit

    IP69K Stainless P-Cap Panel PC User Manual 5.2.5 Exit...

  • Page 57: Using Recovery Wizard To Restore Computer

    4BChapter 5: Insyde BIOS Setup 5.3 Using Recovery Wizard to Restore Computer Note: Before starting the recovery process, make sure to backup all user data. The data will be lost after the recovery process. Important: Before starting the recovery process, remove the PCI/ PCIe card and CFast card. To enable quick one-key recovery procedure: 1.

  • Page 58: Chapter 6: Driver Installation

    IP69K Stainless P-Cap Panel PC User Manual Chapter 6: Driver Installation This chapter provides guideline to driver installations.

  • Page 59: Chipset Driver

    5BChapter 6: Driver Installation 6.1 Chipset Driver Follow instructions below to install Chipset driver. 1. Open the Driver CD (included in the package) and select Chipset driver. 2. Installation window will pop up, select Next.
  • Page 60 IP69K Stainless P-Cap Panel PC User Manual 3. Select Accept to agree with the terms of license agreement. 4. Check the ReadMe file information, select Install to continue.

  • Page 61: Graphic Driver

    5BChapter 6: Driver Installation 5. Wait for the driver to be installed. When installation completed, select Restart Now to restart your computer. 6.2 Graphic Driver Follow instructions below to install Graphic driver. 1. Open the Driver CD (included in the package) and select Graphic driver.
  • Page 62 IP69K Stainless P-Cap Panel PC User Manual 2. Installation window will pop up, select Next. 3. Select Accept to agree with the terms of license agreement.
  • Page 63 5BChapter 6: Driver Installation 4. Check the ReadMe file information, select Next to continue.
  • Page 64 IP69K Stainless P-Cap Panel PC User Manual 5. Wait for the driver to be installed. 6. Select Next to continue.
  • Page 65 5BChapter 6: Driver Installation 7. After installation is completed, select “Yes, I want to restart this computer now”, and click Finish.

  • Page 66: Management Engine (Me)

    IP69K Stainless P-Cap Panel PC User Manual 6.3 Management Engine (ME) Follow instructions below to install Management Engine (ME) . 1. Open the Driver CD (included in the package) and select ME driver. 2. Select Next to start the installation.
  • Page 67 5BChapter 6: Driver Installation 3. Select Next to agree with the terms of license agreement. 4. Wait for the driver to be installed.
  • Page 68 IP69K Stainless P-Cap Panel PC User Manual 5. When installation completed, select Finish complete installation.

  • Page 69: Audio Driver

    5BChapter 6: Driver Installation 6.4 Audio Driver Follow instructions below to install Audio driver. 1. Open the Driver CD (included in the package) and select Audio driver. 2. Select Next to continue.

  • Page 70: Ethernet Driver

    IP69K Stainless P-Cap Panel PC User Manual 3. When installation completed, select Finish complete installation. 6.5 Ethernet Driver Follow instructions below to install LAN driver. 1. Open the Driver CD (included in the package) and select LAN driver.
  • Page 71 5BChapter 6: Driver Installation 2. When compression is complete, select Next. 3. Read the license agreement, and then select Next.
  • Page 72 IP69K Stainless P-Cap Panel PC User Manual 4. System displays the installed packages, select Next. 5. Confirm the installation, select Install to start the installation.

  • Page 73: Watchdog Driver Installation

    5BChapter 6: Driver Installation 6. When installation is completed, select Finish to close the window. 6.6 Watchdog Driver Installation For more details about Winmate Watchdog, please download Watchdog Guide from Winmate Downloads Center: http://dc.winmate.com.tw/_downloadCenter/2017/Embedded%20Computing/Watchdog%20Guide_ IB_IH_IV_IK.pdf Follow instructions below to install Watchdog driver.
  • Page 74 IP69K Stainless P-Cap Panel PC User Manual 4. When Windows Security dialog appear, select install to continue the Installation. 5. Wait for installation to complete. When installation is complete, press any key to close.
  • Page 75 5BChapter 6: Driver Installation 6. Open the Driver CD (included in the package) and select Watchdog AP.
  • Page 76 IP69K Stainless P-Cap Panel PC User Manual 7. Select Next. 8. The installed storage location is displayed, select Next to continue.
  • Page 77 5BChapter 6: Driver Installation 9. Select Next to start the installation. 10. When installation is completed, select Finish to close the window.

  • Page 78: Chapter 7: Technical Support

    IP69K Stainless P-Cap Panel PC User Manual Chapter 7: Technical Support This chapter includes the directory for technical support. Free technical support is available from our engineers every business day. We are always ready to give advice on application requirements or specific information on the installation and operation of any of our products.

  • Page 79: Software Developer Support

    6BChapter 7: Technical Support 7.1 Software Developer Support Winmate provides the following SDK and Utilities for the IP69K Stainless P-CAP Panel PC. Item File Type Description Watchdog SDK Utility Watchdog Utility To find the Drivers and SDK, please refer to the Driver CD that comes in the package or contact us.

  • Page 80: Appendix A: Product Specifications

    IP69K Stainless P-Cap Panel PC User Manual Appendix A: Product Specifications Hardware Specifications Model Name R15IK3S-SPC369 R19IK3S-SPM169 W22IK3S-SPA369 W24IK3S-SPA269 Display Size 15” 19” 21.5” 23.8” Resolution 1024 x 768 1280 x 1024 1920 x 1080 1920 x 1080 300 ��������/����...
  • Page 81 1. Accessories and Integrated Options may vary depending on your configuration. The product shown in this datasheet is a standard model. For diagrams that contain customized or optional I/O, please contact the Winmate Sales Team for more information. 2. All specifications are subject to change without prior notice.
  • Page 82 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 24158, Taiwan, R.O.C www.winmate.com Copyright © 2021 Winmate Inc. All rights reserved.

This manual is also suitable for:

R15ik3s-spc369W22ik3s-spa369W24ik3s-spa269
