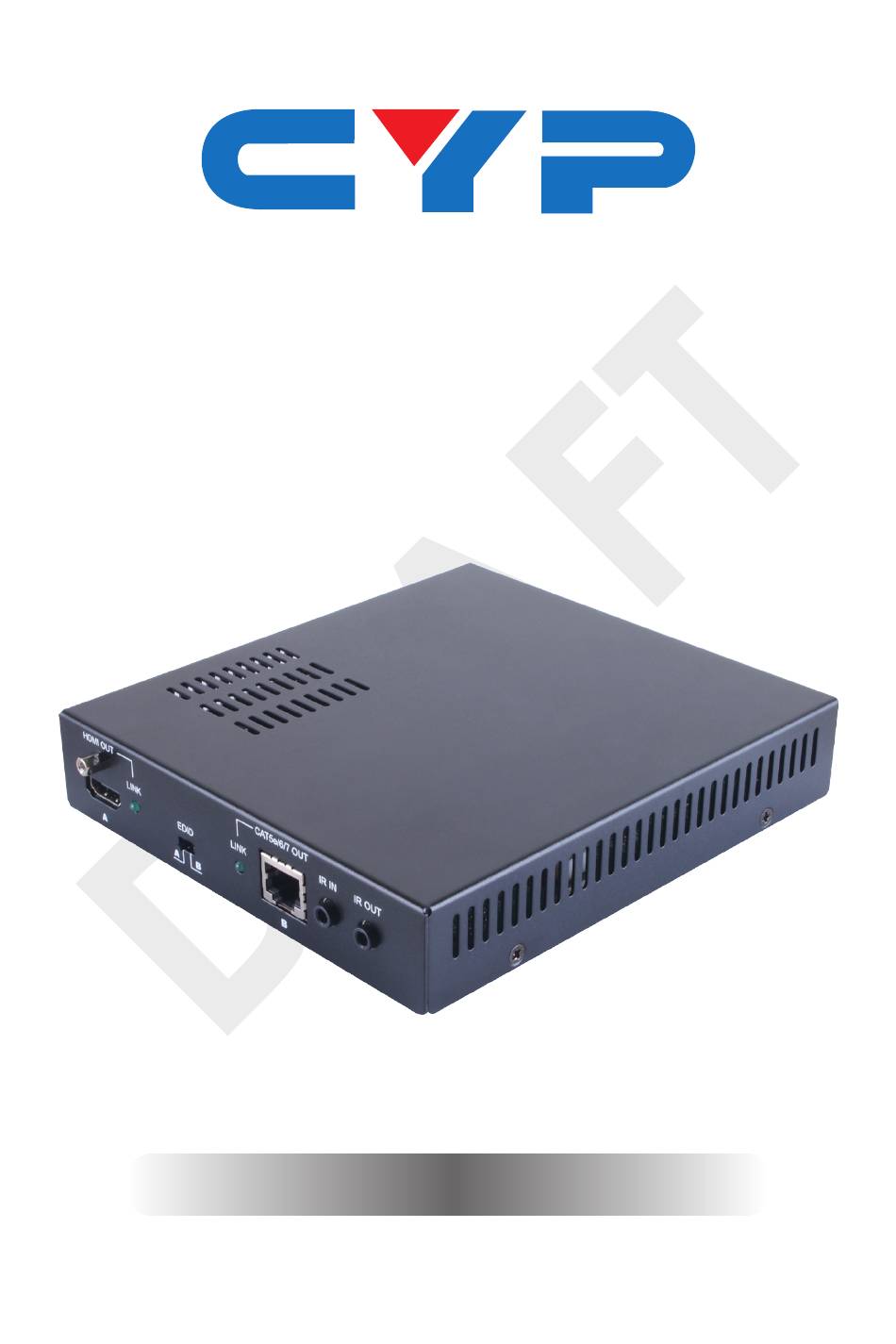

- Page 1 CHDBX-1H1CPL 1 by 2 CAT5e/6/7 over HDMI & CAT5e/6/7 with IR Splitter Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 6.3 IR Cable Pin Assignment....5 7. -
Page 6: Introduction
1. INTRODUCTION The CAT5e/6/7 over HDMI and CAT5e/6/7 Splitter can convert a single CAT5e/6/7 input and 2-way IR control to a single CAT5e/6/7 output and includes a simultaneous HDMI bypass output. It supports resolutions up to 1080p Full HD, 4K×2K timing, 3D and multi-channel digital audio formats (such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD). -
Page 7: Features
5. FEATURES • HDMI with 3D & 4Kx2K supported, HDCP and DVI compliant • Simultaneous HDMI and CAT5e/6/7 outputs • Supports data rate from 250Mbps up to 3Gbps • Supports wide range of PC resolutions from VGA to WUXGA and HDTV resolutions up to 4Kx2K (3840x2160@24/25/30Hz, 4096x2160@24Hz and 4K2K@60 YUV_420) •... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel CAT5e/6/7 IN LINK POWER SERVICE DC 24V SERVICE: This slot is reserved for firmware update only. CAT5e/6/7 IN & LINK LED: Connect from HDMI over CAT5e/6/7 Transmitter device along with source device for input signal distribution up to 60m. -
Page 9: Rear Panel
6.2 Rear Panel HDMI OUT CAT5e/6/7 OUT IR IN IR OUT LINK LINK EDID HDMI OUT & LINK LED: Connect to HDMI display for instant image display or cascade with another family type Transmitter. The LINK LED will illuminate once and active display signal is detected. This device obtain the last memory function therefore, the device will use the last output port's EDID when The output port is not connected to a display after power cycling. -
Page 10: Ir Cable Pin Assignment
6.3 IR Cable Pin Assignment IR Blaster Power IR Blaster Signal IR Extender IR Signal Power Grounding... -
Page 11: Connection Diagram
7. CONNECTION DIAGRAM DVD or Blu-ray Player HDMI 1.5m RS-232 Adaptor 60° IR Blaster 60° IR2 Extender IR Extender HDMI In RS232 In IR1 Blaster RS-232 Router with Equipped CAT5e/6/7 Internet PC or Cable Connection Notebook 3D TV/Display CAT5e/6/7 IN Smartphone LINK POWER... -
Page 12: Specifications
8. SPECIFICATIONS Video Bandwidth 340Mbps/10.2Gbps Input ports 1 x CAT5e/6/7, 1 x IR IN, 1 x USB (Service only) Output ports 1 x HDMI, 1 x CAT5e/6/7 1 x IR OUT, Resolution Up to 4Kx2K (3840x2160@24/25/30Hz/ 4096x2160@24Hz/4K2K@60Hz YUV_420) HDMI Input & Output Up to 10m@8 or12-bit 1080p Cable Distance CAT5e/6/7 Output... -
Page 13: Cat5E/6/7 Cable Specification
8.1 CAT5e/6/7 Cable Specification Cable Range Pixel clock Video Data Supported Video Type rate Rate CAT5e/6/7 60 m <=225 MHz <=5.3 Gbps Up to 1080p, 60 Hz, 36 (HD Video) bits, 3D (data rates lower than 5.3 Gbps or below 225 MHz TMDS clock). - Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw 20130625 MPM-CHDBX1H1CE...
