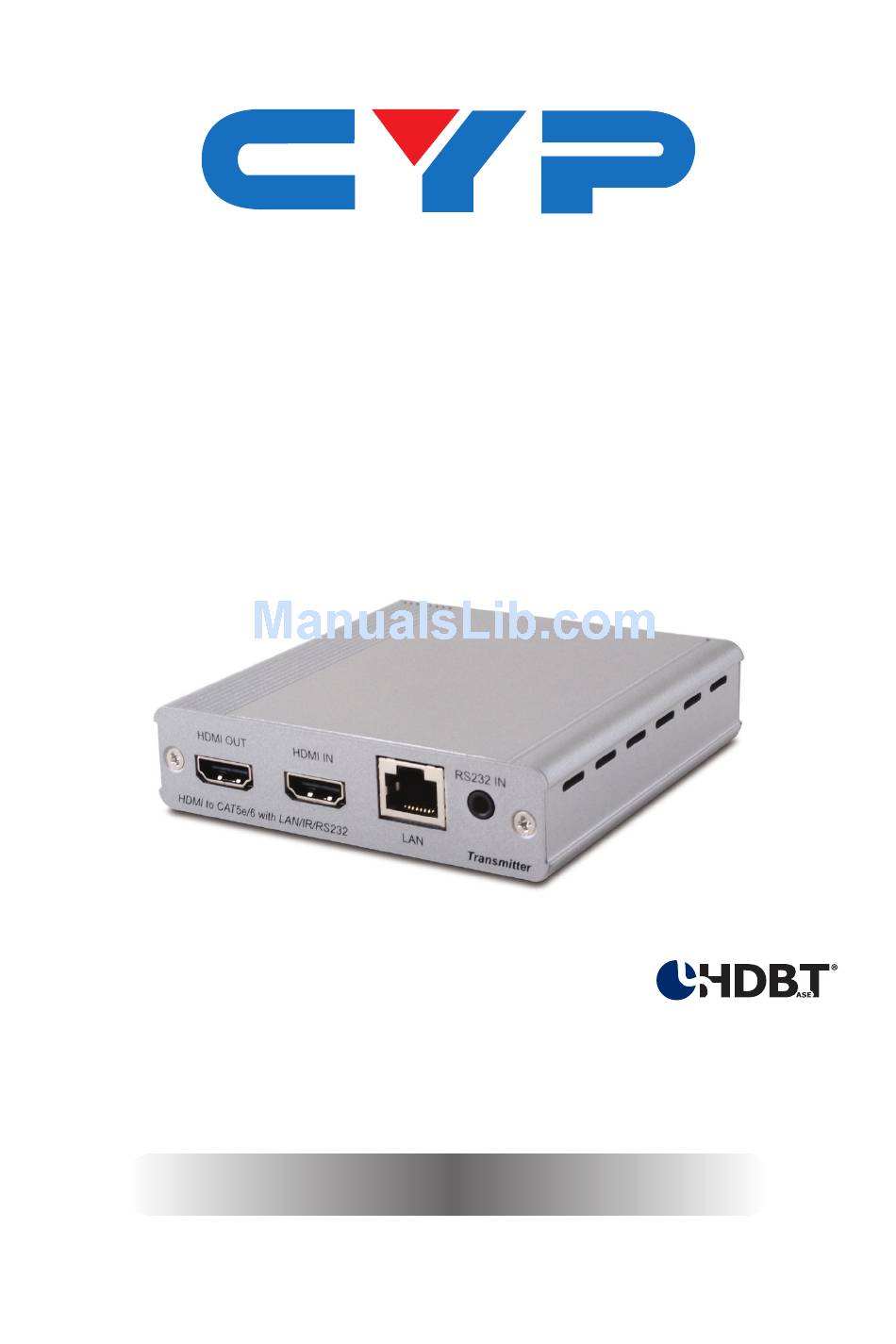

- Page 1 CHDBT-1H1CE 1×2 HDMI over HDMI and CAT5e/6/7 Splitter with IR/RS-232, LAN Serving and Bidirectional PoE Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Revision History
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. - Page 5 CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel .........3 6.2 Rear Panel .........4 6.3 IR Cable Pin Assignment ....5 6.4 D-Sub 9-Pin Definitions ......5 7.
-
Page 6: Introduction
1. INTRODUCTION The HDMI over HDMI and CAT5e/6/7 Splitter can split and distribute a single HDMI input, 2-way IR or RS-232 control and LAN serving to a single CAT5e/6/7 output and includes a simultaneous HDMI bypass output. It supports resolutions up to 1080p Full HD, 4K×2K timing, 3D and multi-channel digital audio formats (such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD). -
Page 7: Features
5. FEATURES • HDMI with 4K×2K resolution and 3D support, HDCP and DVI compliant • Simultaneous HDMI and CAT5e/6/7 outputs • Supports data rate from 250 Mbps up to 3 Gbps • Supports a wide range of PC resolutions from VGA to WUXGA (RB) and HDTV resolutions up to 4K×2K (3840 ×... -
Page 8: Operation Controls And Functions

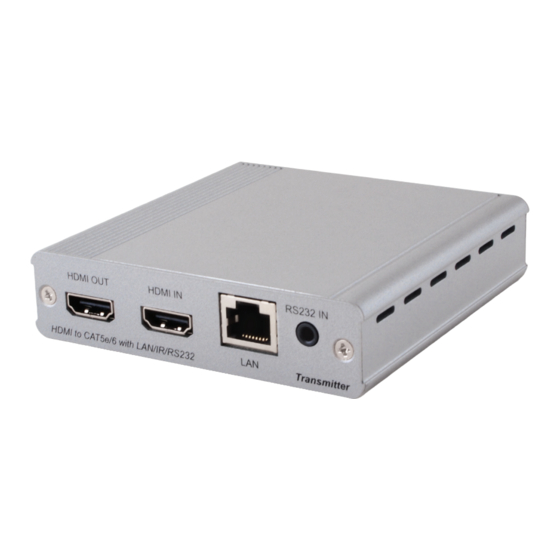

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel RS232 IN HDMI OUT HDMI IN HDMI to CAT5e/6 with LAN/IR/RS232 Transmitter HDMI OUT: Connect to a HDMI display for local monitoring of the HDMI signal or cascade to another Splitter. HDMI IN: Connect to an HDMI source device such as DVD/Blu-ray player or games console. -
Page 9: Rear Panel
6.2 Rear Panel IR 1 POWER BLASTER LINK IR 2 DC 24V EXTENDER CAT5e/6 OUT POWER LED: The LED will illuminate when connected to an active power supply. DC 24V: Connect the 24V DC power supply to the unit and plug the adaptor into an AC outlet. -
Page 10: Ir Cable Pin Assignment
6.3 IR Cable Pin Assignment IR Blaster Power 3.3V IR Blaster Signal IR Extender IR Signal Power 3.3V Ground 6.4 D-Sub 9-Pin Definitions DEFINE TX/RX TxD/RxD RxD/TxD... -
Page 11: Connection Diagram
7. CONNECTION DIAGRAM Blu-ray Player or Games Console Local Display Internet Connected Router HDMI Input HDMI RS-232 Output RS232 IN HDMI OUT HDMI IN Power HDMI to CAT5e/6 with LAN/IR/RS232 Transmitter Supply POWER IR 1 BLASTER LINK IR 2 DC 24V EXTENDER CAT5e/6 OUT RS-232 Equipped... -
Page 12: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications Video Bandwidth 300 Mbps/10.2 Gbps Input Ports 1×HDMI, 1×3.5mm Phone Jack for RS-232, 1×IR IN, 1×LAN, 1×USB (Service only) Output Ports 1×HDMI, 1×CAT5e/6/7, 1×IR OUT HDMI Supported 480i~1080p@50/60 Hz, 1080p@24 Hz, 4K×2K Resolutions (3840×2160@30 Hz/4096×2160@24/25Hz) & VGA~WUXGA (RB) HDMI Input 10m (1080p@8/12-bit), 5m (4K×2K) -
Page 13: Cat5E/6/7 Cable Specification
8.2 CAT5e/6/7 Cable Specification CABLE TYPE RANGE PIXEL VIDEO SUPPORTED VIDEO CLOCK DATA RATE RATE CAT5e/6/7 100 m ≤225 ≤5.3 Gbps Up to 1080p, 60 Hz, 36 bits, 3D (data rates (HD Video) lower than 5.3 Gbps or below 225 MHz TMDS clock). - Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw 20130625 MPM-CHDBT1H1CE...
