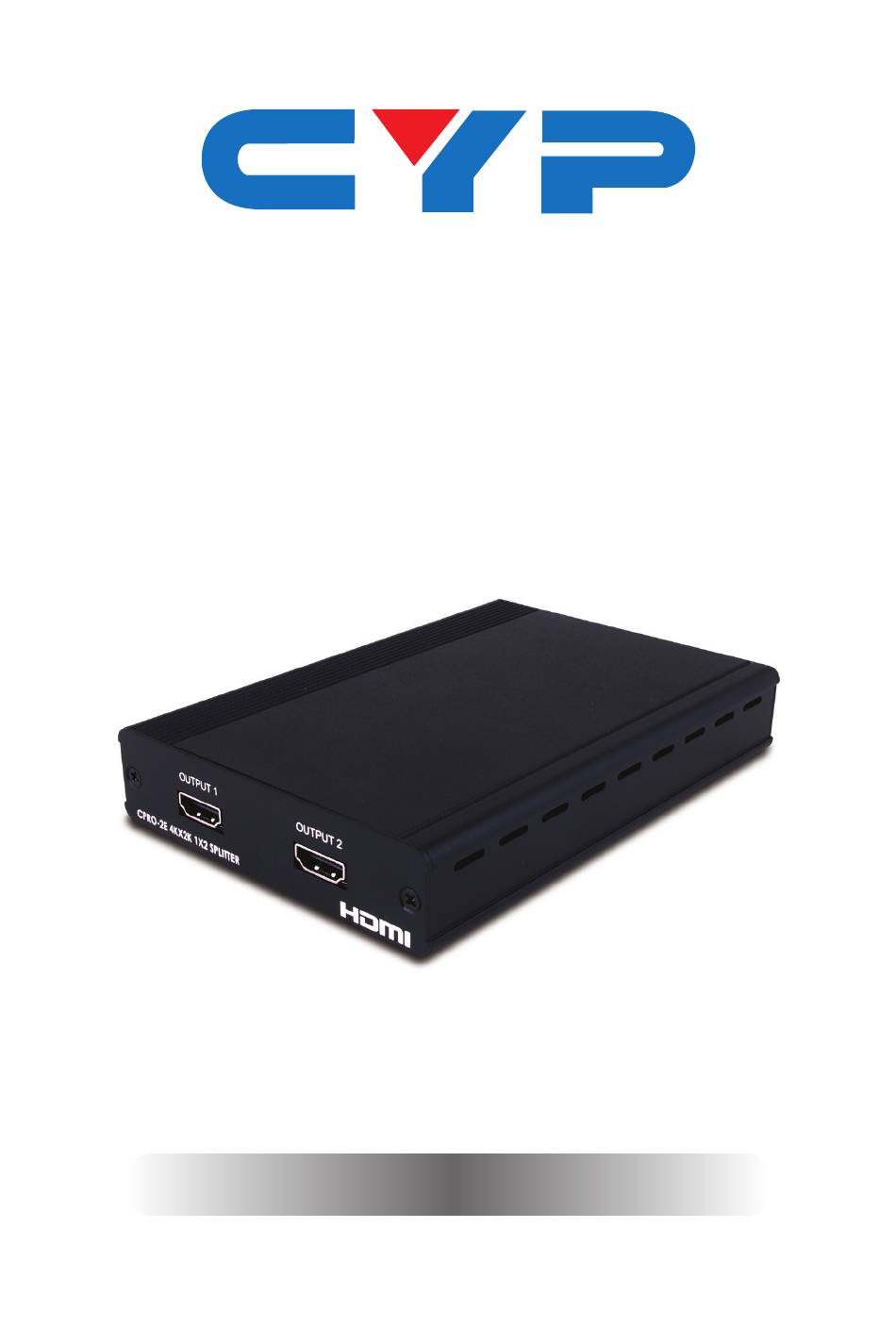

CPRO-2E
1×2 HDMI Splitter
Operation Manual
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CPRO-2E and is the answer not in the manual?

Questions and answers

Related Manuals for CYP CPRO-2E

Summary of Contents for CYP CPRO-2E

  • Page 1 CPRO-2E 1×2 HDMI Splitter Operation Manual Operation Manual...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel .........3 6.2 Rear Panel .........3 7. Connection Diagram ......4 8.

  • Page 6: Introduction

    1. INTRODUCTION This high performance 1 by 2 HDMI splitter distributes one HDMI input to two simultaneous HDMI outputs and supports 4K×2K, 3D, 12-bit Deep Color as well as High Definition Lossless Audio. With its 3Gbps bandwidth it supports the latest HDMI standards so you can be sure of superior HDMI distribution.

  • Page 7: Features

    5. FEATURES • HDMI and DVI compatible • Fully HDCP compliant • Supports 3D • Supports HDTV resolutions up to 4K×2K@30 Hz • Supports PC Resolutions of VGA to WUXGA • Supports 1080p@60 Hz, Deep Color 12-bit • Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio •...

  • Page 8: Operation Controls And Functions

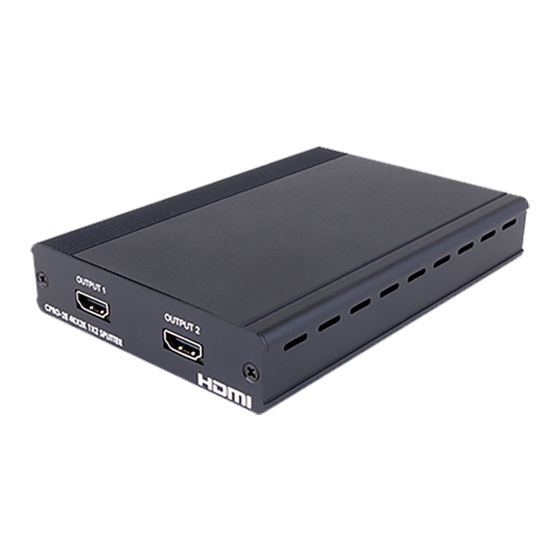

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel OUTPUT 1 OUTPUT 2 CPRO-2E 4KX2K 1X2 SPLITTER HDMI OUTPUTS 1/2: Connect each of the output ports to an HDMI display for simultaneous HDMI distribution. 6.2 Rear Panel POWER DC 5V INPUT...

  • Page 9: Connection Diagram

    7. CONNECTION DIAGRAM Blu-ray Player HDMI Input Power Supply POWER DC 5V INPUT SERVICE OUTPUT 1 OUTPUT 2 CPRO-2E 4KX2K 1X2 SPLITTER Simultaneous HDMI Outputs Projector HDTV...

  • Page 10: Specifications

    8. SPECIFICATIONS Video Bandwidth 340 MHz/10.2 Gbps Input Port 1×HDMI (Female connector), 1×USB (Manufacturer use only) Output Ports 2×HDMI (Female connector) Output Resolutions 480i~1080p@50/60, 1080p@24/50/60, VGA~UXGA, Ultra HD (4K×2K@30) Power Supply 5 V/2.6 A DC (US/EU standards, CE/FCC/UL certified) ESD Protection Human body model: ±8 kV (air-gap discharge) ±4 kV (contact discharge)

  • Page 11: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM 4K×2K Ultra HD Resolution (3840×2160) HDMI High-Definition Multimedia Interface HDTV High-Definition Television...
  • Page 12 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
  • Page 13 CPRO-4E 1×4 HDMI Splitter Operation Manual Operation Manual...
  • Page 15 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 16 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
  • Page 17 CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel .........3 6.2 Rear Panel .........3 7. Connection Diagram ......4 8.

  • Page 18: Introduction

    1. INTRODUCTION This high performance 1 by 4 HDMI splitter distributes one HDMI input to up to four simultaneous HDMI outputs and supports 4K×2K, 3D, 12- bit Deep Color as well as High Definition Lossless Audio. With its 3Gbps bandwidth it supports the latest HDMI standards so you can be sure of superior HDMI distribution.

  • Page 19: Features

    5. FEATURES • HDMI and DVI compatible • Fully HDCP compliant • Supports 3D • Supports HDTV resolutions up to 4K×2K@30 Hz • Supports PC Resolutions of VGA to WUXGA • Supports 1080p@60 Hz, Deep Color 12-bit • Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio •...

  • Page 20: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel OUTPUT 1 INPUT SYNC POWER DC 5V SERVICE EDID 4 5 6 7 SERVICE: Manufacturer use only. HDMI OUTPUT 1: Connect each of the output ports to the HDMI display for simultaneous HDMI distribution. HDMI INPUT: Connect the input port to the HDMI or DVI output of your source equipment such as DVD player or set-top box with an HDMI cable.

  • Page 21: Connection Diagram

    7. CONNECTION DIAGRAM Blu-ray Player AV Receiver HDMI Input Power Supply OUTPUT 1 INPUT SYNC POWER DC 5V SERVICE EDID OUTPUT 2 OUTPUT 3 OUTPUT 4 CPRO-4E 4KX2K 1X4 SPLITTER Simultaneous HDMI Outputs Projector Projector HDTV HDTV...

  • Page 22: Specifications

    8. SPECIFICATIONS Video Bandwidth 300 MHz/9 Gbps Input Port 1×HDMI (Female connector), 1×USB (Manufacturer use only) Output Ports 4×HDMI (Female connector) Output Resolutions 480i~1080p@50/60, 1080p@24/50/60, VGA~UXGA, Ultra HD (4K×2K@30) ESD Protection Human body model: ±8 kV (air-gap discharge) ±4 kV (contact discharge) Dimensions 142 mm (W)×105 mm (D)×38 mm (H) Weight...
  • Page 24 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
  • Page 25 CPRO-8E 1×8 HDMI Splitter Operation Manual Operation Manual...
  • Page 27 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 28 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
  • Page 29 CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel .........3 6.2 Rear Panel .........3 7. Connection Diagram ......4 8.

  • Page 30: Introduction

    1. INTRODUCTION This high performance 1 by 8 HDMI splitter distributes one HDMI input to up to eight simultaneous HDMI outputs and supports 4K×2K, 3D, 12- bit Deep Color as well as High Definition Lossless Audio. With its 3Gbps bandwidth it supports the latest HDMI standards so you can be sure of superior HDMI distribution.

  • Page 31: Features

    5. FEATURES • HDMI and DVI compatible • Fully HDCP compliant • Supports 3D • Supports HDTV resolutions up to 4K×2K@30 Hz • Supports PC Resolutions of VGA to WUXGA • Supports 1080p@60 Hz, Deep Color 12-bit • Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio •...

  • Page 32: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel CPRO-8E EDID OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT 4KX2K SPLITTER EDID STD/TV: The default factory setting is TV, when in this mode, the unit will detect the first HDMI output device's EDID settings and record them in the unit's memory.

  • Page 33: Connection Diagram

    7. CONNECTION DIAGRAM Blu-ray Player HDMI Input Simultaneous HDMI Outputs Power Supply SERVICE OUTPUT OUTPUT SYNC INPUT OUTPUT POWER DC 5V CPRO-8E EDID OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT 4KX2K SPLITTER Projector Projector Projector Projector HDTV HDTV HDTV HDTV...

  • Page 34: Specifications

    8. SPECIFICATIONS Video Bandwidth 300 MHz/9 Gbps Input Port 1×HDMI (Female connector), 1×USB (Manufacturer use only) Output Ports 8×HDMI (Female connector) Output Resolutions 480i~1080p@50/60, 1080p@24/50/60, VGA~UXGA, Ultra HD (4K×2K@30) ESD Protection Human body model: ±8 kV (air-gap discharge) ±4 kV (contact discharge) Dimensions 240 mm (W)×110 mm (D)×30 mm (H) Weight...
  • Page 36 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
