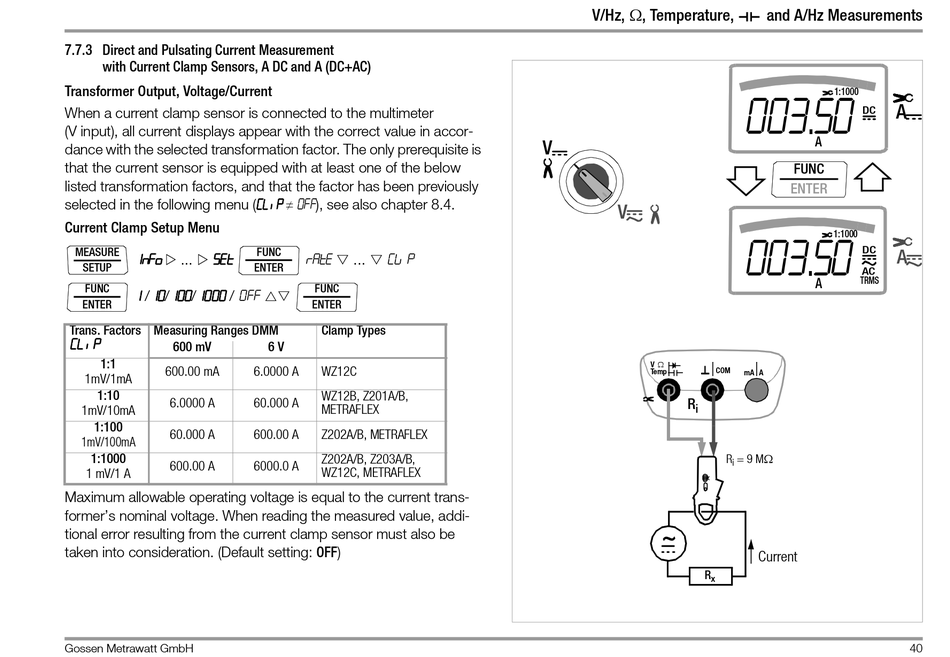

7.7.3 Direct and Pulsating Current Measurement

with Current Clamp Sensors, A DC and A (DC+AC)

Transformer Output, Voltage/Current
When a current clamp sensor is connected to the multimeter
(V input), all current displays appear with the correct value in accor-
dance with the selected transformation factor. The only prerequisite is
that the current sensor is equipped with at least one of the below
listed transformation factors, and that the factor has been previously
selected in the following menu (Cl ip 0FF), see also chapter 8.4.
Current Clamp Setup Menu
MEASURE
...
1nFo SET
 
SETUP
FUNC
1 / 10/100/1000 / 0ff
ENTER
Trans. Factors Measuring Ranges DMM
CL IP
600 mV
1:1
600.00 mA
1mV/1mA
1:10
6.0000 A
1mV/10mA
1:100
60.000 A
1mV/100mA
1:1000
600.00 A
1 mV/1 A
Maximum allowable operating voltage is equal to the current trans-
former's nominal voltage. When reading the measured value, addi-
tional error resulting from the current clamp sensor must also be
taken into consideration. (Default setting: OFF)
Gossen Metrawatt GmbH
FUNC
rAtE ...
CLIP
 
ENTER
FUNC

ENTER
Clamp Types
6 V
6.0000 A WZ12C
WZ12B, Z201A/B,
60.000 A
METRAFLEX
600.00 A Z202A/B, METRAFLEX
Z202A/B, Z203A/B,
6000.0 A
WZ12C, METRAFLEX
V/Hz, , Temperature,
V
V
V 
COM
Temp
R
i
~
R
x
and A/Hz Measurements
1:1000
003.50
A
DC
A
FUNC
ENTER
1:1000
003.50
DC
A
AC
TRMS
A
mA A
R = 9 M
i
Current
40
