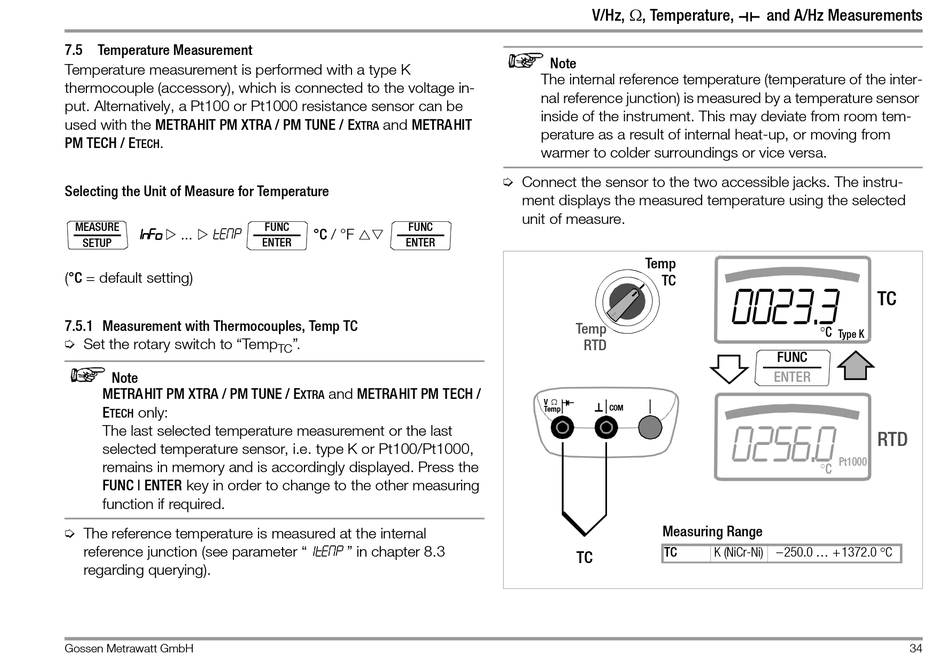

7.5 Temperature Measurement

Temperature measurement is performed with a type K
thermocouple (accessory), which is connected to the voltage in-
put. Alternatively, a Pt100 or Pt1000 resistance sensor can be
used with the METRAHIT PM XTRA / PM TUNE / E
PM TECH / E .
TECH
Selecting the Unit of Measure for Temperature
MEASURE
...
1nFo   tEMP
SETUP
(°C = default setting)

7.5.1 Measurement with Thermocouples, Temp TC

➭ Set the rotary switch to "Temp
Note
METRAHIT PM XTRA / PM TUNE / E
E only:
TECH
The last selected temperature measurement or the last
selected temperature sensor, i.e. type K or Pt100/Pt1000,
remains in memory and is accordingly displayed. Press the
FUNC | ENTER key in order to change to the other measuring
function if required.
➭ The reference temperature is measured at the internal
reference junction (see parameter "1tEMP " in chapter 8.3
regarding querying).
Gossen Metrawatt GmbH
and METRAHIT
XTRA
FUNC FUNC
°C / °F

ENTER ENTER
".
TC
and METRAHIT PM TECH /
XTRA
V/Hz, , Temperature,
Note
The internal reference temperature (temperature of the inter-
nal reference junction) is measured by a temperature sensor
inside of the instrument. This may deviate from room tem-
perature as a result of internal heat-up, or moving from
warmer to colder surroundings or vice versa.
➭ Connect the sensor to the two accessible jacks. The instru-
ment displays the measured temperature using the selected
unit of measure.
Temp
TC
Temp
RTD
V 
COM
Temp
Measuring Range
TC
TC
and A/Hz Measurements
0023.3
TC
C
Type K
FUNC
ENTER
0256.0
RTD
Pt1000
C
K (NiCr-Ni) –250.0  +1372.0C
