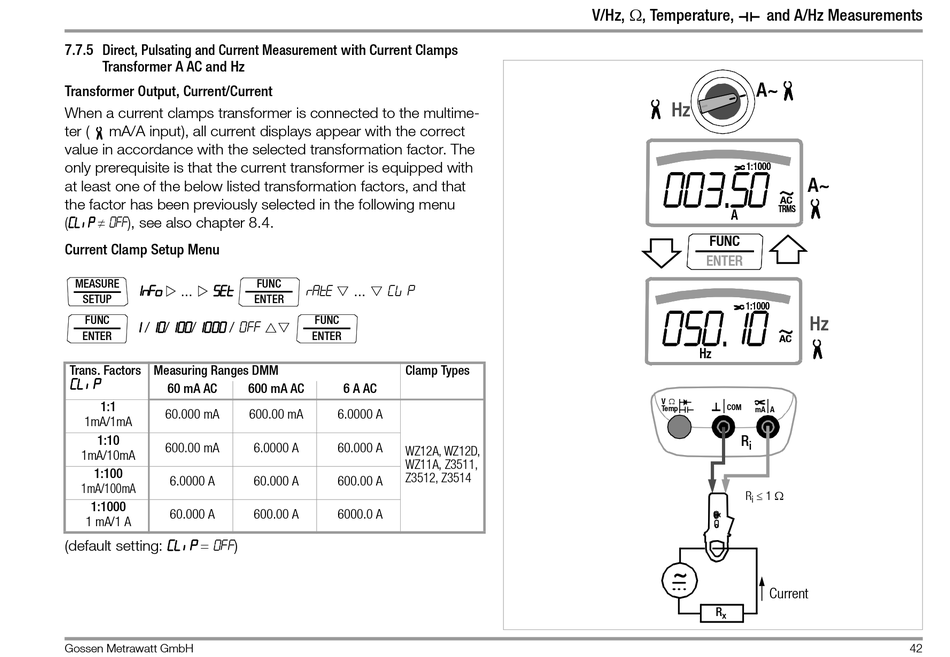

7.7.5 Direct, Pulsating and Current Measurement with Current Clamps
Transformer A AC and Hz
Transformer Output, Current/Current
When a current clamps transformer is connected to the multime-
ter ( mA/A input), all current displays appear with the correct
value in accordance with the selected transformation factor. The
only prerequisite is that the current transformer is equipped with
at least one of the below listed transformation factors, and that
the factor has been previously selected in the following menu
(Cl ip 0FF), see also chapter 8.4.
Current Clamp Setup Menu
MEASURE
...
1nFo   SET
SETUP
FUNC
1 / 10/100/1000 / 0ff
ENTER
Trans. Factors Measuring Ranges DMM
CL IP
60 mA AC
1:1
60.000 mA
1mA/1mA
1:10
600.00 mA
1mA/10mA
1:100
6.0000 A
1mA/100mA
1:1000
60.000 A
1 mA/1 A
(default setting: Cl ip 0FF)
Gossen Metrawatt GmbH
FUNC
rAtE
...
  CLIP
ENTER
FUNC

ENTER
Clamp Types
600 mA AC 6 A AC
600.00 mA 6.0000 A
6.0000 A 60.000 A
WZ12A, WZ12D,
WZ11A, Z3511,
Z3512, Z3514
60.000 A 600.00 A
600.00 A 6000.0 A
V/Hz, , Temperature,
and A/Hz Measurements
A~ A~
Hz Hz
1:1000 1:1000
003.50 003.50
A A
FUNC FUNC
ENTER ENTER
1:1000 1:1000
050.10 050.10
Hz Hz
V 
COM
Temp
mA A
R
i
1 
R
i
~
Current
R
x
A~ A~
AC AC
TRMS TRMS
Hz Hz
AC AC
