Assembly instructions for Etac Crissy

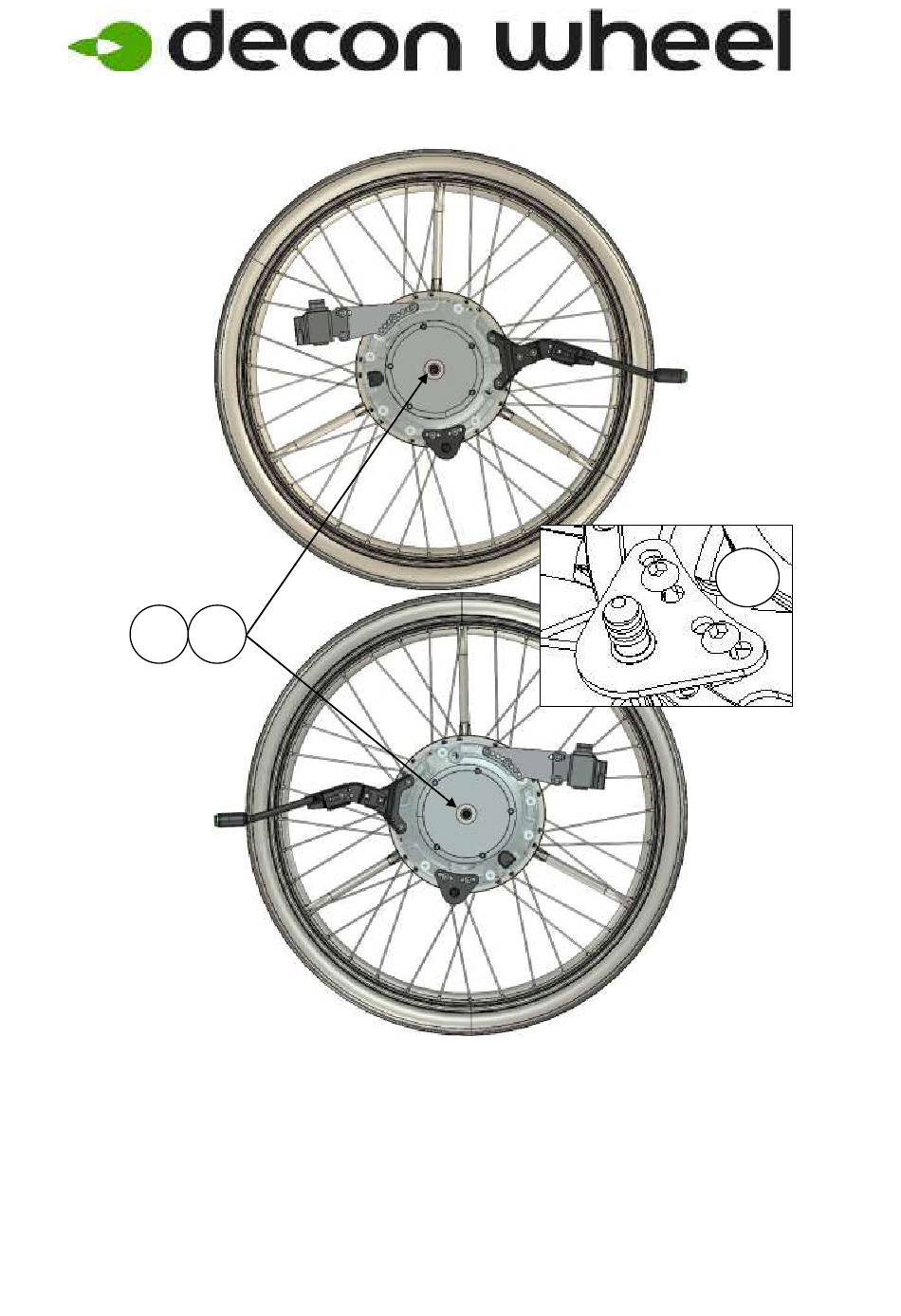

1. Remove wheels and brakes.
8
9
2. Check the correct placement for the eMove, and that it is,
Axle Ø12,0 x 51 with Part Number: XOE-2530E-BO
Spacer with Part Number: XOE-25383-00300052
Stop pins are assembled with Part Number: 320003
MEM6433P and MEM6434P
10
2021-07-01
Advertisement
Related Manuals for Decon wheel MEM6433P
Summary of Contents for Decon wheel MEM6433P
- Page 1 Assembly instructions for Etac Crissy MEM6433P and MEM6434P 1. Remove wheels and brakes. 2. Check the correct placement for the eMove, and that it is, Axle Ø12,0 x 51 with Part Number: XOE-2530E-BO Spacer with Part Number: XOE-25383-00300052 Stop pins are assembled with Part Number: 320003...
- Page 2 Direction of travel 3. Assembly the plate (right side) according to picture. Placement Options: It can be mounted in all position, but only the centre located in the respective holes in the frame. 2021-07-01...
- Page 3 4. See picture above for mount the bracket. Parts for right side mounting: Item No. Part Number Description 100 400 017 Spacer 405239 Nordlock Washer M16 XSM16M Nut M16 low MED4006 Rev2 Support Plate Outside MED4007 Rev2 Support Plate inside 320020 Bracket HW063...
- Page 4 Om inget annat specificeras, använd följande åtdragningsmoment. Unless otherwise specified, use the following tightening torque. Metriska grovgängor, stål. Metric coarse threads, steel. Gänga / Thread Åtdragningsmoment / Tightening torque 1,2 Nm 3 Nm 6 Nm 10 Nm 25 Nm 50 Nm 85 Nm Navhylsa.
