Decon wheel MED3197 Assembly Instructions

Hide thumbs
1
2
3
4

Advertisement

Table of Contents

Assembly instructions for Mio Move with e-Drive

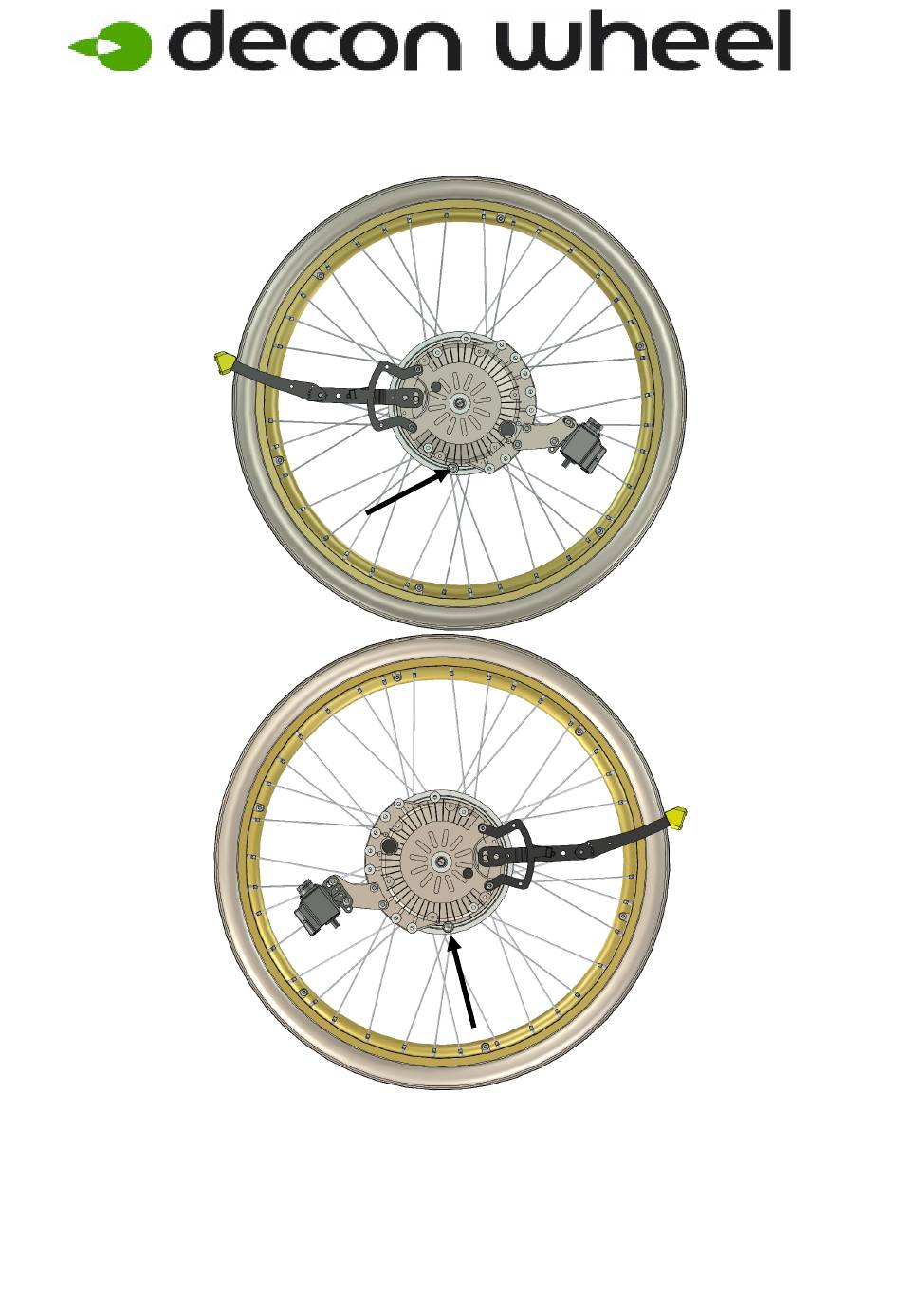

1. Remove wheels on both sides.
2. Check the correct placement for the stop pin and remove Battery Box and anti-tip
devices.
NOTE!
The eDrive must be fitted with 24x1tires, otherwise it interferes with the brakes.
MED3197
2019-10-02
