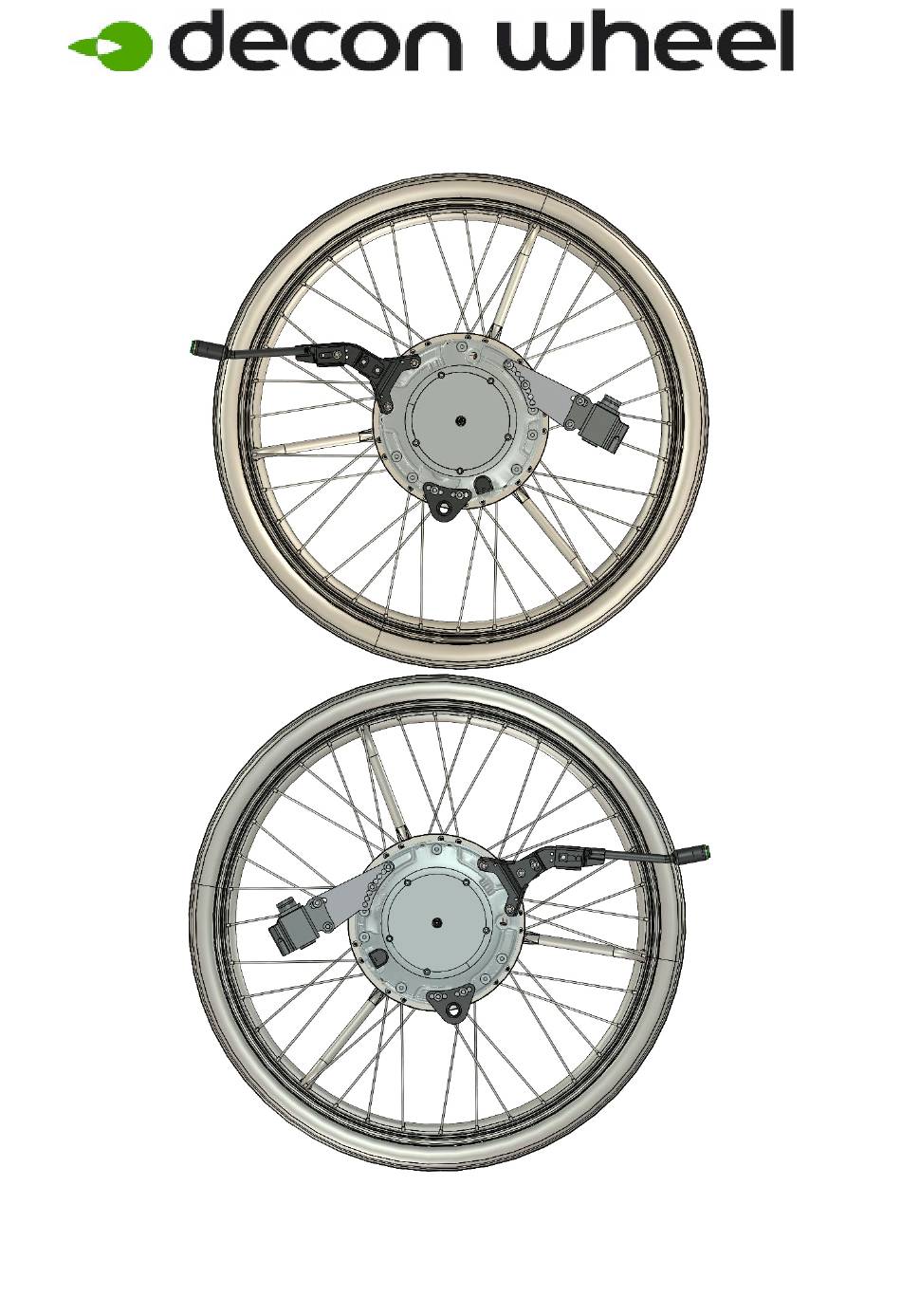

- Page 1 Assembly instructions for XLT Type Box MEM6035 and MEM6036 Type Box 1. Remove wheels and brakes. 2. Check the correct placement for the eMove with axle Ø12,7 x 46 with Part number: XOE-2530E-00. 2020-06-25...
- Page 2 Assemble for the Box frame. 3. Remove original wheel brackets 4. Assembly the new plates (right side) according to pictures. Parts for right side mounting: Item No. Part Number Description XSM6X20 Screw M6 x 20 300011 Chassi Bracket XOE-22294-BO Right Bracket 100 400 007 Spacer XSM8X20...
- Page 3 Åtdragningsmoment / Tightening torque Metriska grovgängor, stål. Metric coarse threads, steel. Gänga / Thread Åtdragningsmoment / Tightening torque 1,2 Nm 3 Nm 6 Nm 10 Nm 25 Nm 50 Nm 85 Nm Navhylsor. Sleeves. Gänga / Thread Åtdragningsmoment / Tightening torque M16x1 30 Nm M18x1...
