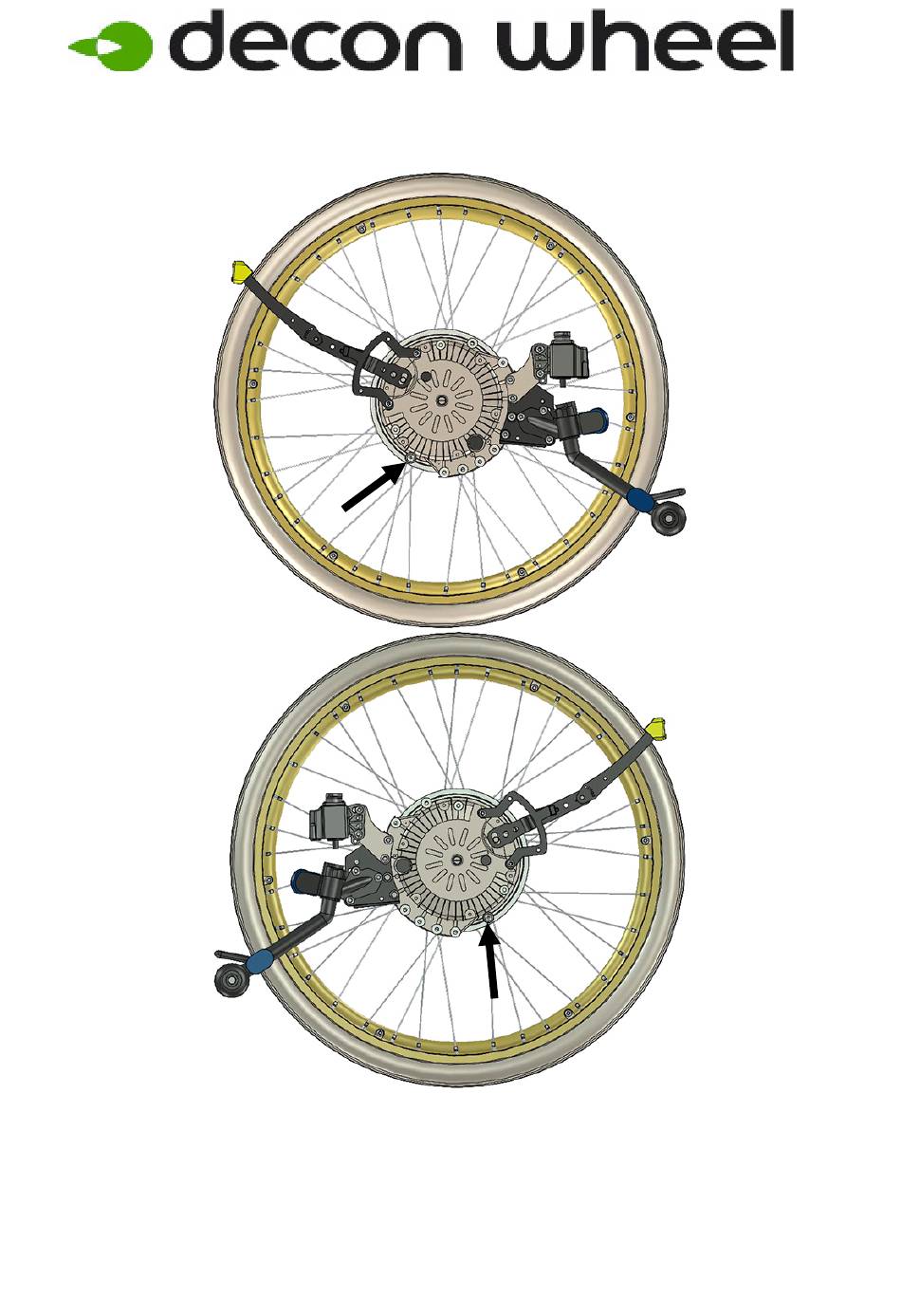

- Page 1 Assembly instructions for Levo LAE MED3124 1. Remove wheels and hub sleever on both sides. 2. Check the correct placement for the stop pin. Check that the Battery Box is removed on the E-Drive. Use the anti-tip devices on the eDrive.
- Page 2 3. Assemble the plate (right side) according to picture. Parts pair mounting set: Item No. Part Number Description 300065 Clamp Levo XSM8ML Nut Self-Locking M8 XSM8X55 Screw Round M8 x 55 100 400 031 Distans 26x8,3x22 MED1390 Bracket Levo 4. Assemble the back placed battery bag under and forward on the wheelchair. 2020-04-23...
- Page 3 MED1399 Joystick assembly Item No. Part Number Description XOC-48160-B0 Upper holder assembly 2 MED1399 Assy Joystick Bracket Levo 2020-04-23...
- Page 4 Åtdragningsmoment / Tightening torque Metriska grovgängor, stål. Metric coarse threads, steel. Gänga / Thread Åtdragningsmoment / Tightening torque 1,2 Nm 3 Nm 6 Nm 10 Nm 25 Nm 50 Nm 85 Nm Navhylsor. Sleeves. Gänga / Thread Åtdragningsmoment / Tightening torque M16x1 30 Nm M18x1...
