Assembly instructions for Focus/Focus 150
1. Remove wheels on both sides.

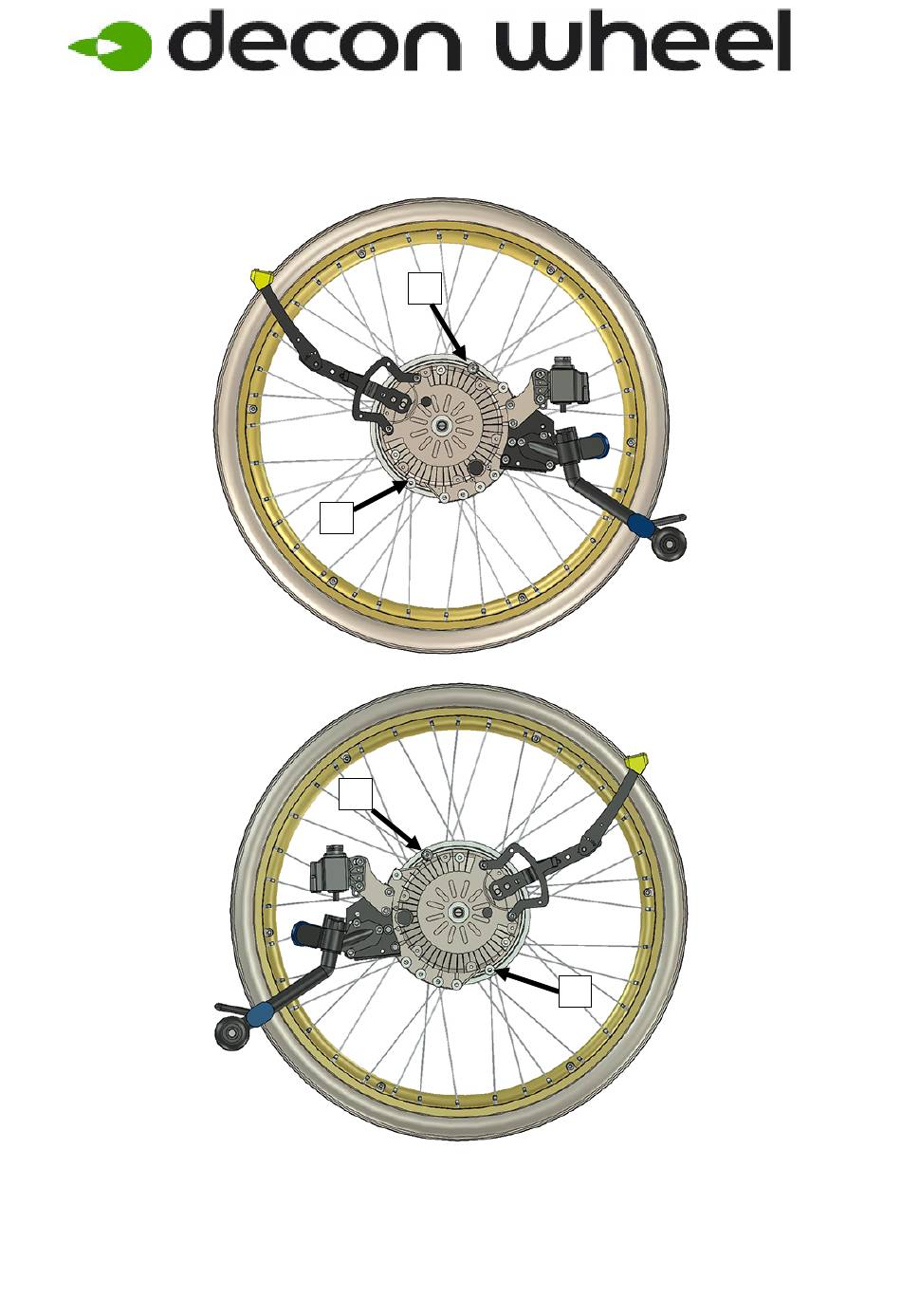

2. Check the correct placement for the stop pin. You can use the chair antitip
devices or use antitip devices on the E-drive unit. One of them must be
removed.
MED3035
A
B
A
B
2020-04-24
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Decon wheel Focus
Summary of Contents for Decon wheel Focus
- Page 1 Assembly instructions for Focus/Focus 150 MED3035 1. Remove wheels on both sides. 2. Check the correct placement for the stop pin. You can use the chair antitip devices or use antitip devices on the E-drive unit. One of them must be removed.
- Page 2 Only with battery bag 3. Placement for the adapter plate. 4. Assembly the plate (right side) according to picture. 5. Parts pair mountingset: Item No. Part Number Description MED2000 Bracket 100 400 004 Spacer 100 400 017 Spacer 405239 Nordlock Washer HW069 Hubsleever M16x1 MED2005...
-
Page 3: Joystick Assembly
Joystick Assembly MED1426 Item No. Part Number Description XOC-48160-B0 Upper holder assembly2 XSM6X30 Screw M6 x 30 XSM6BR Plain washer M6 XSM6ML Locknut M6 XSM6X16 Screw M6 x 16 XSM6X10 Screw M6 x 10 MED1501 Bracket MED1521 Bracket part1 MED1522 Bracket part2 2020-04-24... - Page 4 Assembler the Alternate: Attendant control (only right side) Move this too the other side, if you assemble the joystick on the left side. Item No. Part Number Description XOC-48110-A1 Joystick MED1316 Plate with pin XSM6X16 Screw M6 x 16 XSM6X35 Screw M6 x 35 XSM6BR Plain Washer 6,4...
- Page 5 Alternative attendant control (only right side) Item No. Part Number Description XSM6TG Thorn Washer 6,4 Xklamma2 XClamp2 XSM6X20 Screw M6 x 20 XSM6BR Plain Washer 6,4 MED1200 Attendant control 2020-04-24...
- Page 6 Åtdragningsmoment / Tightening torque Metriska grovgängor, stål. Metric coarse threads, steel. Gänga / Thread Åtdragningsmoment / Tightening torque 1,2 Nm 3 Nm 6 Nm 10 Nm 25 Nm 50 Nm 85 Nm Navhylsor. Sleeves. Gänga / Thread Åtdragningsmoment / Tightening torque M16x1 30 Nm M18x1...
