Assembly instructions for HD 600
MED3031
Remember that you have to mount the parking brake on the
wheelchair and that the wheelchair's total width increases by 71 mm.

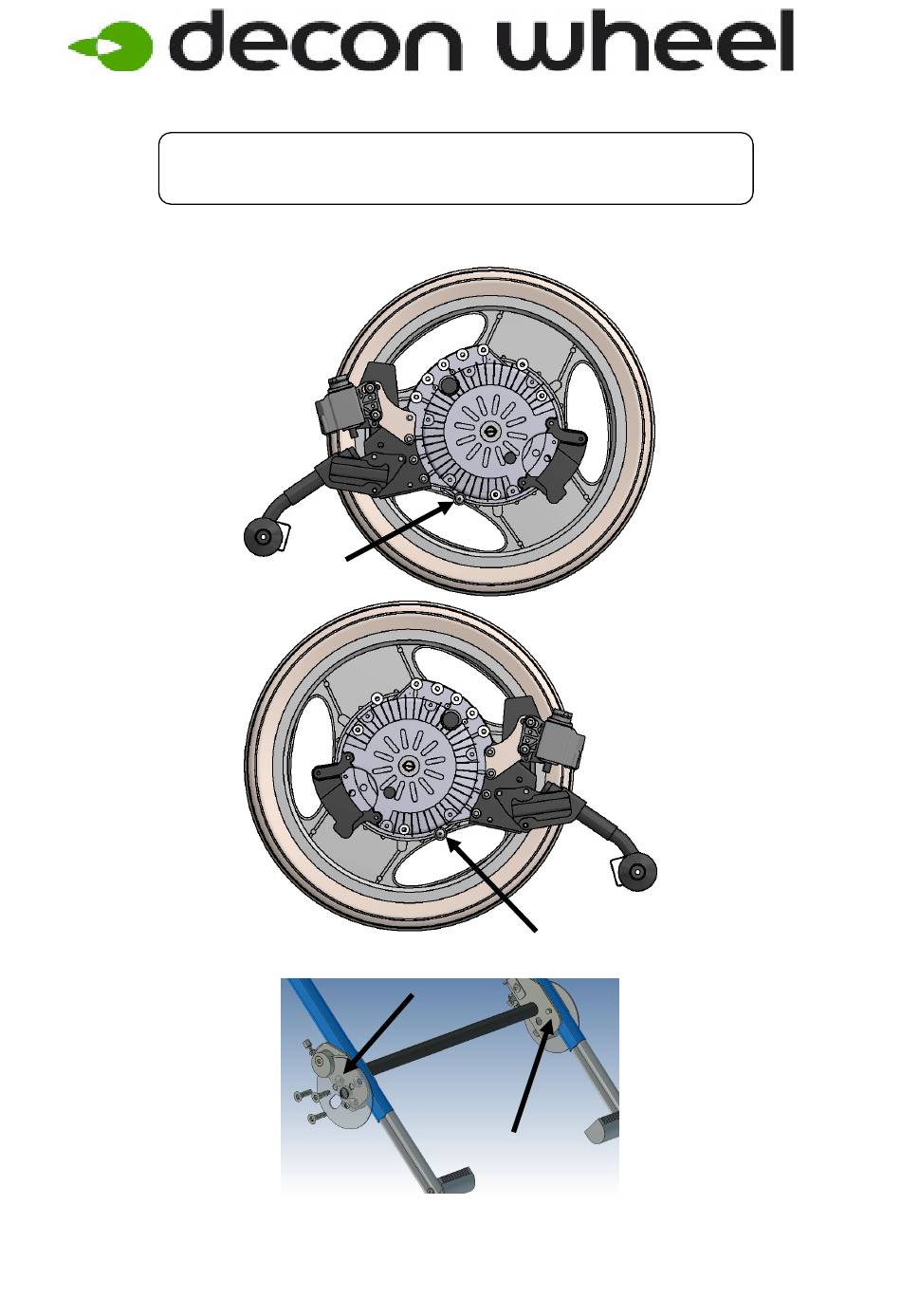

1. Remove wheels on both sides.
2. Check the correct placement for the stop pin.
3. Remove bracket and disk, but the tube will be recycled.
2019-10-04
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Decon wheel HD 600
Summary of Contents for Decon wheel HD 600
- Page 1 Assembly instructions for HD 600 MED3031 Remember that you have to mount the parking brake on the wheelchair and that the wheelchair's total width increases by 71 mm. 1. Remove wheels on both sides. 2. Check the correct placement for the stop pin.
- Page 2 4. Assembly the plate (right side) according to picture. 5. Parts pair mountingset: Item No Part Number Description MED3031R Right Bracket MC6SM8X35 Screw M8 x 35 XSM8X16 Screw M8 x 16 Rounded head HW069 Hubsleever M16x1/12,7 405239 Nordlock washer XSM16M Nut M16 XSM8ML Locknut M8...
- Page 3 MED1356 Attendant control with Joystick controller Item No. Part Number Description MED1317 Bracket XSM6X35 Screw M6 x 35 XSM6X16 Screw M6 x 16 XSM6BR Plain Washer M6 XSM6ML Locknut M6 MED1316 Plate with pin XA2-2612K-00 Clamp with thread XA2-2612E-00 Clamp with hole 8.
- Page 4 Attendant control with attendant controller (only right side) For the attendant control unit, you need these parts. Item No Part Number Description XSM6BRTG Torn washer X-Klamma2 Clamp 22 mm XSM6XBR Plain Washer MC6SM6X20 Screw M6 x 20 Joystick Assembly MED1408 10.
